DEVICE: ECHOSOUNDER
BRAND: JMC
TYPE: F-3000

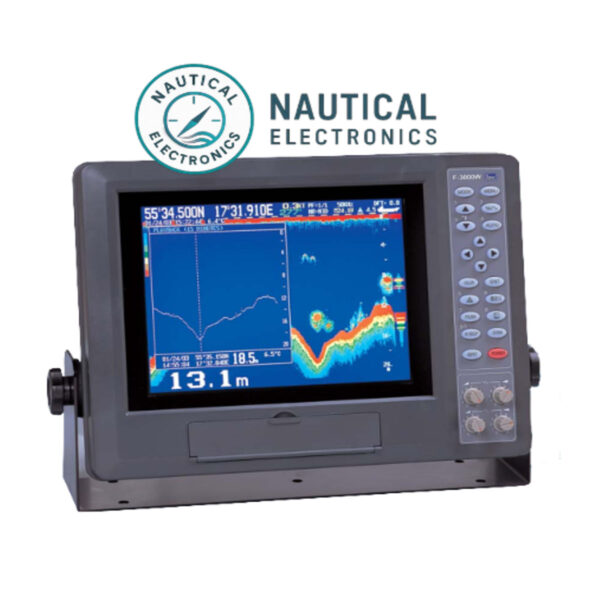

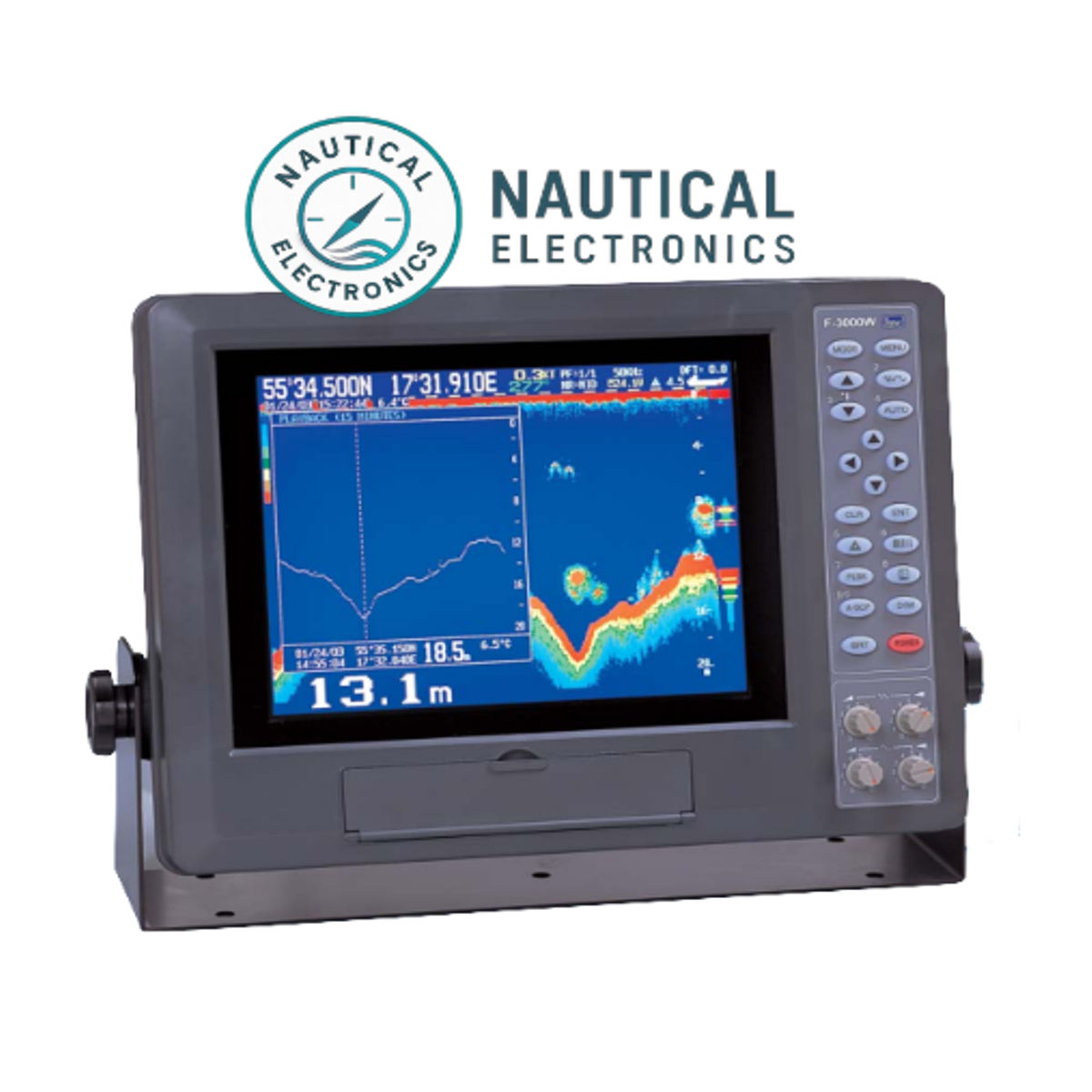

JMC F-3000 Navigation Echosounder
Overview
The JMC F-3000 is a dual-frequency marine echo sounder tailored for navigation across a wide range of vessel types. Equipped with a bright 10.4″ VGA color display and compliant with IMO Resolution MSC.74(69), it meets rigorous maritime standards. It’s also approved by the Russian Maritime Register of Shipping, confirming its reliability and safety credentials.
Key Features
-
Dual-Frequency Operation
Offers selectable frequencies such as 50/200 kHz, 38/100 kHz, or specialized transducers (e.g., 135 kHz), providing versatility across shallow and deep waters. -
High-Resolution Display
10.4″ analog RGB TFT-LCD, VGA resolution (640×480), high brightness, and customizable background colors. -
Extensive Data Storage
Retains up to 24 hours of depth data in non-volatile memory, plus 10 minutes of live echogram recording, ideal for post-analysis. -
Wide Ranges and Auto Adjustments
Offers depth measurement from 5 to 1000 meters with automatic range selection, power control, and adjustable image feed rates (1:1 to 1:4 and freeze). -
Advanced Echo Processing
Features noise reduction (3 levels), echo threshold filtering (up to 5 levels), TVG/STC smoothing, and dynamic range control for crisp and clear echo visualization. -
Safety Alarms and Sensor Support
Includes depth and power loss alarms. Supports optional temperature sensors (T-200, T-300, T-400) and integrates latitude/longitude and water temperature input. -
System Integration & Printing
Supports NMEA-0183 interfaces (via RS-232C or RS-422), printer output for monochrome echogram printouts, and compatibility with external sensors. -
Flexible Power Options
Operates on 10–40 V DC (approx. 15W) or 110–220 V AC (approx. 20W), making it adaptable to various shipboard power systems.

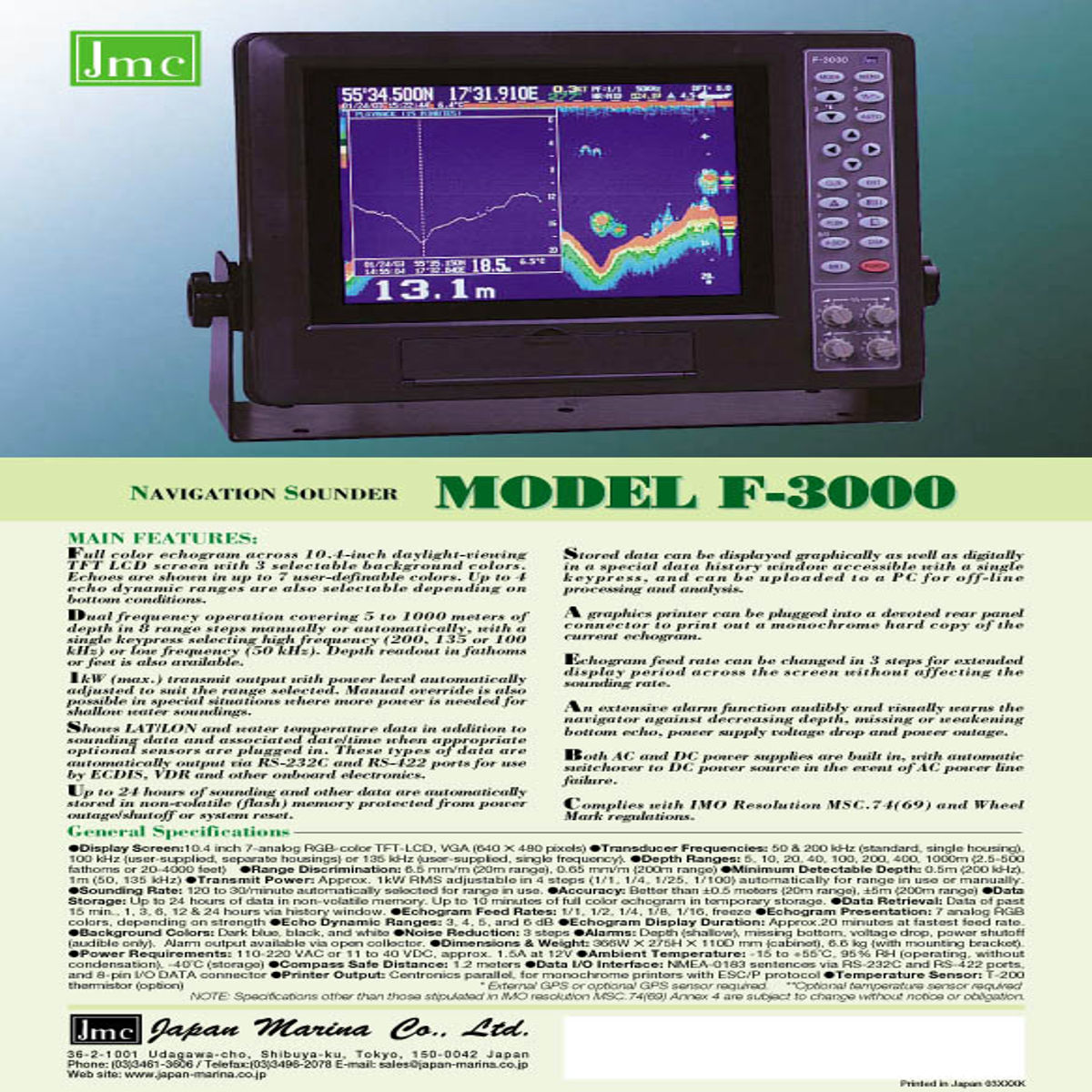

Specifications Summary
| Feature | Specification Summary |
|---|---|
| Display | 10.4″ VGA RGB TFT-LCD, 640×480 resolution |
| Frequencies | Dual: 50/200 kHz; Optional: 38/100 kHz or 135 kHz |
| Output Power | Up to 1 kW RMS (adjustable) |
| Depth Range | 5 to 1000 meters |
| Storage Capability | 24-hour data, 10-minute echogram recording |
| Echo Processing Features | Noise reduction, echo threshold, dynamic range, TVG/STC smoothing |
| Alarm Functions | Shallow depth, power loss |
| Interface Options | NMEA-0183 (RS-232C/422), printer output |
| Temperature Sensor Support | T-200, T-300, T-400 (optional) |
| Power Input | 10–40 V DC (~15 W) or 110–220 V AC (~20 W) |
| Compliance | IMO MSC.74(69), RMRS approved |
| Dimensions / Weight | ~366 × 275 × 110 mm; ~6.6 kg (with bracket) |
Applications
Ideal for navigation and depth monitoring across various platforms—commercial vessels, fishing boats, off-shore installations, and research vessels. Its dual-frequency capability, extensive storage, and IMO compliance make it a versatile and dependable tool for safe maritime operations.
