DEVICE: GYROCOMPASS
BRAND: SPERRY MARINE / C-PLATH
TYPE: NAVIGAT X MK1

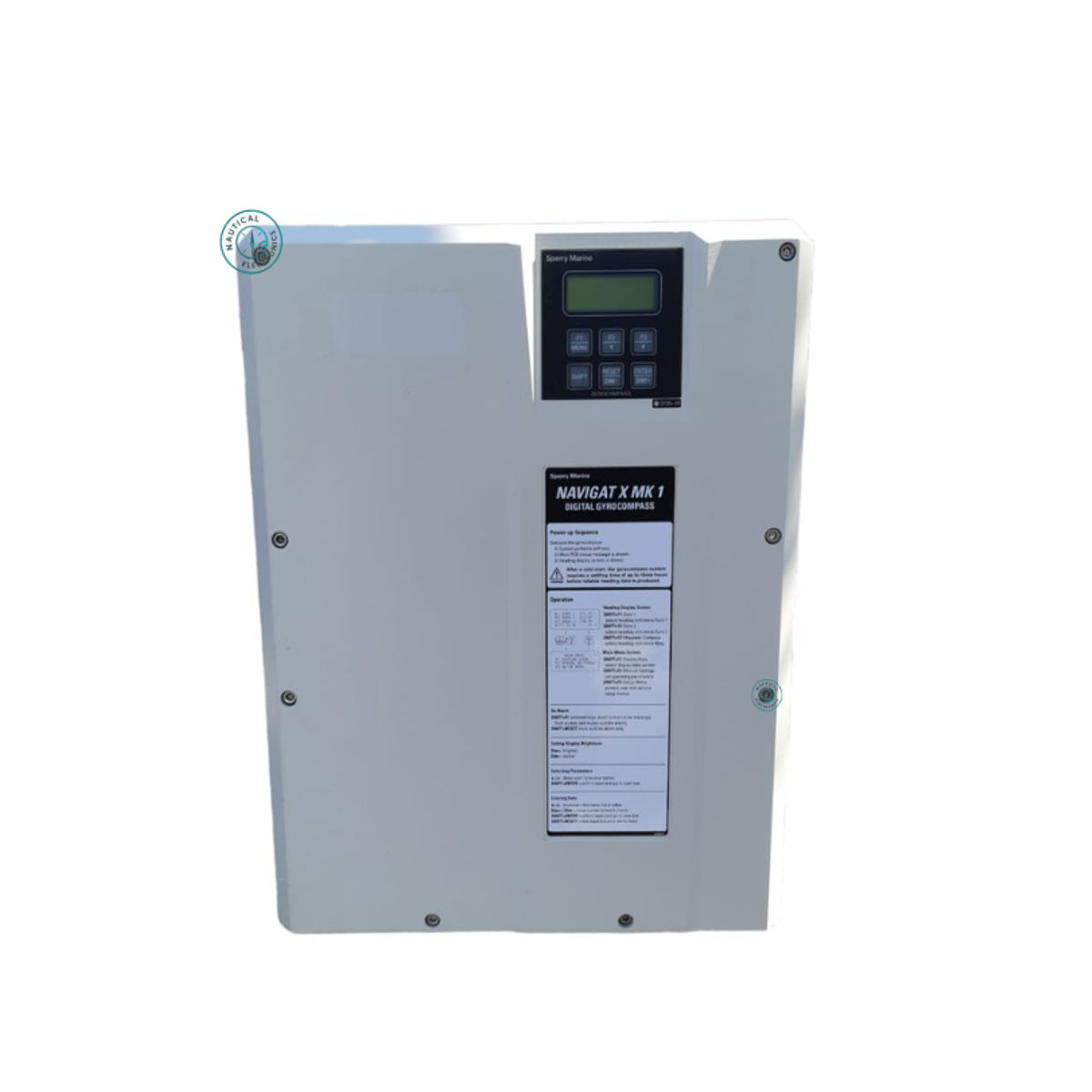

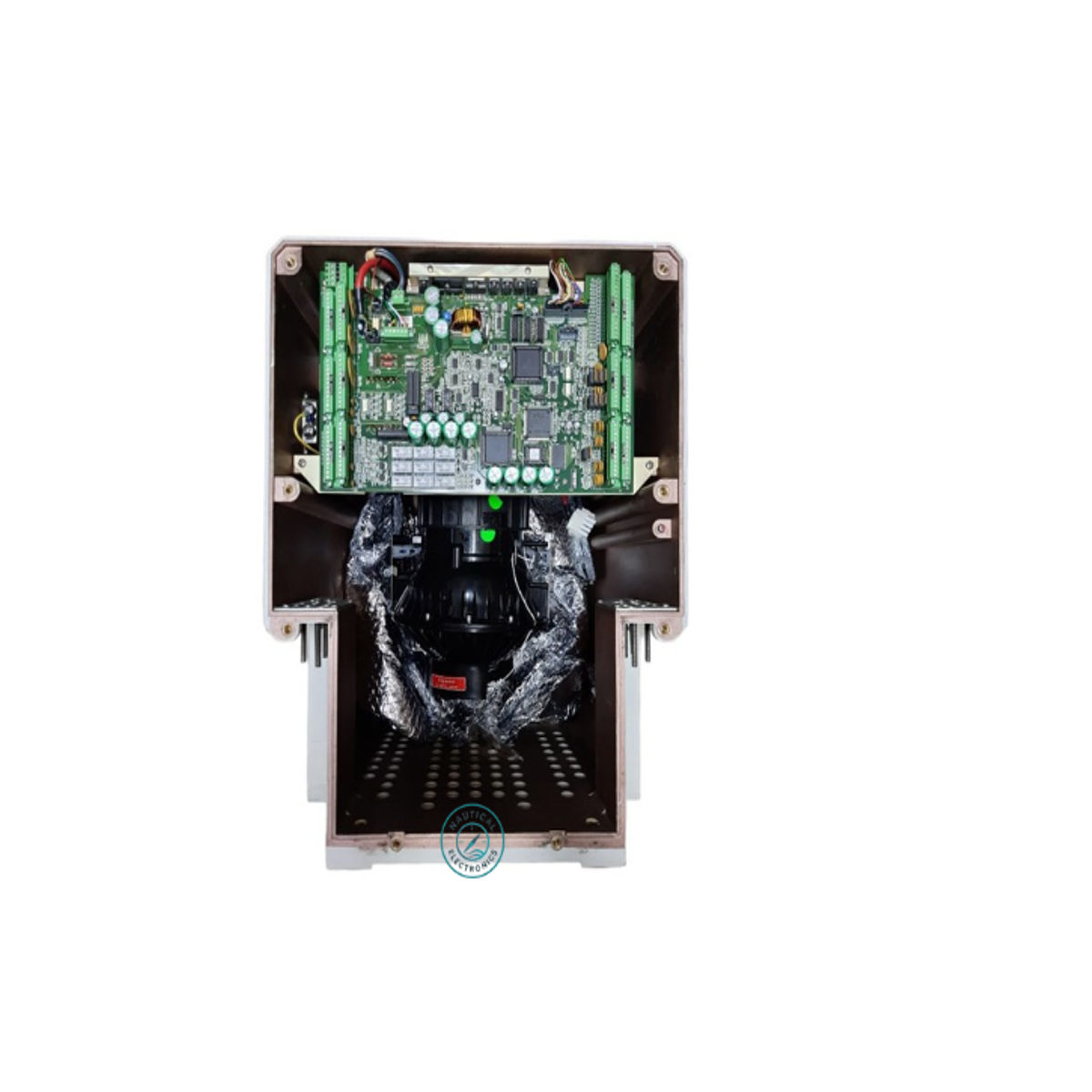

Sperry Marine NAVIGAT X Mk 1 / SR-180 Mk 1 Gyrocompass
Overview
The Sperry Marine NAVIGAT X Mk 1 (SR-180 Mk 1) is a microprocessor-controlled gyrocompass system featuring integrated automatic north speed error correction. Approved by the German Federal Maritime and Hydrographic Agency (BSH), it complies with IMO resolutions A.424 (IX) and A.574 (14), DNV-W1, and ISO standard 8728. For high-speed craft, an optimized version meets IMO resolution A.821 (19) – HSC.

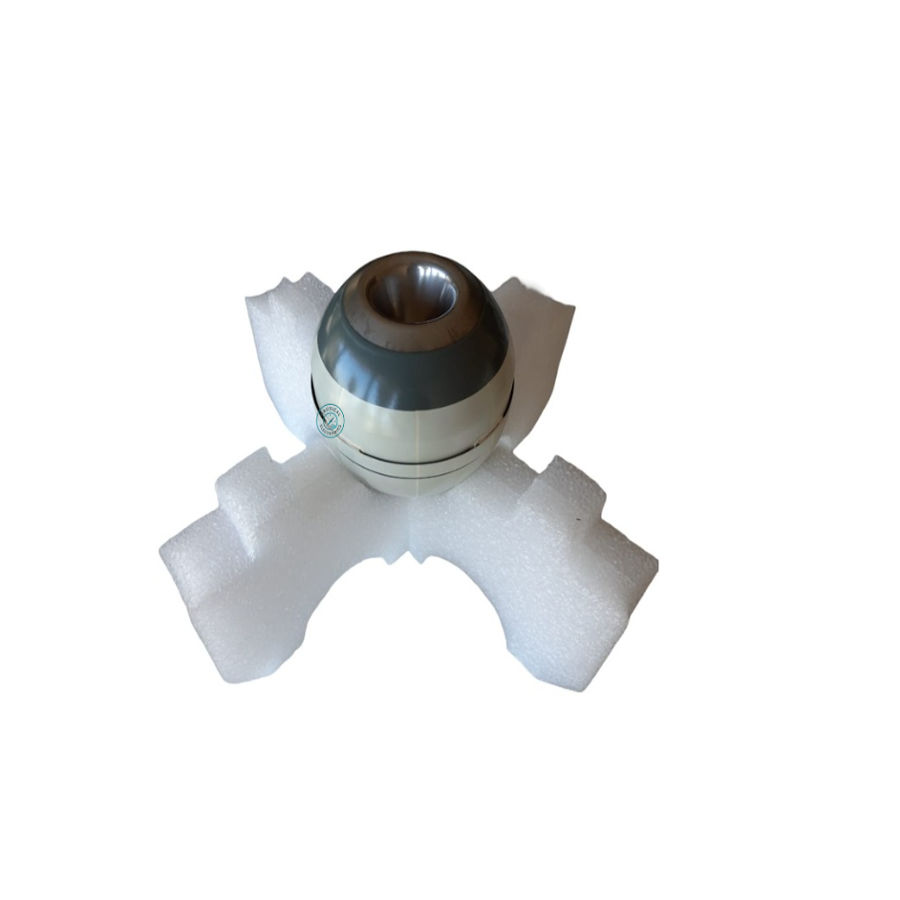

C. PLATH’s unique buoyancy-supported gyrosphere ensures heading stability even during short power interruptions. After a 3-minute power loss, deviation is limited to within 2°, and the unit quickly returns to the correct heading without the usual long settling time. The twin-rotor and liquid damping design virtually eliminate latitude error.
The high-speed follow-up system (>100°/sec) provides precise heading and rate-of-turn measurements under all conditions. Integrated TMC (magnetic compass transmission) and multiple input interfaces allow connection to a second gyrocompass, speed log, position receiver, and rudder angle feedback units.
Key Features
-
Type-approved & IMO compliant for commercial and high-speed craft
-
Fast recovery after short power failures (<2° deviation)
-
High-speed follow-up system for accurate measurements (>100°/sec)
-
Dual redundancy for CAN bus connections
-
Multiple outputs: 12 serial data channels, RS-422, NMEA, analogue rate of turn, and printer interface
-
Low-weight polyurethane housing for easy bridge installation
-
Optional remote control/display unit and compass monitor
Technical Specifications
Performance
-
Heading display: 4-digit
-
Follow-up speed: >100°/sec
-
Mean settling time: <3 h
-
Roll & pitch freedom: ±40°
-
Settle point error: <0.1° sec lat (static), <0.4° sec lat (dynamic)
-
Power outage tolerance: <2° deviation after 3 min outage
Power Supply
-
115/230V AC ±10% (automatic switchover to 24V DC emergency supply)
-
Power consumption:
-
Start-up: 80W DC / 125VA AC
-
Operation: 45W DC / 75VA AC
-
Repeaters: 7W DC or 7VA AC each
-
-
GMDSS-compliant emergency switchover
Environmental
-
Operating temperature: -10°C to +55°C
-
Storage temperature: -25°C to +70°C (without fluid)
-
Protection grade: IP23
Dimensions & Weight
-
Main unit: 404 × 520 × 420 mm
-
Control unit front plate: 96 × 96 mm
-
Weight: 25 kg
Inputs & Outputs
Inputs:
-
Magnetic heading: Fluxgate, Sin/Cos, electronic compass, NMEA 0183, or PLATH-format
-
Secondary gyro heading: NMEA 0183, PLATH-format, Lehmkuhl LR 20/40
-
Position: NMEA 0183
-
Speed: NMEA 0183 or 200 pulses/nm
-
Rudder angles: 2 analogue feedback inputs
-
Steering mode, heading reference, and alarms via selector switches
Outputs:
-
12 repeater outputs (heading, rate of turn, status) with 24V DC power
-
RS-422 & NMEA 0183 (standard, fast, and superfast)
-
6-step/° outputs (24V DC)
-
Analogue rate-of-turn output
-
Voyage data printer interface
Availability & Service
We supply the Sperry Marine NAVIGAT X Mk 1 Gyrocompass worldwide and provide full servicing at all Turkish ports. Contact us for sales, spare parts, and technical support.
