C-Plath Sperry Marine Gyrocompass Navigat X MKII

DEVICE: GYROCOMPASS

BRAND: SPERRY MARINE / C-PLATH

TYPE: NAVIGAT X MK2

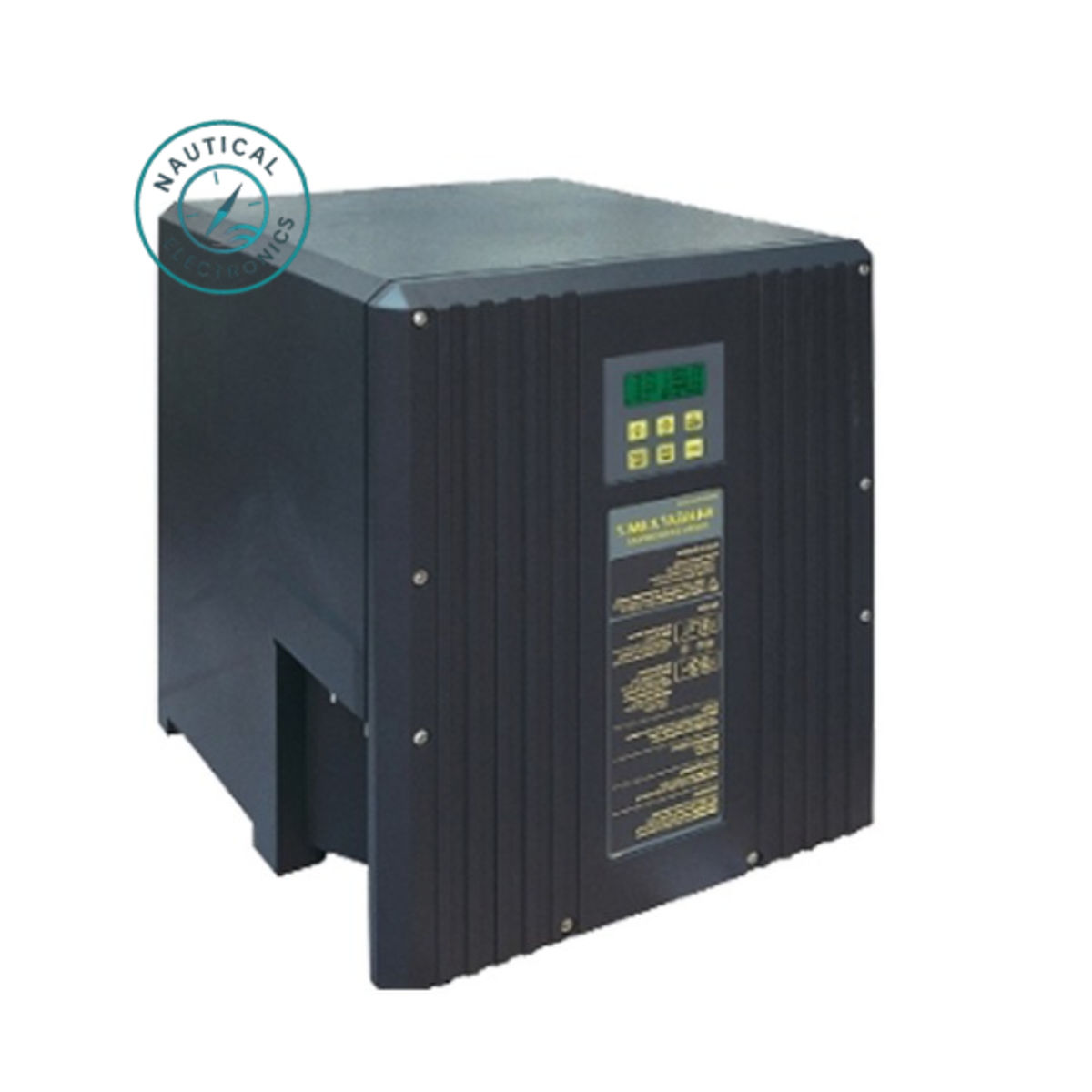

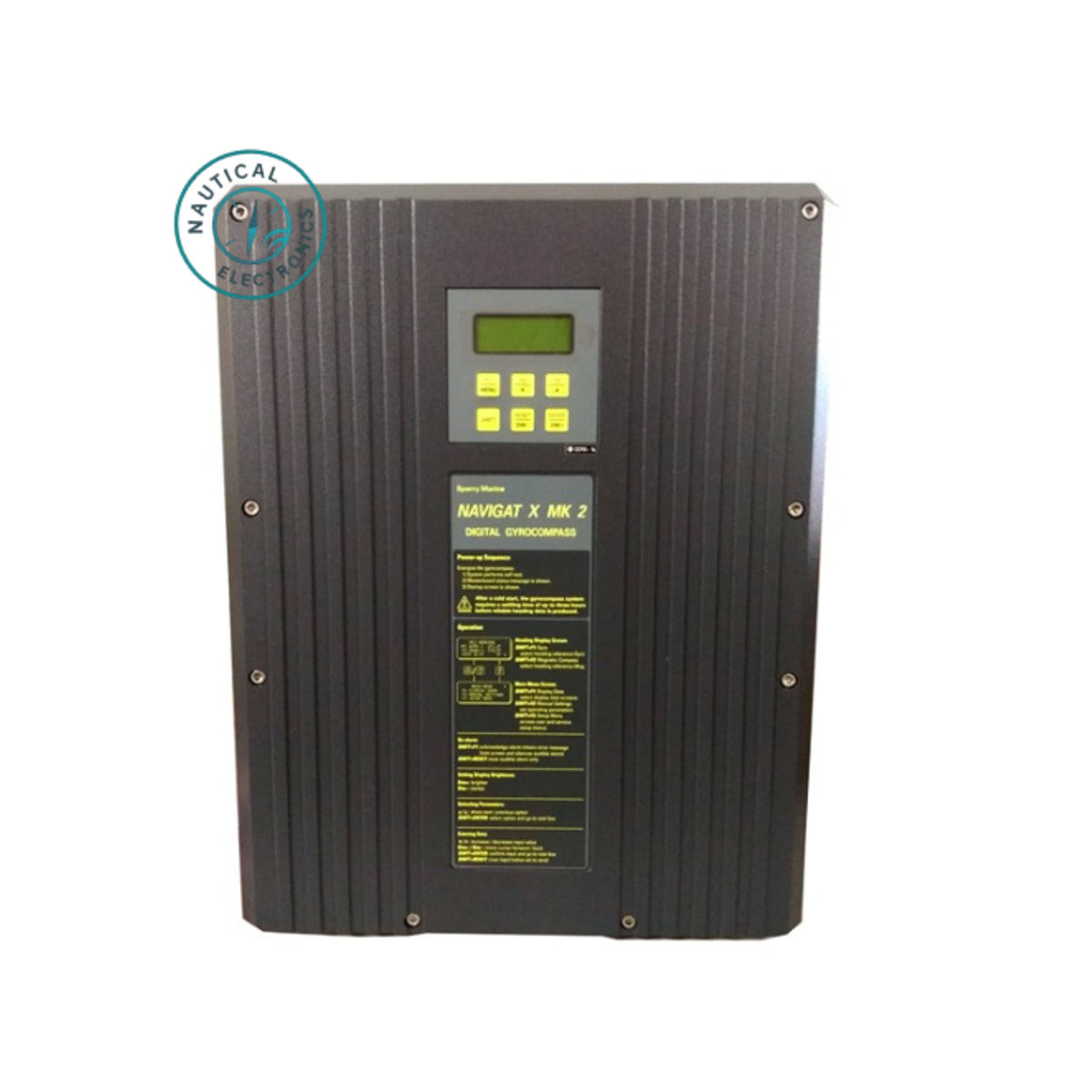

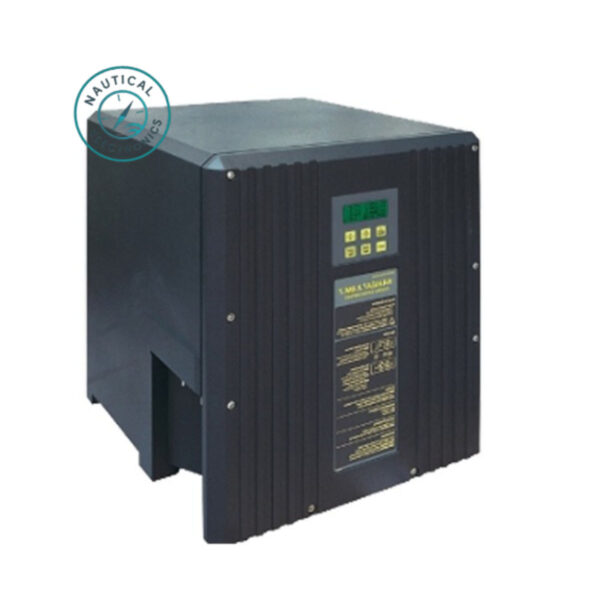

SPERRY MARINE NAVIGAT X MK2 GYROCOMPASS

Description & Key Features
The NAVIGAT X MK2 is a microprocessor-controlled gyrocompass system with integrated automatic North speed error correction. Its single-unit design, housed in a durable polyurethane hard foam casing, allows installation on any bridge. An optional remote operating unit can also be installed if required.

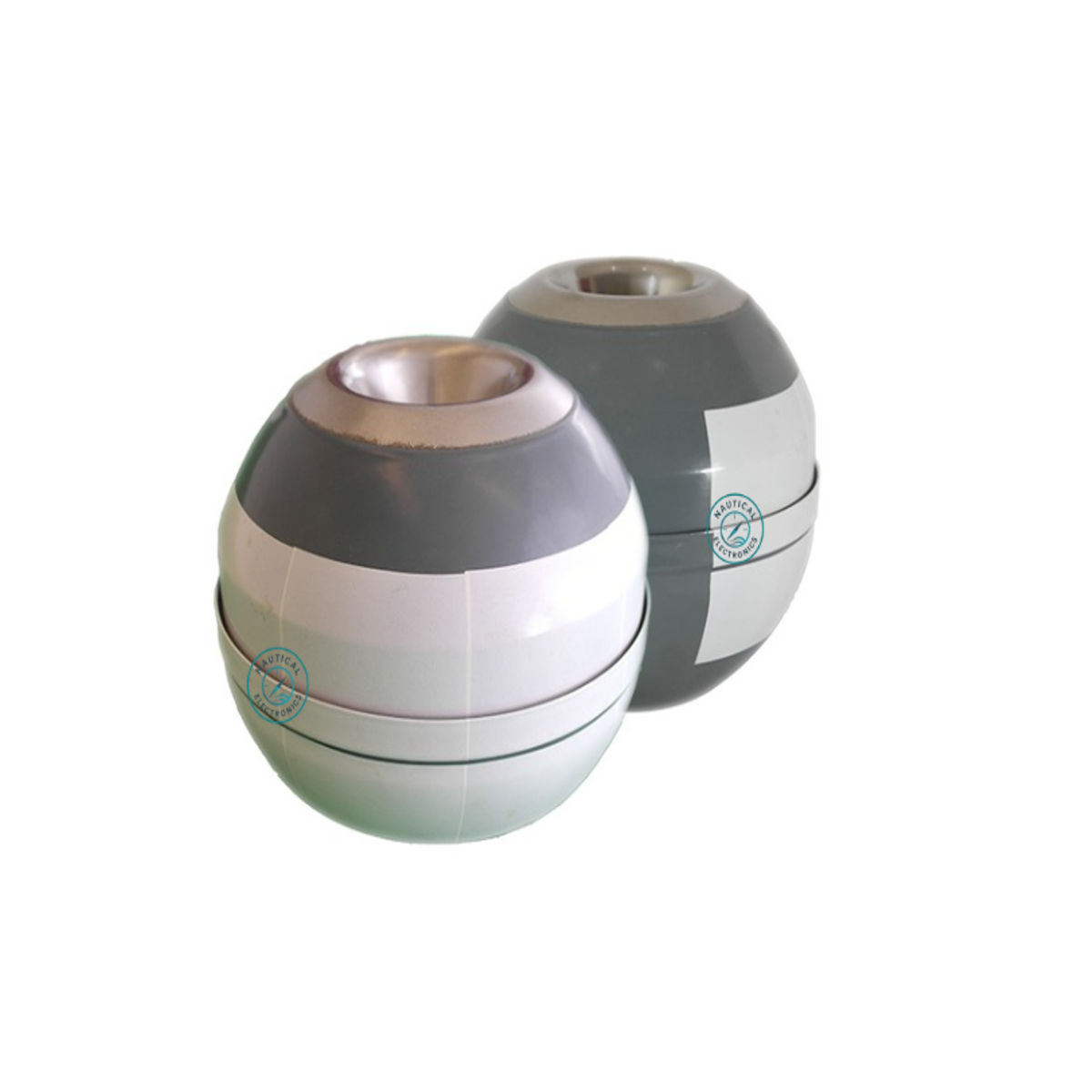

A unique buoyancy-supported gyrosphere ensures North stabilization during short power failures. For example, after a three-minute power loss, the maximum deviation is under 2°. Once power is restored, the system quickly returns to the correct heading. Twin rotors combined with liquid damping effectively eliminate latitude errors.

Heading is measured as a 13-bit absolute value via a digital shaft encoder. High-speed follow-up (up to 100°/s) ensures accurate heading and rate of turn data under all conditions. Integrated monitoring of power supply, gyroscope current, and follow-up system guarantees reliable operation.

Data & Signal Interfaces

• Input interfaces: magnetic compass (fluxgate or electronic), speed log, position receiver

• Outputs: 4 serial data outputs to analog/digital repeaters, 2 RS422 sensor data outputs, Fast and SuperFast interfaces (adjustable baud rate up to 38,400), Furuno AD10 heading output, 6 step/0 heading output, and analog rate of turn

• One sensor output can be used for graphical heading printouts with NAVIPRINT

• Compatible with multi-compass setups using NAVITWIN III Compass Monitor and Switch-Over Unit

Technical Specifications

• Heading Display: 4-digit

• Max Follow-Up Speed: 100°/s

• Mean Settling Time: < 3 h

• Roll & Pitch Freedom: ±40°

Accuracy

• Linear mean settle point error: < 0.1° sec lat

• Static error: < 0.1° sec lat

• Dynamic error: < 0.4° sec lat

• Deviation after 3 min power interruption: < 2°

Environmental & Power Requirements

• Operating Temperature: -10 to +55 °C

• Storage Temperature: -25 to +70 °C (without supporting fluid)

• Protection Grade: IP 23 to DIN 40050

• Compliance: IEC 60945

• Power Supply: Main 24 VDC (18-36 V), backup 24 VDC (18-36 V) with automatic switch-over

• Max Ripple Content: ±4 Vpp

Power Consumption

• Start-up: 80 W

• Operation: 45 W

• Each analog/digital repeater: 7 W

Dimensions & Weight

• Width: 404 mm

• Height: 520 mm

• Depth: 420 mm

• Weight: 25 kg

Data Outputs

• Repeaters (4x NMEA): gyrocompass heading, magnetic compass heading, rate of turn, heading reference status (24 VDC, max. 7 W each)

• Sensor Data (2x RS422): heading reference, gyro heading, magnetic heading, rate of turn

• RS422 Fast & SuperFast: gyro heading, magnetic heading, rate of turn, heading reference status

• 6-Step Output: active heading, 24 VDC max. 18 W

• AD10 Output: gyro heading

• Analogue Rate of Turn: ±0.1–999.9 mV/°/min, max 10 V, 10 mA

• Navigation Data Printer: active heading graph; date, time, heading reference, steering mode, speed, position

Alarm & Status Outputs

• Potential-free contact closures; max. 30 W, 125V/1A for power failure, general device error, heading difference alarm

Data & Signal Inputs

• Magnetic heading: NMEA 0183, PLATH-format, NAVITWIN III, or NAVIPILOT

• Position: NMEA 0183

• Speed: NMEA 0183 or 200 pulses/nm

• Steering mode: Auto/Manual switch status

• Heading reference ext.: Gyro/Mag switch status

• External alarm acknowledge (mute): switch status

Global Supply & Service
We can supply worldwide and provide service at all Turkish ports. Stay in touch with us for inquiries and support.
