DEVICE: GYROCOMPASS, GYROSPHERE, INSULATOR FLUID
BRAND: SPERRY MARINE
TYPE: NAVIGAT X

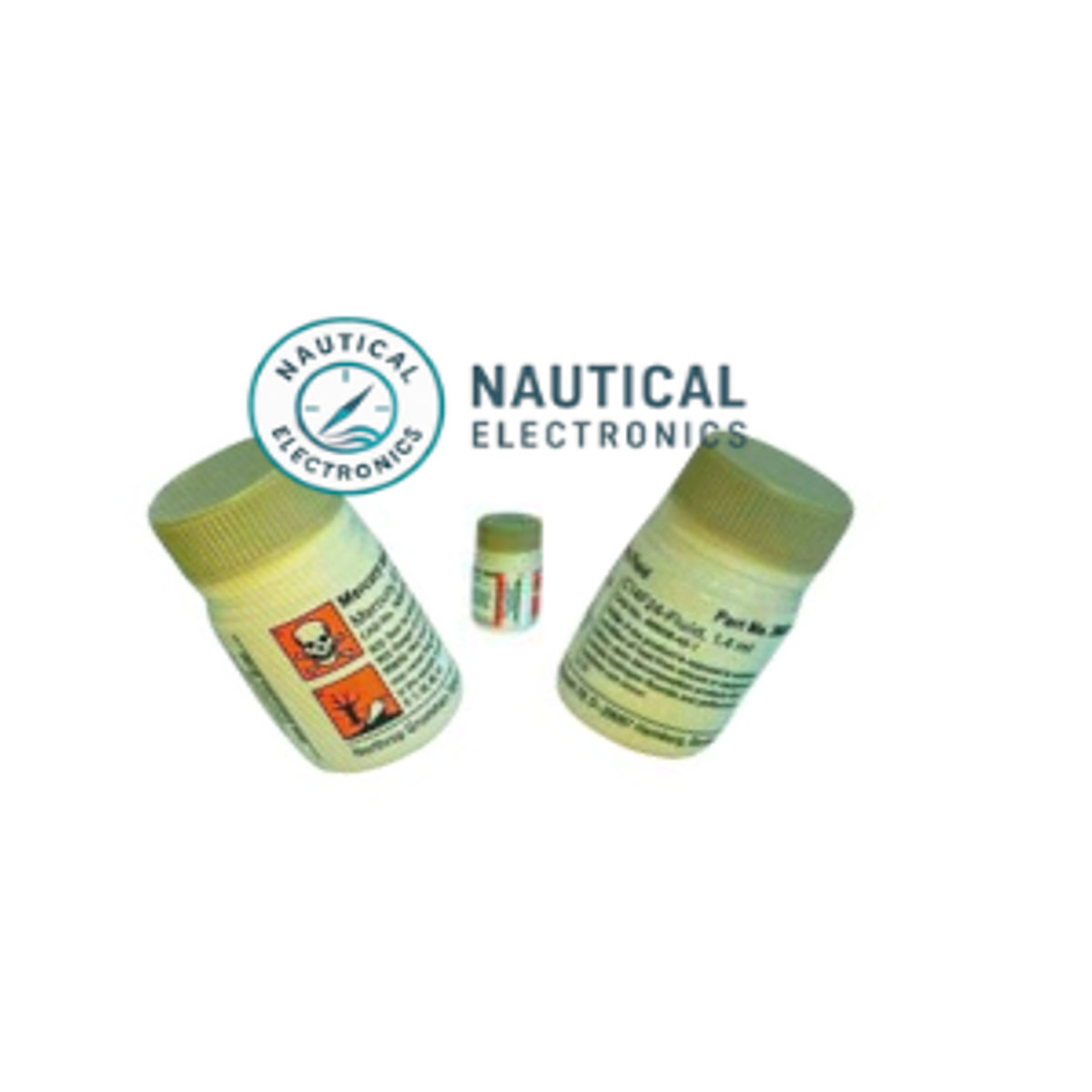

Gyrosphere Insulator Fluid – Sperry Marine NAVIGAT X Series
Overview
This specialized insulator fluid is designed to support the gyrosphere inside the Sperry Marine NAVIGAT X MK1 and MK2 gyrocompass systems. It forms a critical part of the gyro’s liquid-damping mechanism, ensuring accurate and stable heading performance—even during brief power interruptions.
Key Features
-
Essential Damping Mechanism
The fluid enables the gyrosphere’s free flotation within the container, providing liquid-damping that neutralizes oscillations and minimizes latitude errors. -
Annual Maintenance Requirement
The supporting and insulator fluids, along with the gasket set, must be replaced during each annual inspection to maintain system accuracy and avoid malfunction. -
Gyrosphere Lifespan
The gyrosphere module typically remains reliable for up to 5 years, after which a replacement is recommended. -
Overhaul Kit Option
Available as part of an annual overhaul kit that may include supporting liquid, insulator fluid, mercury, and a gasket set for comprehensive maintenance.
Maintenance Note
When the gyrocompass is equipped with an optical solution, do not use this fluid or mercury. The fluid is intended exclusively for navigat X systems requiring liquid support.
Applicability
-
Designed for the NAVIGAT X MK1 and MK2 gyrocompass systems.
-
A critical maintenance component for gyrosphere functionality, precision, and overall reliability.
-
Part Numbers
-
Insulator: V8109PT
-
