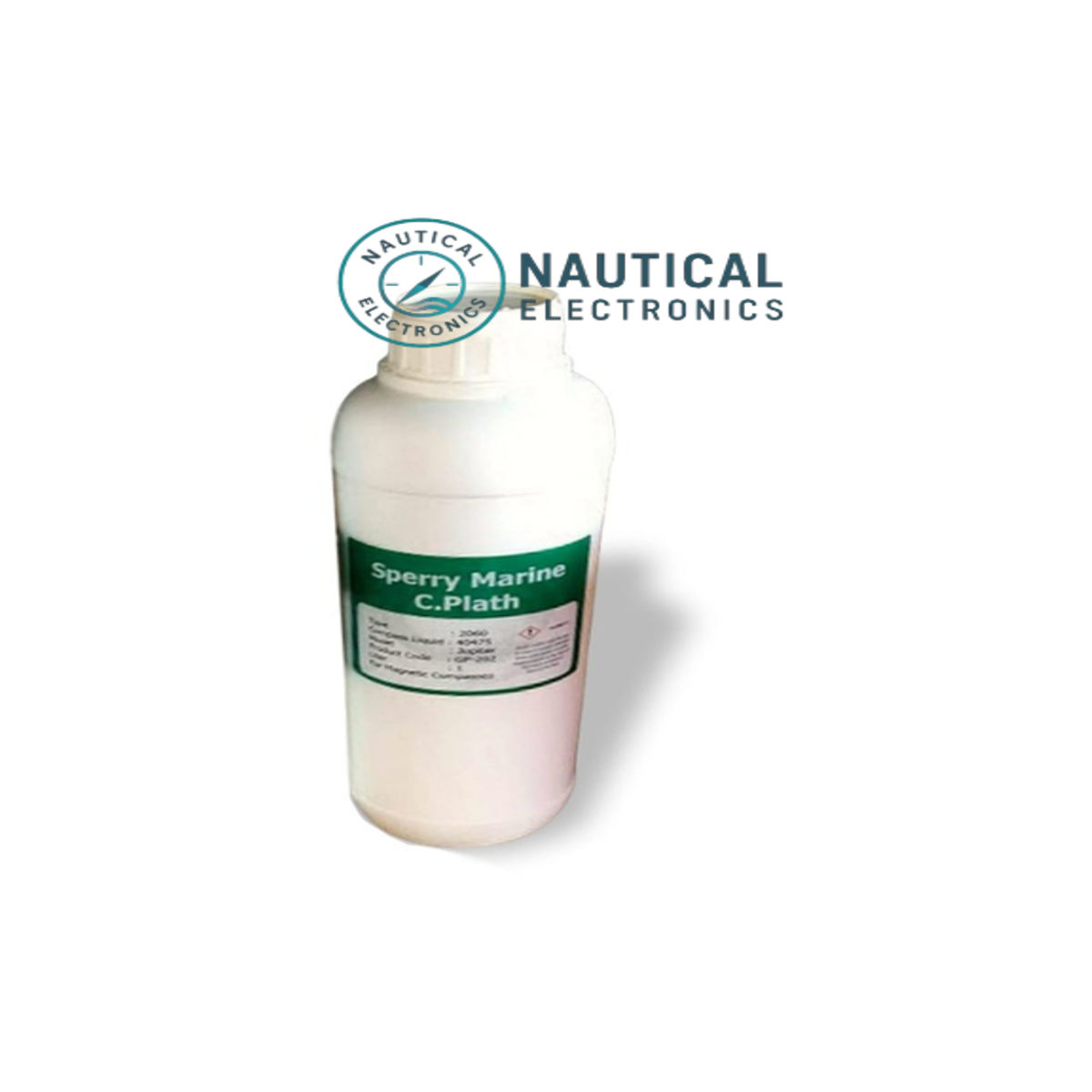

DEVICE: MAGNETIC COMPASS, LIQUID
BRAND: SPERRY MARINE C-PLATH
TYPE: 2060
Sperry Marine / C. Plath Type 2060 Liquid-Filled Magnetic Compass
Overview
The Type 2060, also known as the Jupiter Magnetic Compass, is a high-quality, Class A marine magnetic compass engineered for precision and reliability. This liquid-damped compass is ideal for steering, bearing, reflector, and overhead use aboard large commercial, naval, or offshore vessels.
Key Features
-
Ocean-Grade Stabilization
Filled with damping fluid to suppress oscillations and provide stable readings even in rough sea conditions. -
High-Visibility Card
Features a 180 mm diameter compass card with clear graduation, typically marked at 1° or 2°, with more prominent marks at 10° or 20°. -
Integrated Deviation Compensation
Offers corrections for quadrantal deviation (using rod magnets), vertical induction (via Flinders bar), and heel error, when installed within compatible binnacles. -
Optional Flux-Gate Output
Available with digital heading output (sine/cosine), which can be transformed into NMEA 0183 sentences (e.g., HDT, HDG) for electronic navigation system integration, with ~0.2° RMS accuracy. -
Robust Construction
Crafted from non-magnetic materials and built to withstand harsh marine environments. Validated to international standards like ISO 449 and approved under the Marine Equipment Directive (MED). -
Versatile Applications
Functions as a reliable steering, bearing, reflector, or overhead compass—commonly mounted in binnacles or bridge consoles.
Benefits
-
Provides a trustworthy backup heading reference for auto-pilot and gyro systems.
-
Enhances navigation reliability, especially in areas where electronic compasses may falter.
-
Allows seamless integration with modern bridge systems for hybrid navigation setups.
