Marine Device : GYROCOMPASS, SUPPORTING LIQUID, DISTILLED WATER, PUMP ROTOR, GASKETS, SMALL PARTS
Manufacturer : RAYTHEON ANSCHUTZ KIEL
Type / Model : STANDARD 22

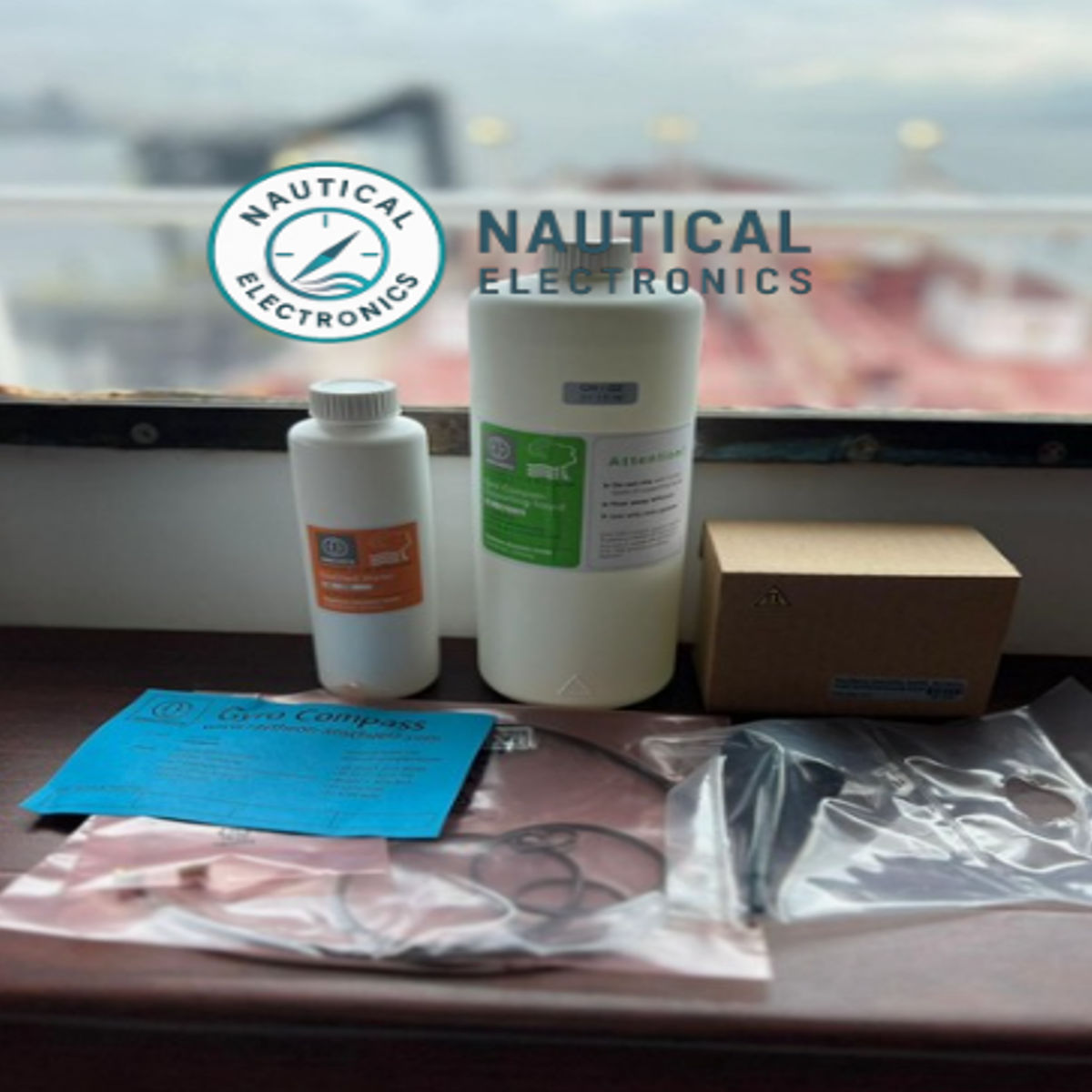

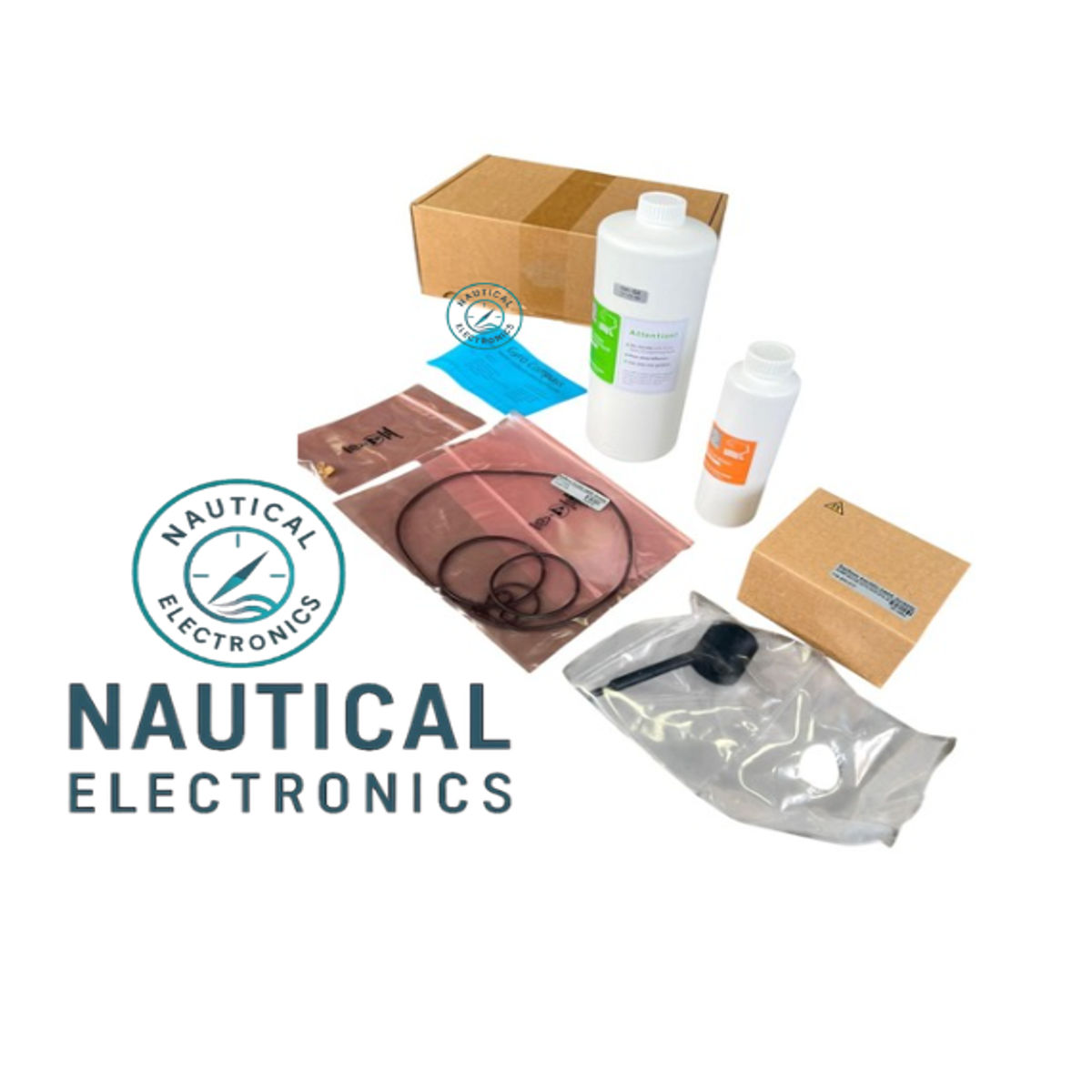

Standard 22 / 22NX Gyrocompass Service Pack – ( 110-233.x19 )
Overview
This service pack is designed for comprehensive maintenance of the Standard 20, Standard 22 and Standard 22NX gyrocompass systems. It contains all critical consumables and spindle-parts required for scheduled inspections (typically at 18-month intervals) and preventive overhaul of the gyrosphere housing and pump assembly.( 110-233.x19 )
What’s Included
-
Supporting Liquid (Part No. 148-162 E01/E02) – 1 piece
-
Distilled Water (Part No. 148-398) – 1 piece
-
Set of Gaskets (Part No. 110-222.X01) – 1 set
-
Pump Rotor (Part No. 110-231.40x) – 1 piece
-
Filler Pipe (Part No. 148-398.00-002) – 1 piece
Key Benefits & Why Use It
-
Ensures your Standard 22/22NX gyrocompass continues to operate within its specification through proper maintenance.
-
Helps prevent drift or malfunction due to aged fluids, worn gaskets, or deteriorated pump rotor components.
-
Suitable for the full range of models: Standard 20, Standard 22 and Standard 22NX.
-
Ships as a compact pack (~2 kg) with all parts pre-selected for the overhaul task, simplifying logistics.
Installation & Service Notes
-
Maintenance should be performed by qualified personnel only, following the manufacturer’s service manual instructions.
-
Typically scheduled at 18-month intervals for continuous-service vessels, or when indicated by alert codes on the compass.
-
After servicing the unit, ensure all seals and fluid levels are checked, the pump rotor operates within current specifications, and the system is restarted and settled before operational heading is trusted.
-
Upon completion, document the maintenance and logs per vessel / class requirements.
Technical Specifications
-
Packaging: Approx. 35 × 30 × 15 cm
-
Net Weight: ~2 kg
-
HS Code (example): 901490 (per advertised source)
