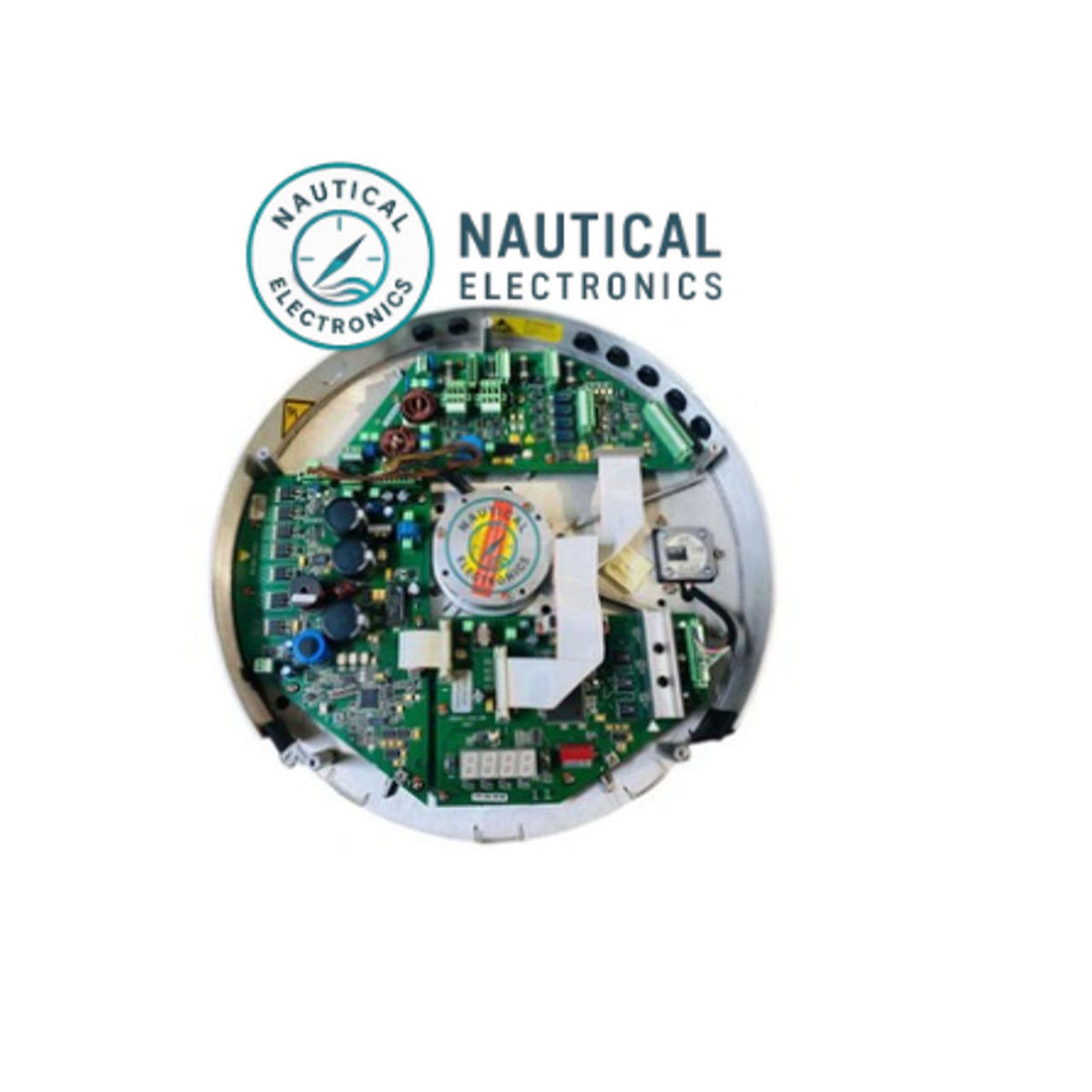

Marine Device : GYROCOMPASS
Manufacturer : RAYTHEON ANSCHUTZ KIEL
Type / Model : STANDARD 22
Part Number : NB05-356.E10 or 110-233.X13

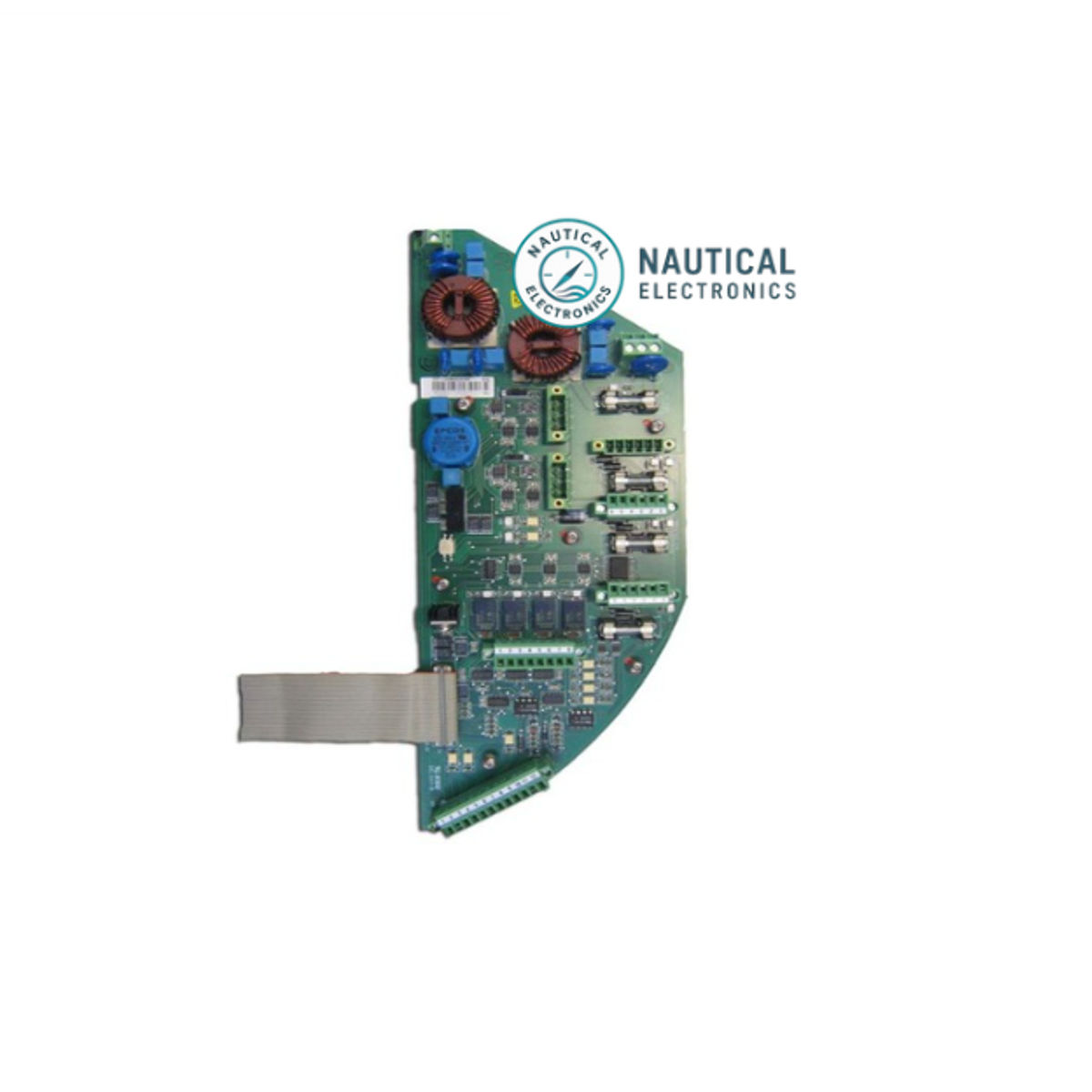

Standard 22 Gyrocompass Connection PCB (NB05-356.E10)
The Connection PCB (NB05-356.E10) is an essential electronic module used within the Raytheon Anschütz Standard 22 Gyrocompass system. It serves as the primary interface board that manages internal signal routing, power distribution, and communication links between the gyrocompass components and external navigation equipment.
Engineered for long-term reliability, the Connection PCB ensures stable data transfer and seamless integration with bridge systems such as autopilot, radar, ECDIS, AIS, VDR, and repeater units. Its robust design allows consistent performance under demanding marine conditions, including vibration, temperature changes, and continuous operation.
Key Features
-
Dedicated connection board for the Standard 22 Gyrocompass
-
Reliable internal signal distribution and communication handling
-
Ensures stable power and data transfer within the gyrocompass system
-
Supports integration with external navigation and control devices
-
Marine-grade design for high durability and long service life
-
Suitable for both replacement and maintenance operations
Applications
-
Commercial cargo vessels
-
Tankers and bulk carriers
-
Offshore support and workboats
-
Passenger ferries and cruise vessels
-
Any vessel equipped with the Standard 22 system
