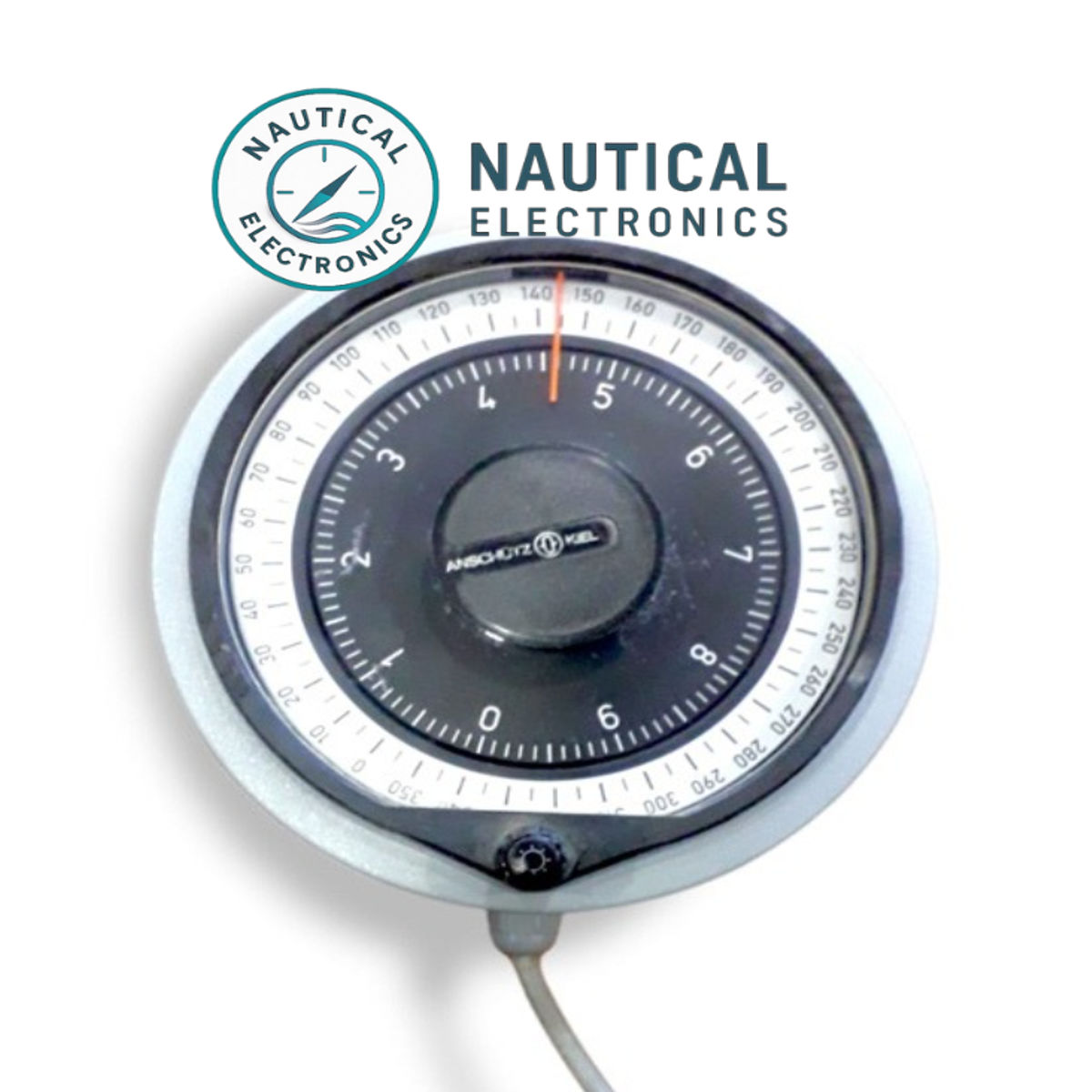

Anschutz Kiel 133-302 Tochterkompass (Repeater Compass)
Overview
The Anschutz Kiel 133-302, also known as the Tochterkompass Repeater, is a precision marine gyrocompass repeater designed to replicate heading information from the main gyrocompass system. It interfaces via analog synchro signals (R1, R2, S1, S2, S3) to provide accurate heading data in secondary navigation stations.
Key Features
-
Analog Synchro Input
Operates on standard analog synchro gyro signals—R1, R2, S1, S2, and S3—for seamless integration with Anschutz gyro systems. -
Compact Heading Display
Features a 360° compass card for intuitive visual reference, typically flush-mounted for bridge visibility. -
Marine-Grade Construction
Built to withstand maritime operational demands, ensuring long-term durability and accuracy. -
Reliable Heading Duplication
Enables multiple bridge stations or remote panels to access real-time heading data derived from the main gyrocompass.
Technical Snapshot
| Specification | Detail |
|---|---|
| Heading Input | Analog Synchro (R1, R2, S1, S2, S3) |
| Display Type | 360° analog compass dial |
| Mounting Style | Typically flush-mounted in console areas |
| Weight | Approximately 2.78 kg |
| Origin | Germany — manufactured under Anschütz, formerly part of Raytheon Anschütz |
Applications
-
Ideal for adding heading visibility to remote bridge or secondary control stations.
-
Relays gyro heading duplication in modern and traditional bridge layouts.
-
Supports redundancy and visibility across large or multi-station vessel operations.
