DEVICE: GYROCOMPASS
BRAND: TOKIMEC
TYPE: TG-5000

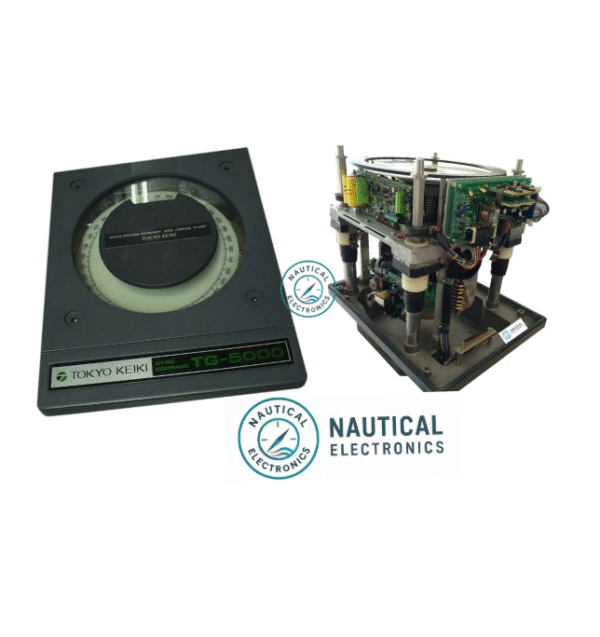

Tokimec TG-5000 Gyrocompass
Overview
The Tokimec TG-5000 is a state-of-the-art gyrocompass developed by Tokyo Keiki (Tokimec), succeeding earlier models such as the Sperry-type MK.14, MK-EN, MK-ES, and TG-100. Incorporating advanced engineering and precision manufacturing, it represents Tokyo Keiki’s most refined gyrocompass offering.
Design Highlights
-
Suspension Wire Floating System
Utilizes a suspension wire method to support the gyroscope, significantly enhancing heading accuracy. -
Precision Electrical Pick-Offs
Equipped with electrical pick-off devices adjacent to the gyroscope, improving signal fidelity and precision. -
Impact-Resilient Construction
The sensitive element’s support plate is mounted on four shock absorbers to mitigate vibration and impact from vessel movement. -
Automatic Emergency Power Switching
In case of power loss, the gyrocompass seamlessly switches to a 24 V DC backup, ensuring uninterrupted operation. -
Speed-Error Compensation
Corrections for speed-related heading errors are applied automatically—the master and repeater units are synchronized for accurate reading.
Operational Advantages
-
Reliable Marine Navigation
Offers high-precision performance in demanding marine environments, benefiting commercial and offshore vessels. -
Low Maintenance & High Durability
Engineered for long-life performance with minimal servicing requirements, thanks to its advanced suspension and dampening features. -
Seamless Data Integration
Supports all major navigational systems with accurate and dependable heading data distribution.
Applications
-
Merchant & Offshore Vessels
An excellent choice for vessels requiring consistent, accurate heading references for navigation and automation. -
Retrofits & Upgrades
Ideal for bridge modernizations where space-saving, high-performance gyrocompass solutions are needed.
