DEVICE: GYROCOMPASS
BRAND: YOKOGAWA / YDK
TYPE: CMZ-900 CONTAINER / OUTER SPHERE UNIT

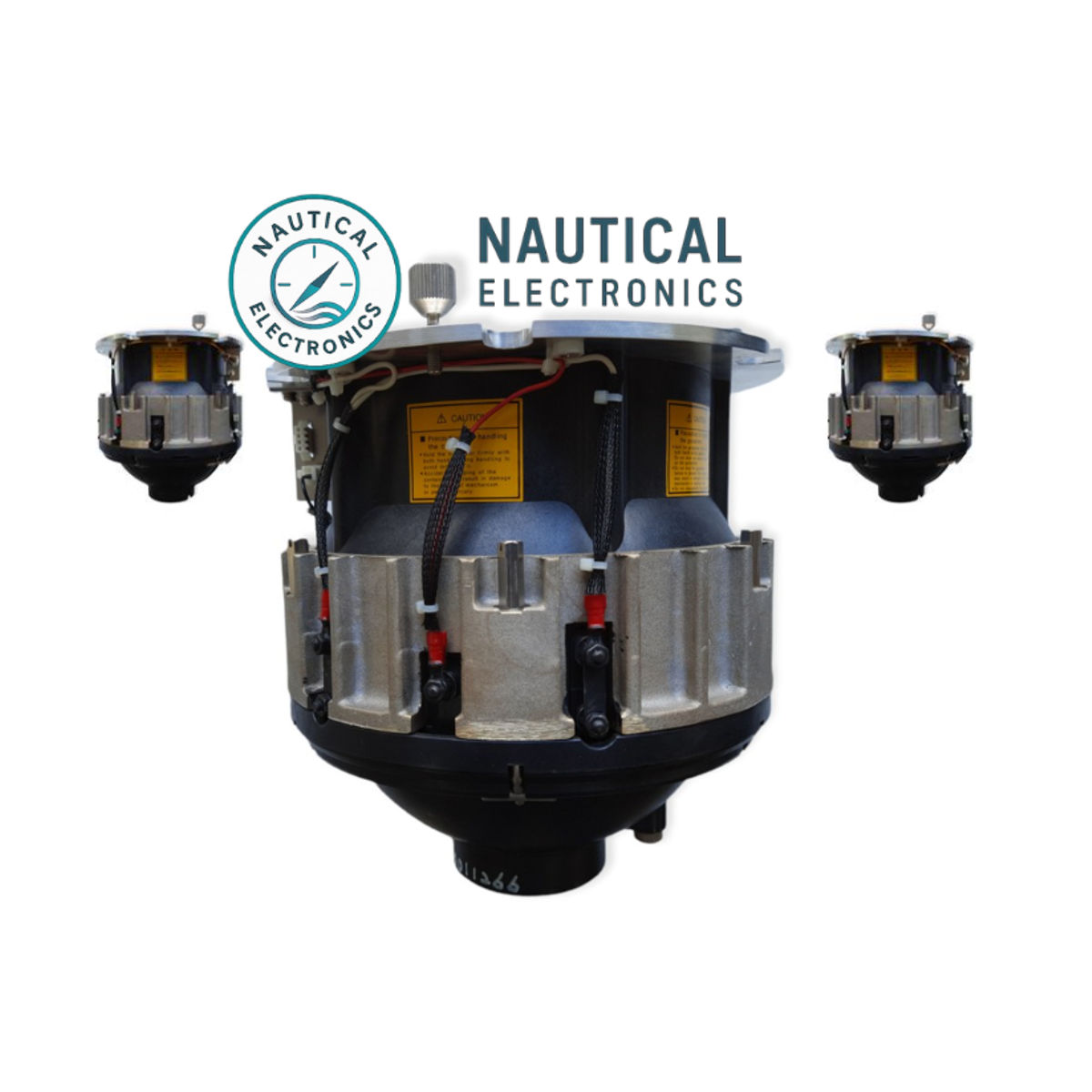

Yokogawa CMZ-900 Gyrocompass Outer Container (Outer Sphere)
Overview
The Outer Container (Outer Sphere) serves as the essential protective housing for the gyrosphere within the CMZ-900 gyrocompass system. Its role is critical: to maintain internal purity, ensure structural integrity, and provide easy access for maintenance or emergency replacement.
Key Features
-
Secure Gyrosphere Enclosure
Protects the sensitive gyrosphere and internal components; a cracked or compromised container must be replaced promptly to prevent performance degradation. -
Easy Maintenance Design

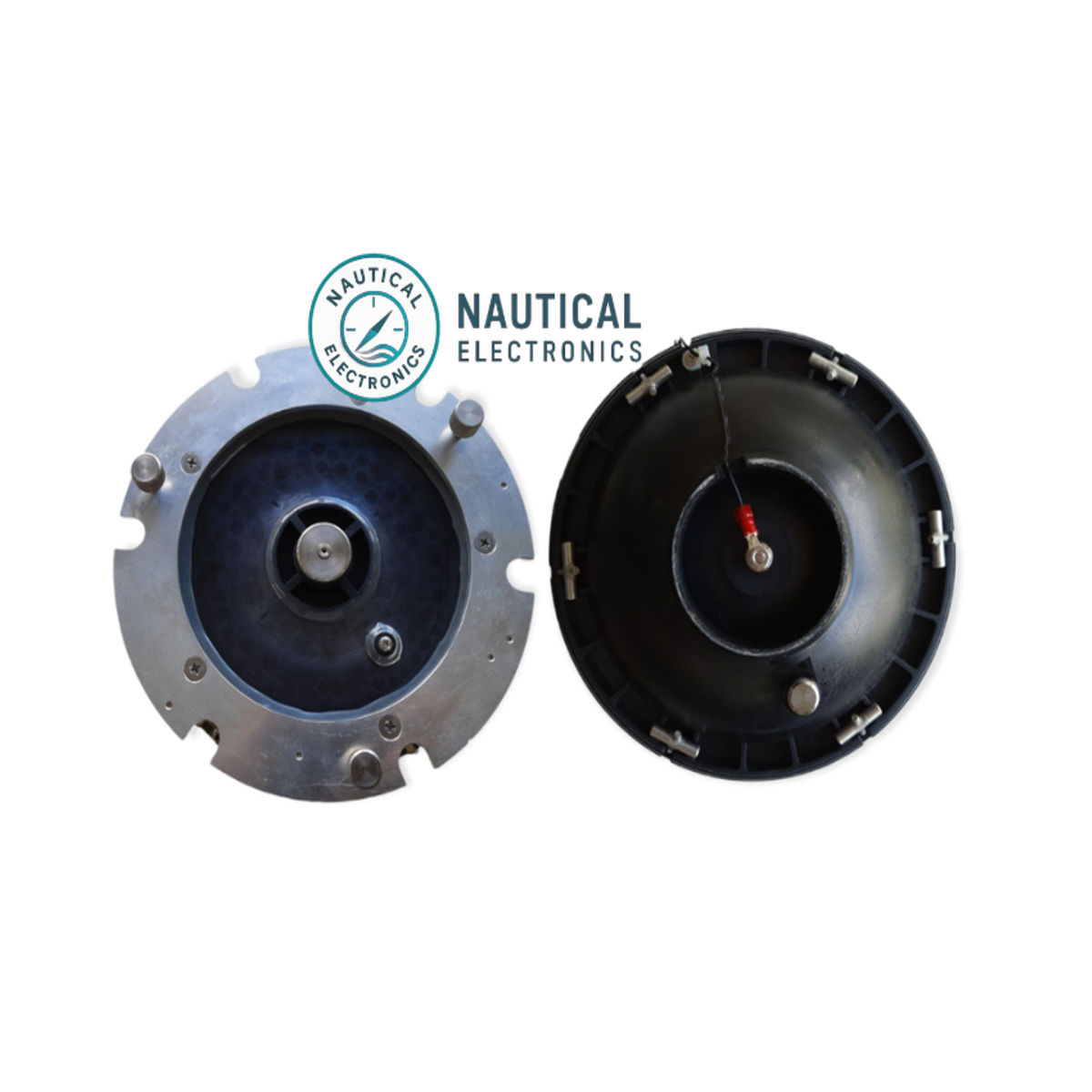

The container features a two-piece split design at the base, enabling shipboard crews to replace the gyrosphere without full system disassembly—ideal for emergency interventions. -
Preserves Internal Components
Crafted to safeguard purity and longevity; incorporates titanium components and durable seals to extend maintenance intervals and support system reliability.
Technical Snapshot
| Feature | Description |
|---|---|
| Function | Protective housing for the gyrosphere |
| Design | Split container for field servicing |
| Material Quality | Durable construction to maintain purity and integrity |
| Service Note | Replace if cracks or contact issues arise |
Why It’s Important
The outer container is more than just a shell—it is a critical component preserving gyrosphere stability, facilitating maintenance, and ensuring the reliable operation of the CMZ-900 gyrocompass. Its proactive replacement can prevent heading inaccuracies and extend overall device lifespan.
