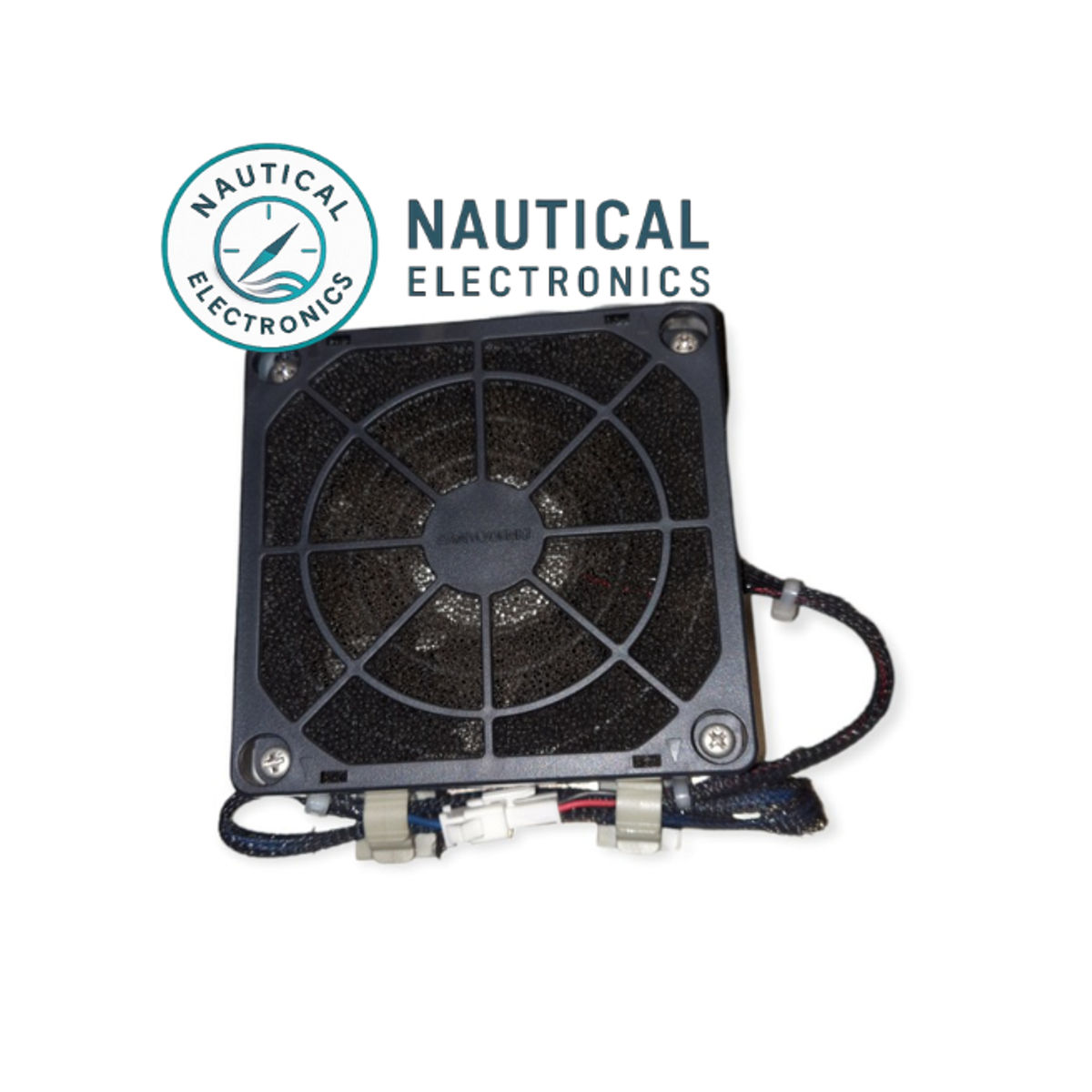

CMZ-900 GYROCOMPASS FAN COOLER

DEVICE: GYROCOMPASS

BRAND: YOKOGAWA / YDK

TYPE: CMZ-900 FAN / COOLER

Fan Cooler for Yokogawa / YDK CMZ-900 Gyrocompass

About the CMZ-900 Gyrocompass

The CMZ-900 series gyrocompass is an advanced navigation instrument that determines true north by utilizing the Earth’s rotation and gravity acting on a high-speed rotor. Designed in line with IMO certification standards, it ensures precise and reliable heading information for all vessel types.

Key Advantages

1. Compact & Modular Build – The master unit can be installed directly into the autopilot stand, saving valuable space.

2. Manual Speed Error Adjustment – Operators can easily correct speed-related deviations.

3. Redundancy Support – An external heading sensor can serve as a backup output.

4. High-Speed Data Transfer – IEC 61162-2 serial interface ensures fast, stable communication.

5. Superior Vibration Protection – A unique damping system with high-viscosity oil absorbs shocks and reduces vibration at sea.

6. Smooth Follow-Up – Lightweight construction delivers fast, accurate heading even during rapid course changes.

7. Low Maintenance – Titanium parts and advanced design extend service intervals. The gyrosphere can also be replaced onboard in case of emergency.

8. Flexible Restart Setting – Restart delay can be configured between 1 and 99 hours.

Main Functions

• Dual power supply: 24V DC or 100–220V AC

• Multiple heading outputs (serial, analog, stepper, repeater)

• Support for external heading sensor backup

• Manual speed correction

Technical Performance

• Settling time: Approx. 2 hours (full accuracy within 5 hours)

• Accuracy:

  • Static: ±0.25° × sec (Lat.)

  • Dynamic: ±0.75° × sec (Lat.)

• Follow-up accuracy: ≤ 0.1°

• Maximum follow-up rate: 30°/s

Environmental Endurance

• Roll / pitch tolerance: up to ±40°

• Vibration resistance: tested across 0–50Hz ranges

• Operating temperatures:

  • Master compass: −10°C to +50°C

  • Repeater: −25°C to +70°C

• Certified to IEC 60945 (4th edition) EMC standards

Global Supply & Service

We provide worldwide delivery and offer full service support in all Turkish ports. For inquiries, spare parts, or service scheduling—contact us anytime.
