DEVICE: GYROCOMPASS, GYROSPHERE
BRAND: YOKOGAWA / YDK
TYPE: CMZ-900, MKT007

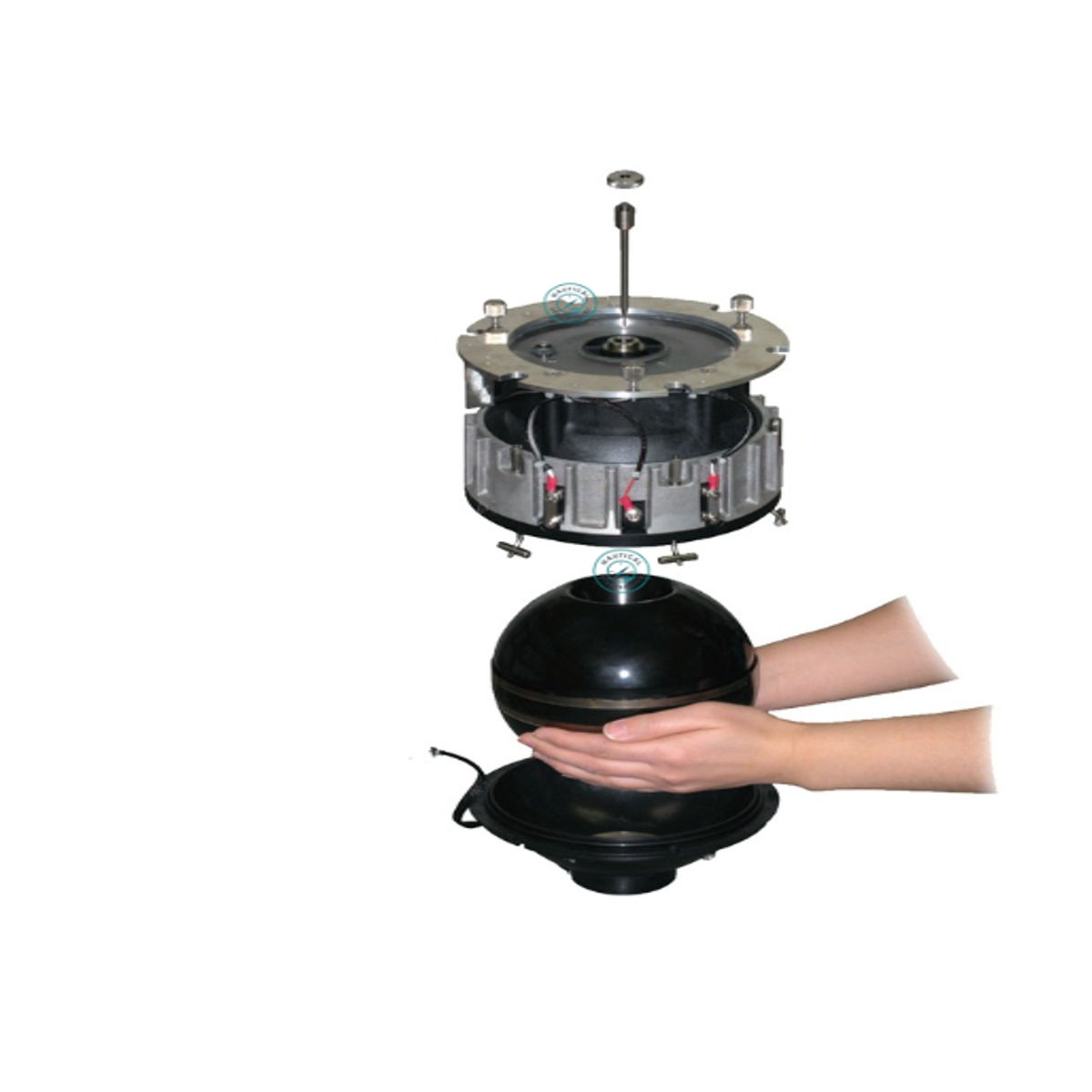

MKT007 Gyrosphere – For Yokogawa CMZ-900 Gyrocompass
The MKT007 Gyrosphere is the OEM-compatible replacement for the Yokogawa CMZ-900 Gyrocompass, ensuring precise and reliable heading data for maritime navigation.
When to Replace the Gyrosphere
-
The CMZ-900 heading accuracy depends on stable gyrosphere operation.
-
Normal gyrosphere current: 220–230 mA (acceptable).
-
If current exceeds 270 mA (upper limit: 300 mA), replacement is required.
-
Service life: 5 years under standard operating conditions.
Maintenance Recommendations
-
Annual inspection of both gyrosphere and gyrocompass.
-
Replace supporting fluid and gasket set every year to ensure accuracy and prevent damage.
Stock & Service Availability
-

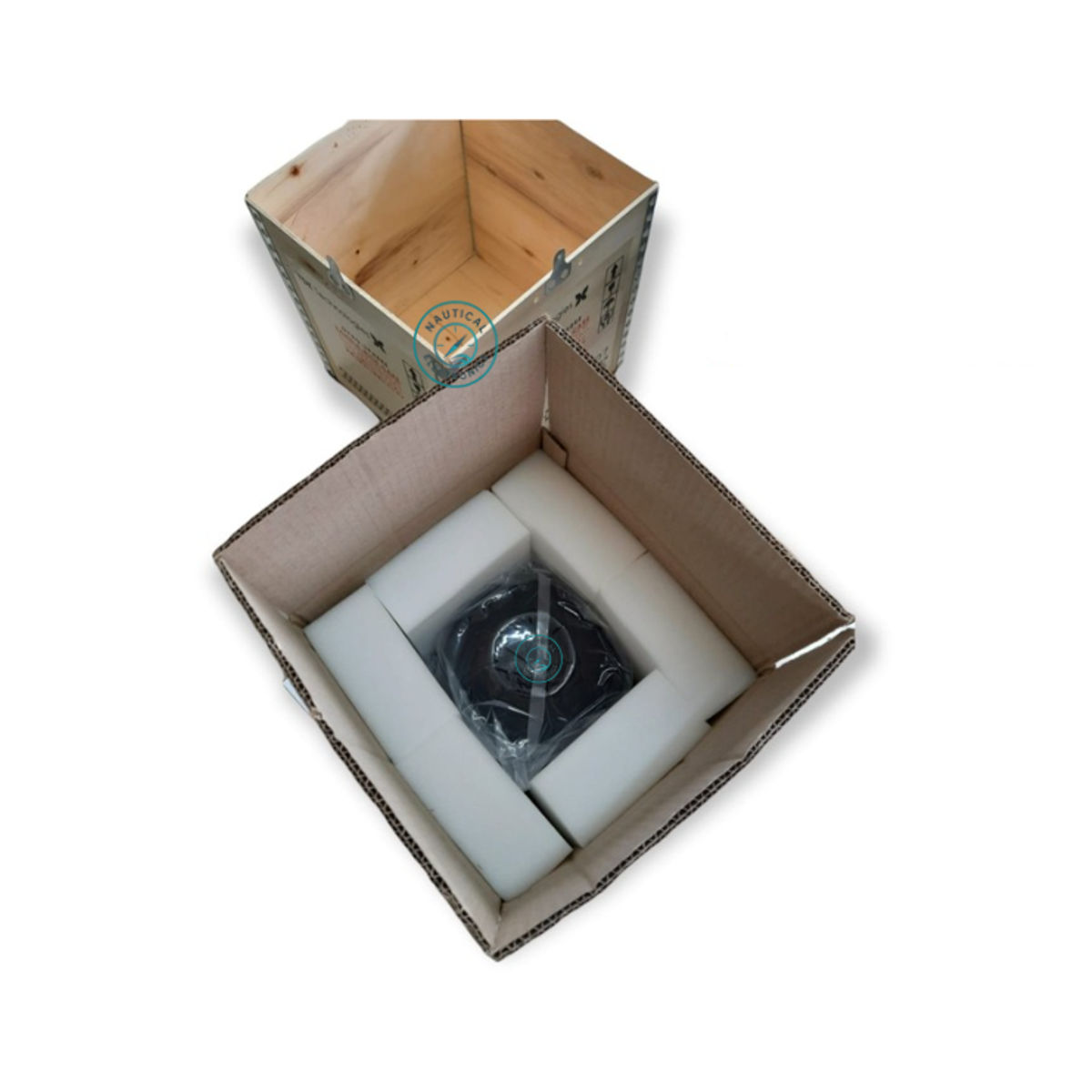

MKT007 Gyrosphere in stock – ready for immediate dispatch.
-
Complete range of CMZ-900 spare parts available.
-
Worldwide shipping and on-site service at all Turkish ports.
About the CMZ-900 Gyrocompass
General Overview
The CMZ-900 detects true north via a high-speed, frictionless rotor influenced by Earth’s rotation and gravity. Type-approved according to IMO standards, it provides accurate ship heading data for navigation systems.
Key Features
-
Modular design for space efficiency; integrates into autopilot stands.
-
Manual speed error correction.
-
External heading sensor backup.
-
High-speed IEC 61162-2 data output.
-
Advanced anti-vibration system with high-viscosity damping oil.
-
Fast response to rapid course changes.
-
Titanium capsule and electrodes for extended maintenance intervals.
-
Simple gyrosphere replacement in emergencies.
-
Adjustable restart time (1–99 hours).
Performance Specifications
-
Settling time: ≤ 5 hours (usable in approx. 2 hours)
-
Accuracy: Static ±0.25° × sec Lat., Dynamic ±0.75° × sec Lat.
-
Follow-up accuracy: ≤ 0.1°
-
Max follow-up speed: 30°/s
Power Supply
-
24V DC (20–30V) and/or 100–220V AC, 50/60Hz (AC adapter required)
Environmental Tolerance
-
Roll/Pitch: ±40°
-
Operating Temp: -10°C to +50°C
-
Vibration-resistant design compliant with IEC 60945
Contact us today to order the MKT007 Gyrosphere or other CMZ-900 spare parts. We ensure fast delivery and professional service worldwide.
