DEVICE: GYROCOMPASS, REPEATER
BRAND: YOKOGAWA , YDK
TYPE: KR 005 A

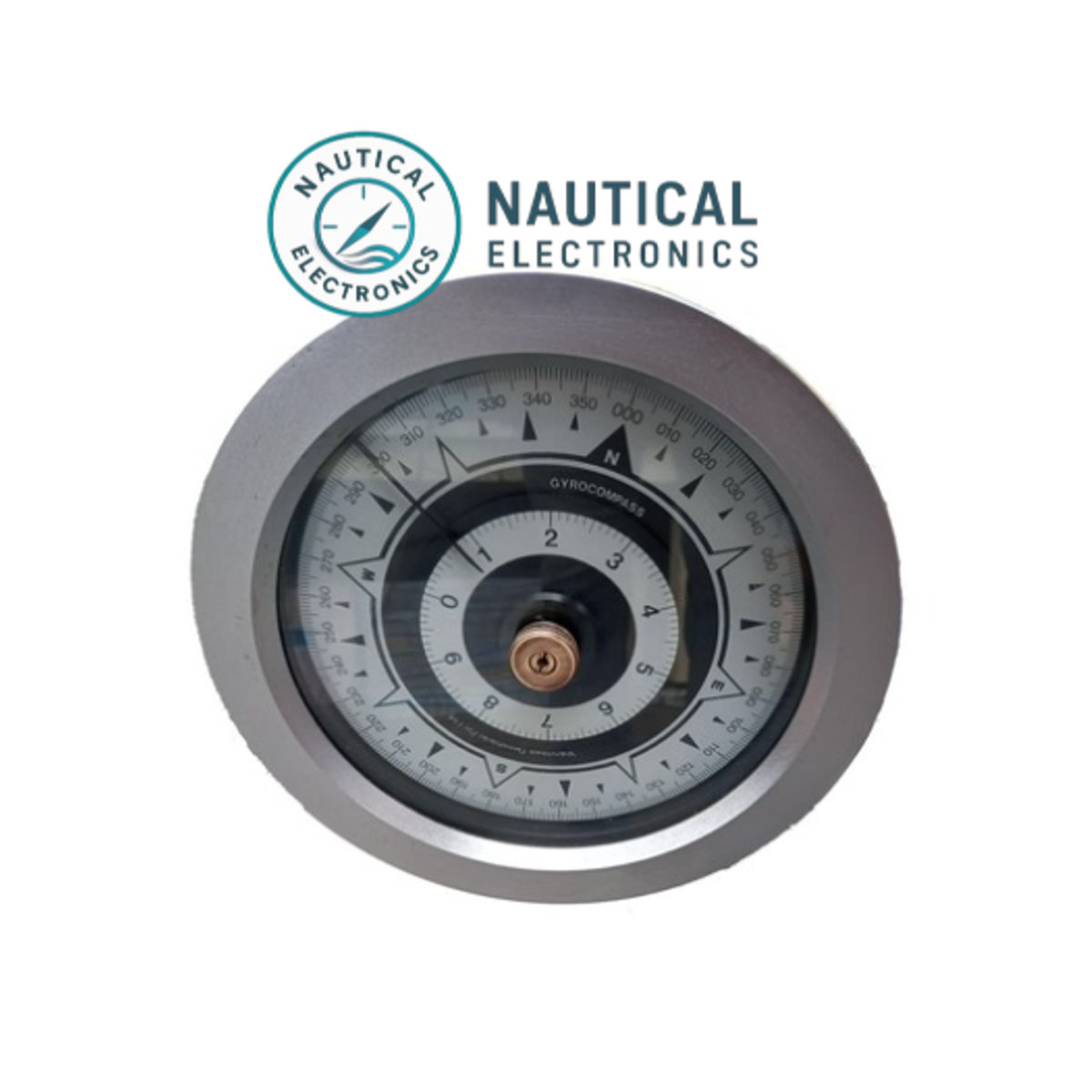

Yokogawa KR005-A Gyrocompass Repeater
Overview
The Yokogawa KR005-A is a precision repeater compass unit designed to replicate heading data from YOKOGAWA (YDK) gyrocompass systems. It operates using a standard 100 V analog synchro heading signal at 50/60 Hz, ensuring accurate heading replication across multiple display locations.
Key Features
-
Analog Synchro Signal Input
Utilizes a 100 V, 50/60 Hz analog synchro input to synchronize heading accurately with the main gyrocompass. -
Robust Marine Construction
Built for reliable performance in harsh marine environments with precision engineering that reflects Yokogawa’s high standards. -
Compact and Durable
With a weight of approximately 6 kg, the repeater is robust yet manageable for bridge station installation. -
Manufacturer Quality
Manufactured by Yokogawa/Navitec in Japan, known for its rigorous engineering and reliability.
Technical Snapshot
| Specification | Description |
|---|---|
| Input Signal Format | 100 V, 50/60 Hz analog gyro heading synchro |
| Weight | Approximately 6 kg |
| Manufacturer | Yokogawa / Navitec (Japan) |
| Heading Output | Drives local heading indicators at repeater locations |
Applications
The KR005-A repeater is ideal for:
-
Duplicate heading displays across bridge wings, aft stations, or secondary control panels.
-
Improving navigational redundancy and visibility in complex vessel layouts.
-
Enhancing bridge ergonomics by offering multiple, synchronized heading references.
