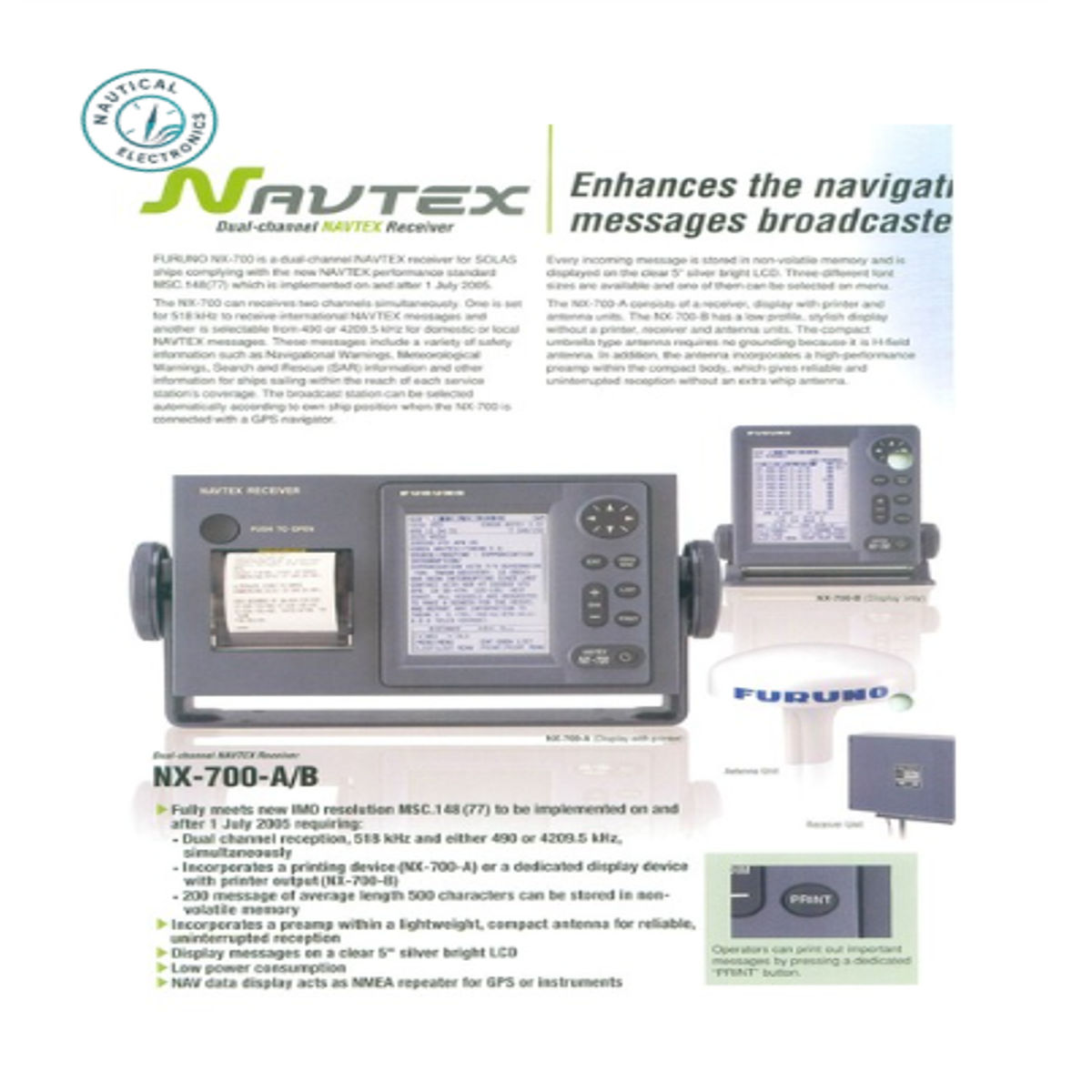

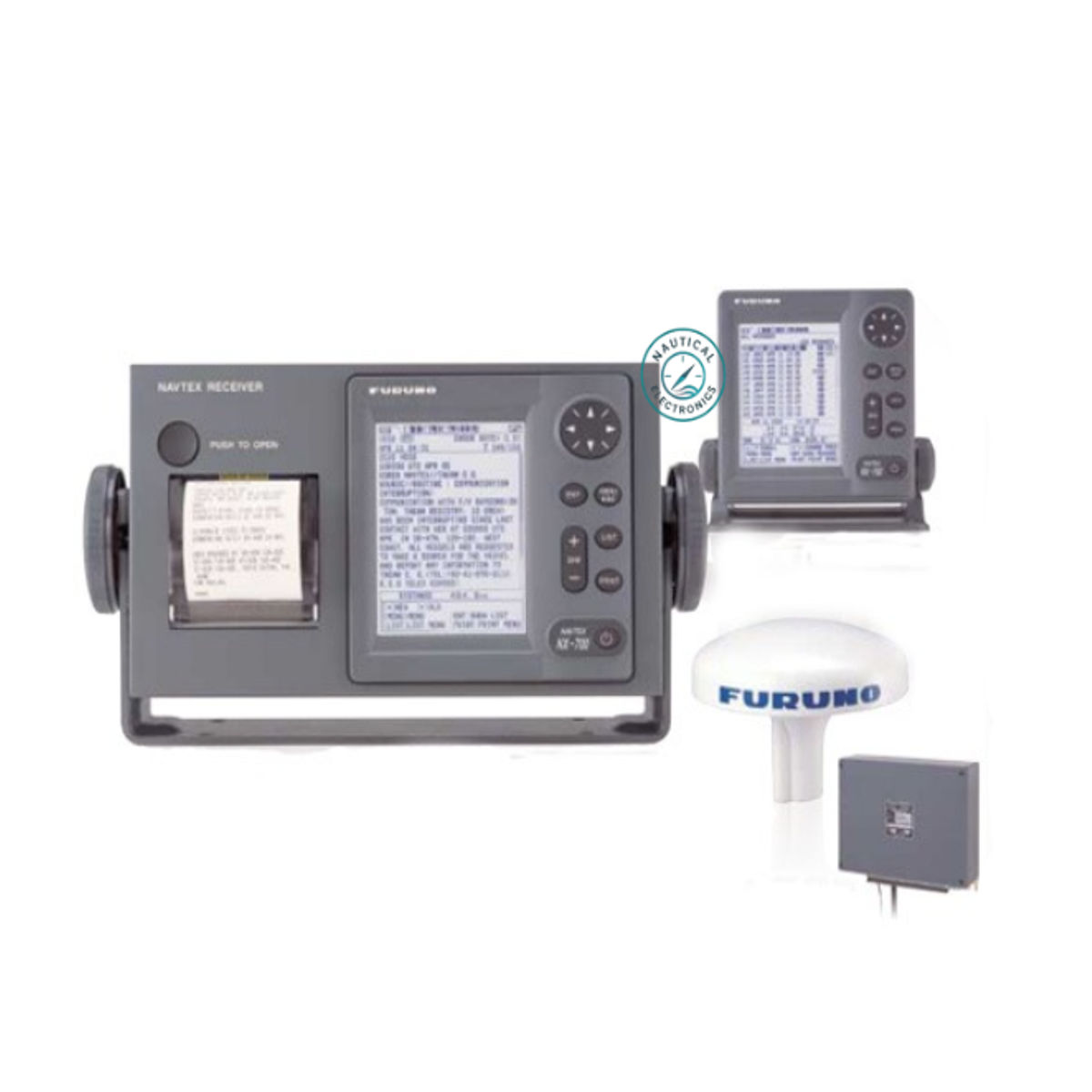

FURUNO NX-700 NAVTEX Receiver
We provide worldwide supply and service at all Turkish ports. Stay in touch with us for orders and support.

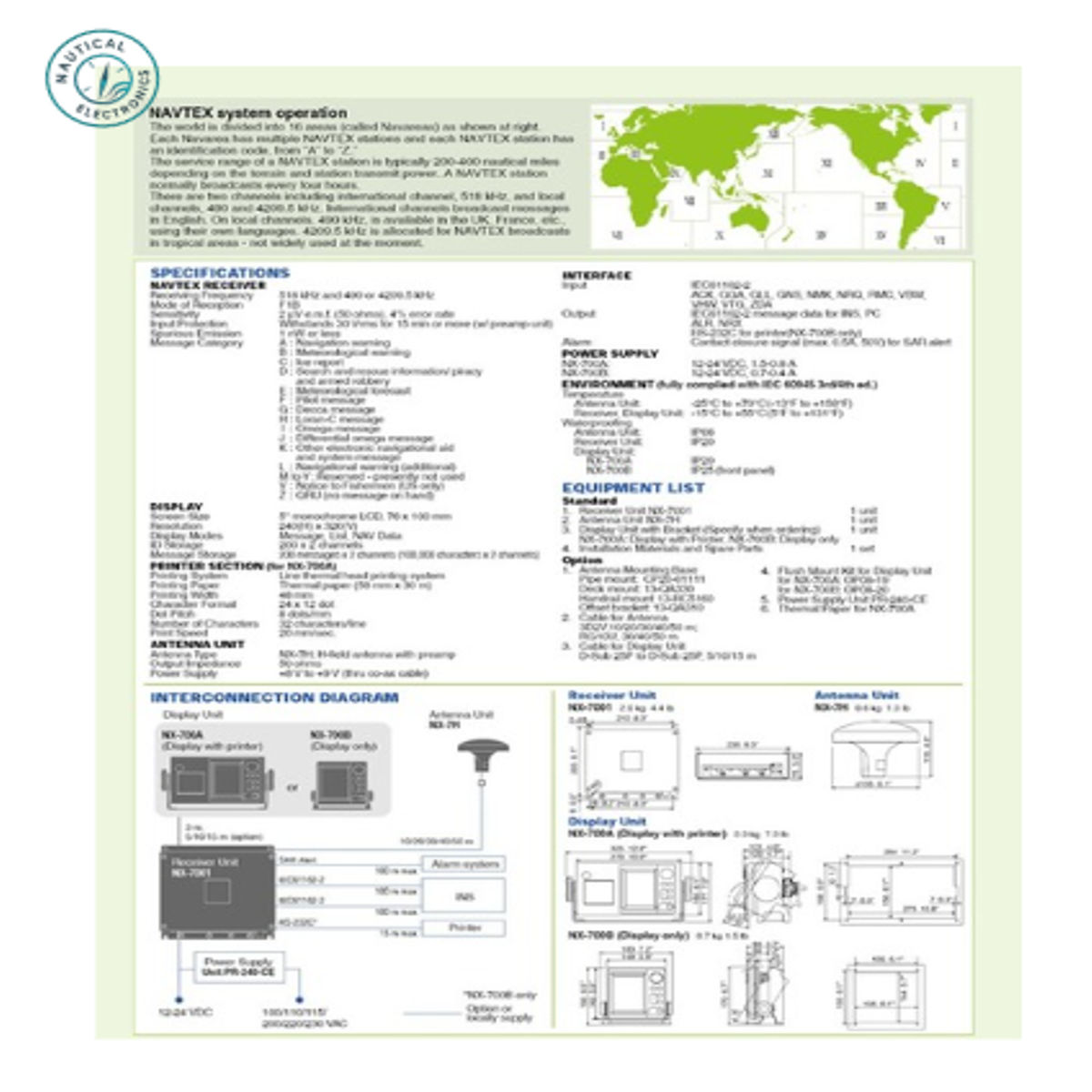

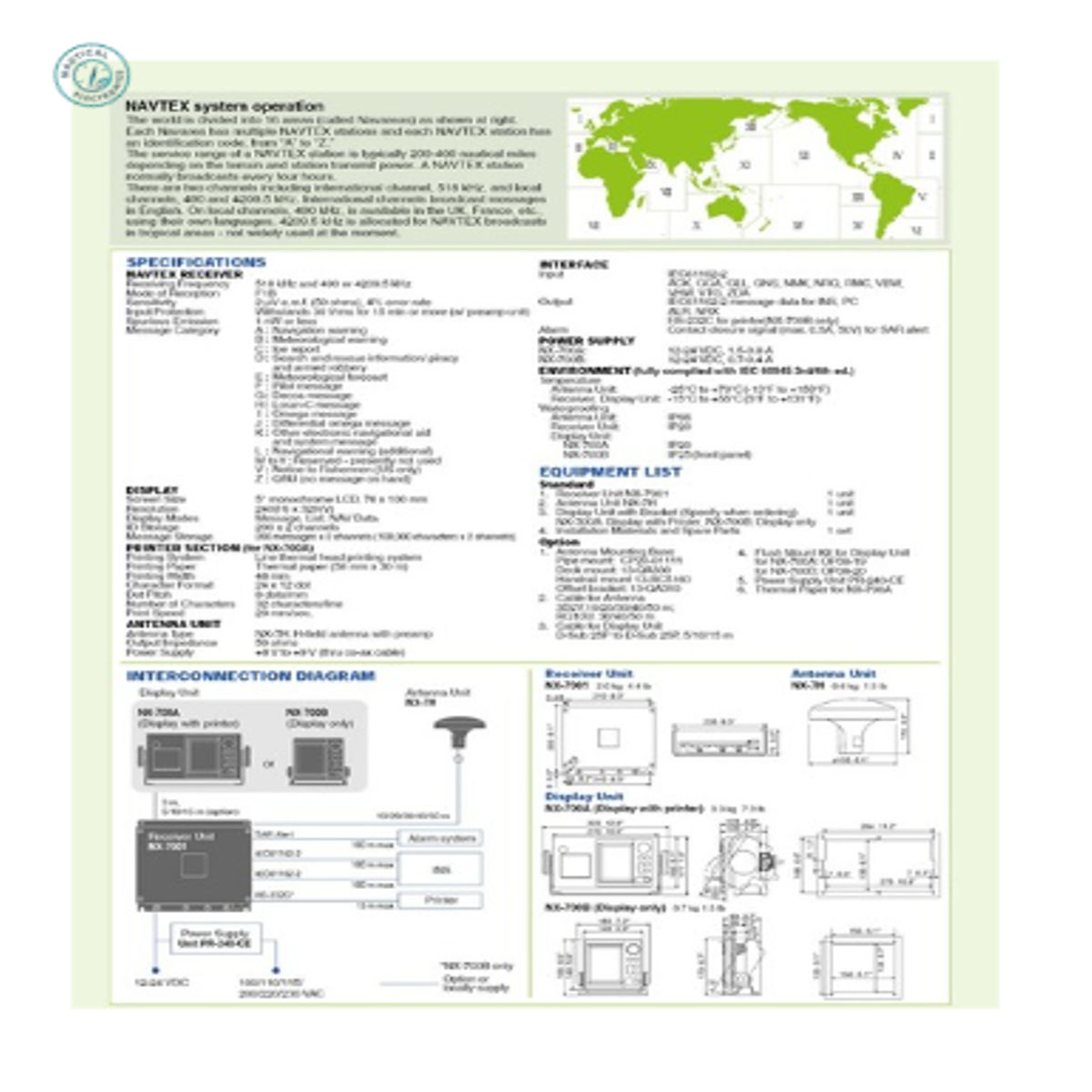

Specifications:
NX-700 NAVTEX RECEIVER
-
Receiving Frequencies: 518 kHz and 490 kHz (or 4209.5 kHz), capable of simultaneous reception
-
Mode of Reception: F1B
-
Sensitivity: 2 μV e.m.f. (50 Ω), ≤4% error rate
-
Input Protection: Withstands 30 Vrms for 15 minutes or more (with pre-amp unit)
-
Spurious Emission: ≤1 nW
-

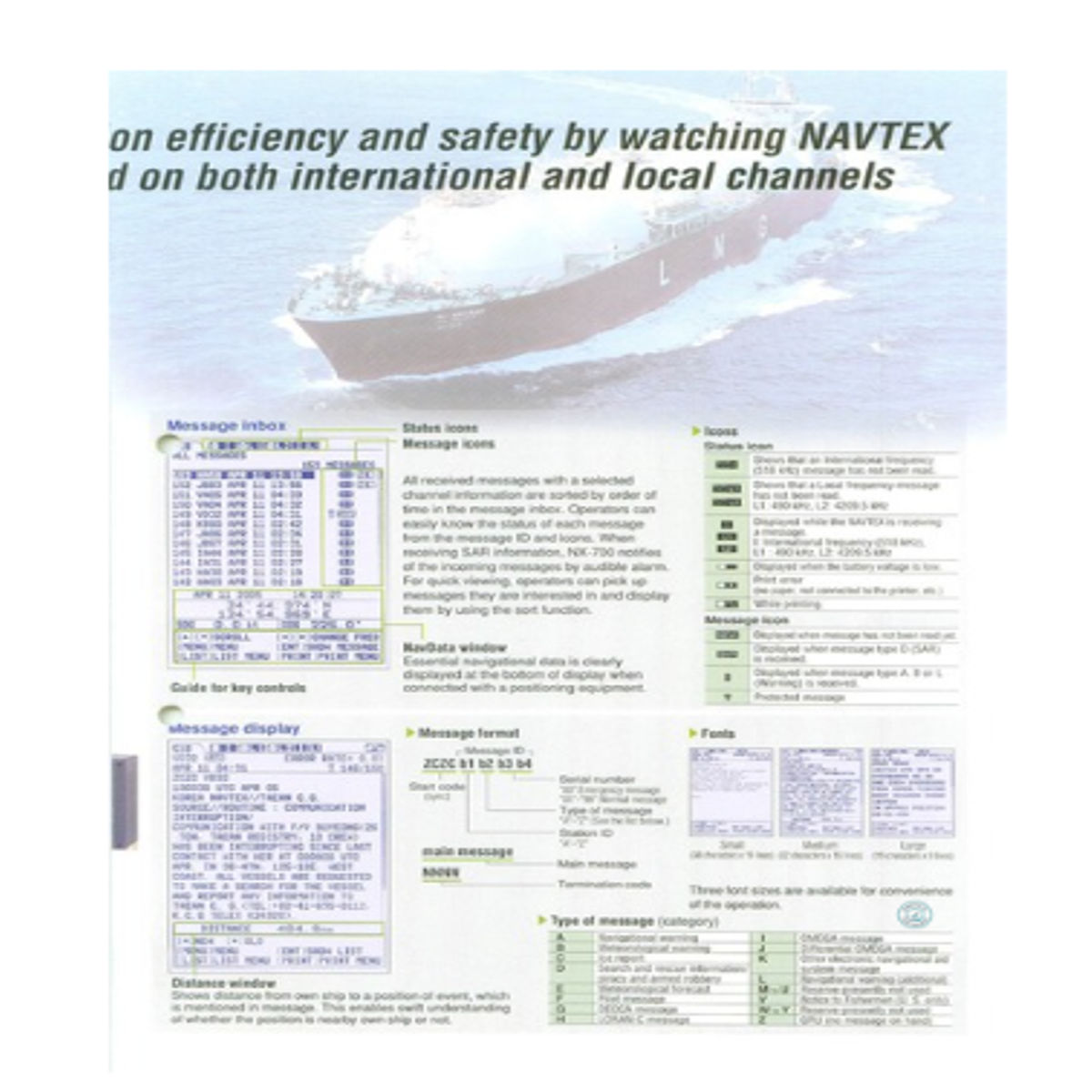

Message Categories:
-
A: Navigational warning
-
B: Meteorological warning
-
C: Ice report
-
D: Search and rescue / piracy & armed robbery
-
E: Meteorological forecast
-
F: Pilot message
-
G: AIS
-
H: LORAN-C message
-
I: Reserved (not used)
-
J: SATNAV message
-
K: Other electronic navigational aid system message
-
L: Additional navigational warning
-
M–Y: Reserved (not used)
-
Z: QRU (no message on hand)
-
DISPLAY UNIT
-
Display: 5-inch monochrome LCD, 240 x 320 dots (76 W x 100 H mm)
-
Display Modes: Message selection, Message display
-
Message Storage: 200 messages x 2 channels (100,000 characters per channel)
PRINTER SECTION (NX-700A Only)
-
Printing System: Line thermal head
-
Paper: Thermal paper (58 mm x 30 m)
-
Printing Width: 48 mm
-
Character Format: 24 x 12 dot
-
Dot Pitch: 8 dots/mm
-
Characters per Line: 32
-
Print Speed: Approx. 20 mm/sec
ANTENNA UNIT
-
Type: NX-7H H-field antenna
-
Output Impedance: 50 Ω
-
Power Supply: +7 V to +9 V (through coax cable)
INTERFACE
-
Input Data: IEC61162-1, -2 (GGA, GLL, RMC, ZDA, ACK, GNS, VHW, VTG, VBW, NRM, CRQ, PFEC)
-
Output Data: NRX, ALR, NRM
-
Alarm: Normally closed contact, floating, max 80 mA, 50 V for SAR alert
POWER SUPPLY
-
NX-700A: 12–24 VDC, 1.5–0.8 A
-
NX-700B: 12–24 VDC, 0.7–0.4 A
ENVIRONMENTAL CONDITIONS
-
Ambient Temperature:
-
Antenna Unit: -25°C to +70°C
-
Receiver / Display Unit: -15°C to +55°C
-
-
Relative Humidity: 95% at 40°C (without condensation)
-
Waterproofing:
-
Antenna Unit: IP66
-
Receiver / Display Unit: IP20 (NX-700B front panel: IP25)
-
-
Vibration: 2–5 Hz and up to 13.2 Hz, ±1 mm ±10% (max 7 m/s² at 13.2 Hz); 13.2–100 Hz max acceleration 7 m/s²
