DEVICE: NAVTEX
BRAND: JMC
TYPE: NT-900

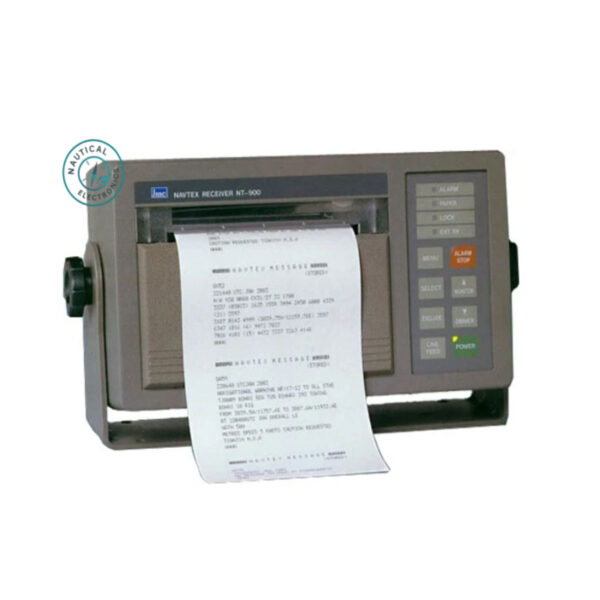

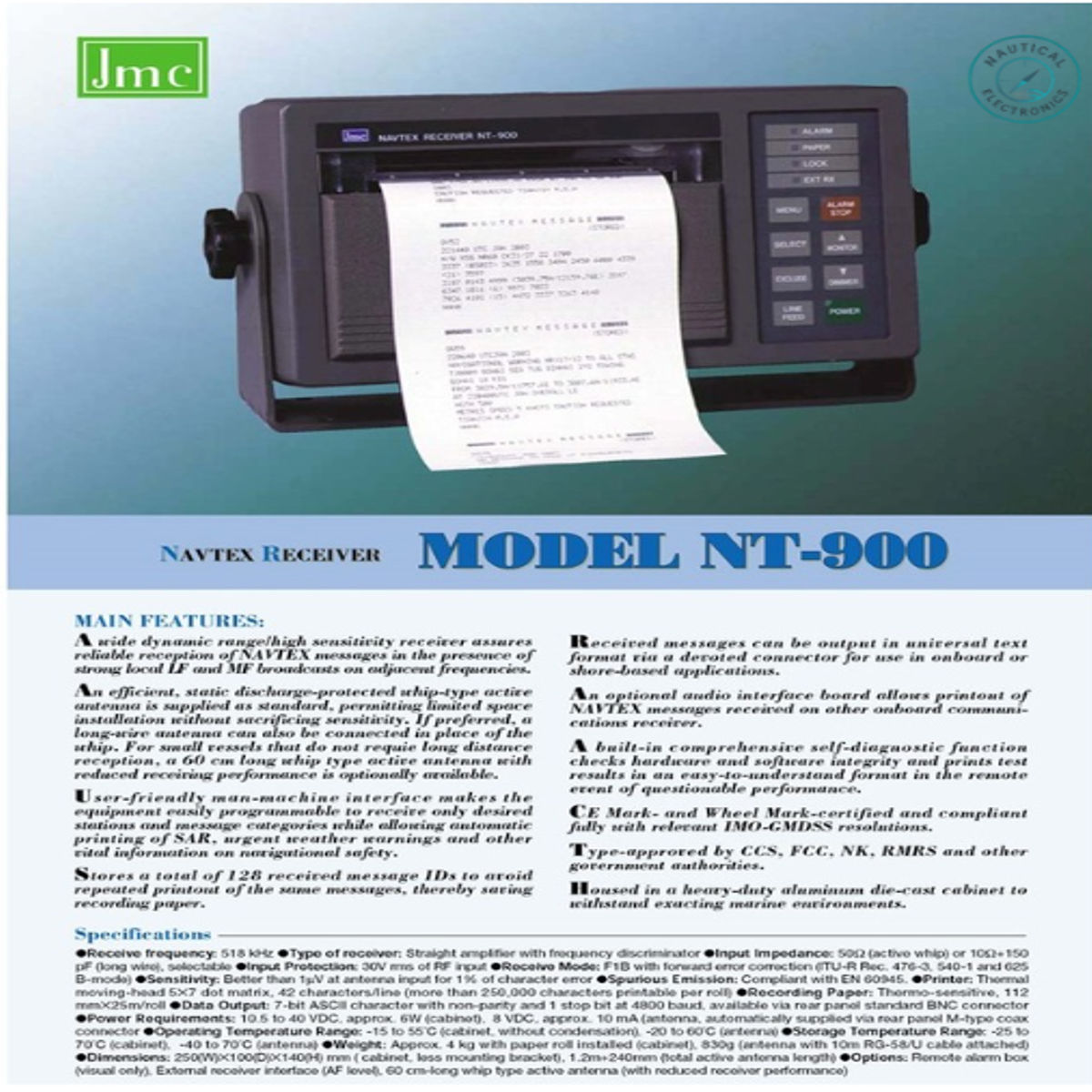

JMC NT-900 NAVTEX RECEIVER
We can supply worldwide and provide service at all Turkish ports. Stay in touch with us for inquiries and support.
Specifications & Features
-
Working Range of Coastal Stations: 250–400 nautical miles
-
Receiving Frequency: 518 kHz
-
Signal Class: Frequency telegraphy F1B
-
Receiver Sensitivity:
-
On artificial antenna 50 Ω: ≥ 2 μV
-
On artificial antenna 10 Ω, 150 pF: ≥ 5 μV
-
-
Receiver Selectivity:
-
At 6 dB level: 300 Hz
-
At 60 dB level: 2 kHz
-
-
Stray Radiation: ≤ 2 nVt
-
Input Protection: 30 V RMS
-
Antenna Type: Active antenna with 15 m coaxial cable
-
Message Memory Capacity: Over 30 messages
Printer Section
-
Printing Type: Thermoprinting
-
Line Length: 42 digits
-
Character Format: 7×5 stencil (Height 2.4 mm, Width 1.4 mm)
-
Printing Speed: 0.7 lines/sec
-
Printing Capacity (per roll): Over 250,000 digits
-
Paper Roll: TR50KS, 25 m (112×47 mm)
Power Supply
-
Voltage Range: 9–40 VDC
-
Current Consumption: ≤ 1.5 A
-
Average Power Consumption: ≤ 9 W
Operating Conditions
-
Temperature Range: -15 to +55 °C
-
Humidity: Up to 93% at 40 °C
