DEVICE: NAVTEX
BRAND: NSR
TYPE: NVX-1000

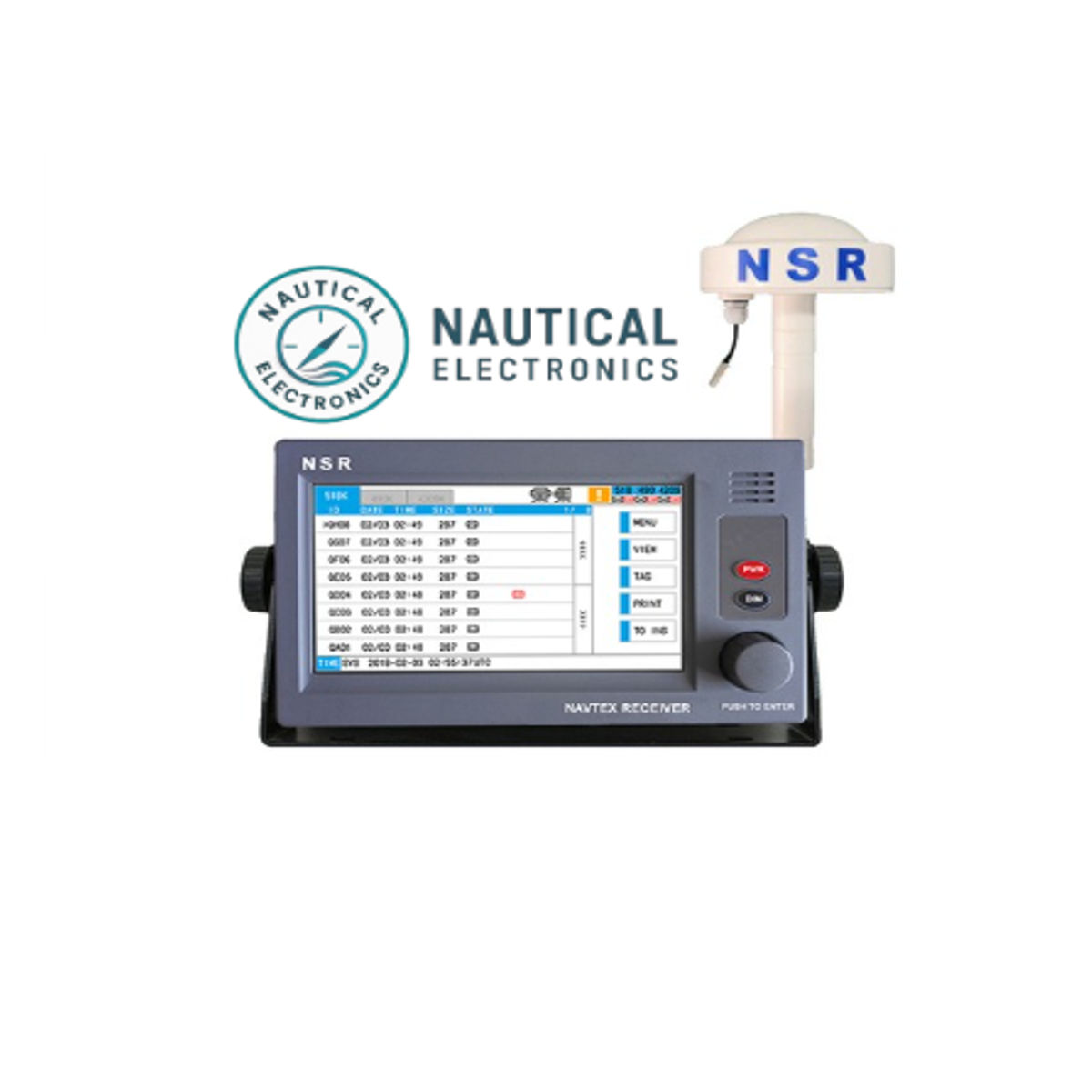

NSR NVX-1000 NAVTEX Receiver
Overview
The NSR NVX-1000 is a modern NAVTEX receiver engineered with software-defined radio (SDR) technology, delivering exceptional sensitivity and flexibility. It simultaneously receives messages on all three IMO NAVTEX channels (518 kHz, 490 kHz, and 4209.5 kHz) and displays them clearly on a 7-inch color touchscreen. Fully compliant with current maritime standards, it ensures reliable maritime safety communications across various vessel types.
Key Features
-
Triple-Frequency Reception
Capable of receiving simultaneously on the three standard NAVTEX frequencies, enabling comprehensive message coverage. -
Touchscreen Display
Features a vibrant 7-inch color LCD with intuitive touchscreen operation for effortless message navigation. -
Extended Message Storage
Stores navigational alerts and weather updates for up to 72 hours, enabling review and retrieval of past transmissions. -
Software-Defined Radio (SDR)
Employs advanced SDR architecture for high sensitivity and future-proof performance. -
Compact & Flexible Installation
Designed for both desktop placement and flush-mounting to suit various bridge layouts. -
Multiple Interfaces

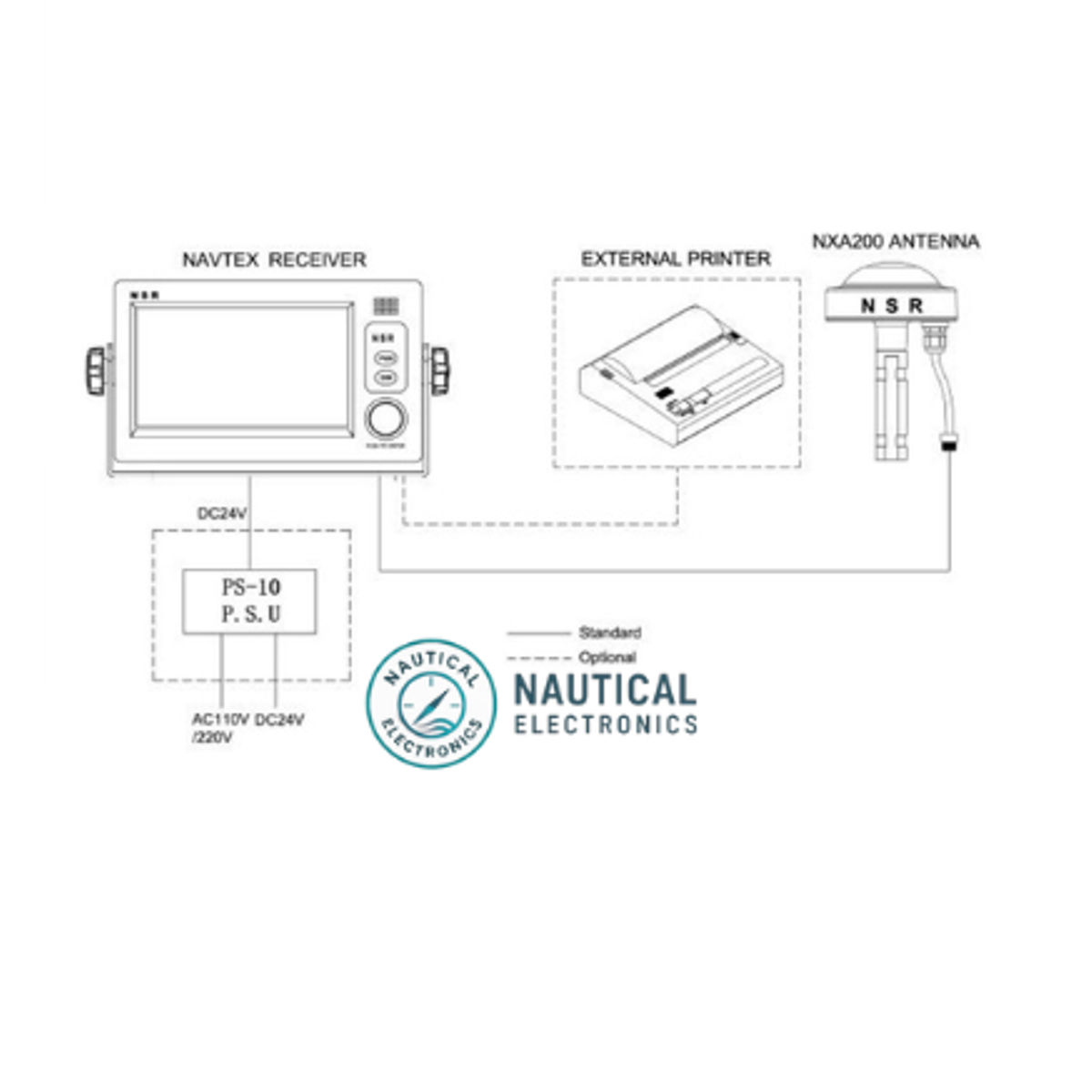

Includes external printer support, NMEA/DSC/BAM/INS data ports, and alarm outputs for seamless integration with bridge systems. -
Low Power Consumption & Diagnostics
Operates efficiently with built-in self-diagnostic functionality to ensure ongoing reliability and operational readiness. -
Regulatory Approvals
Certified to meet the latest IMO and IEC standards for NAVTEX receivers, holding type approvals from DNV, CCS, and other classification bodies.
Technical Highlights & Performance
| Specification | Detail |
|---|---|
| Frequencies | 518 kHz, 490 kHz, 4209.5 kHz |
| Receiver Sensitivity | Better than –107 dBm |
| Display | 7″ color LCD touchscreen |
| Storage Capacity | Up to 72 hours of messages |
| Power Supply | 24 V DC, approx. 10 W average |
| Environmental Range | –20 °C to +55 °C operational |
| Interfaces | Printer, NMEA, BAM/INS, alarm ports |

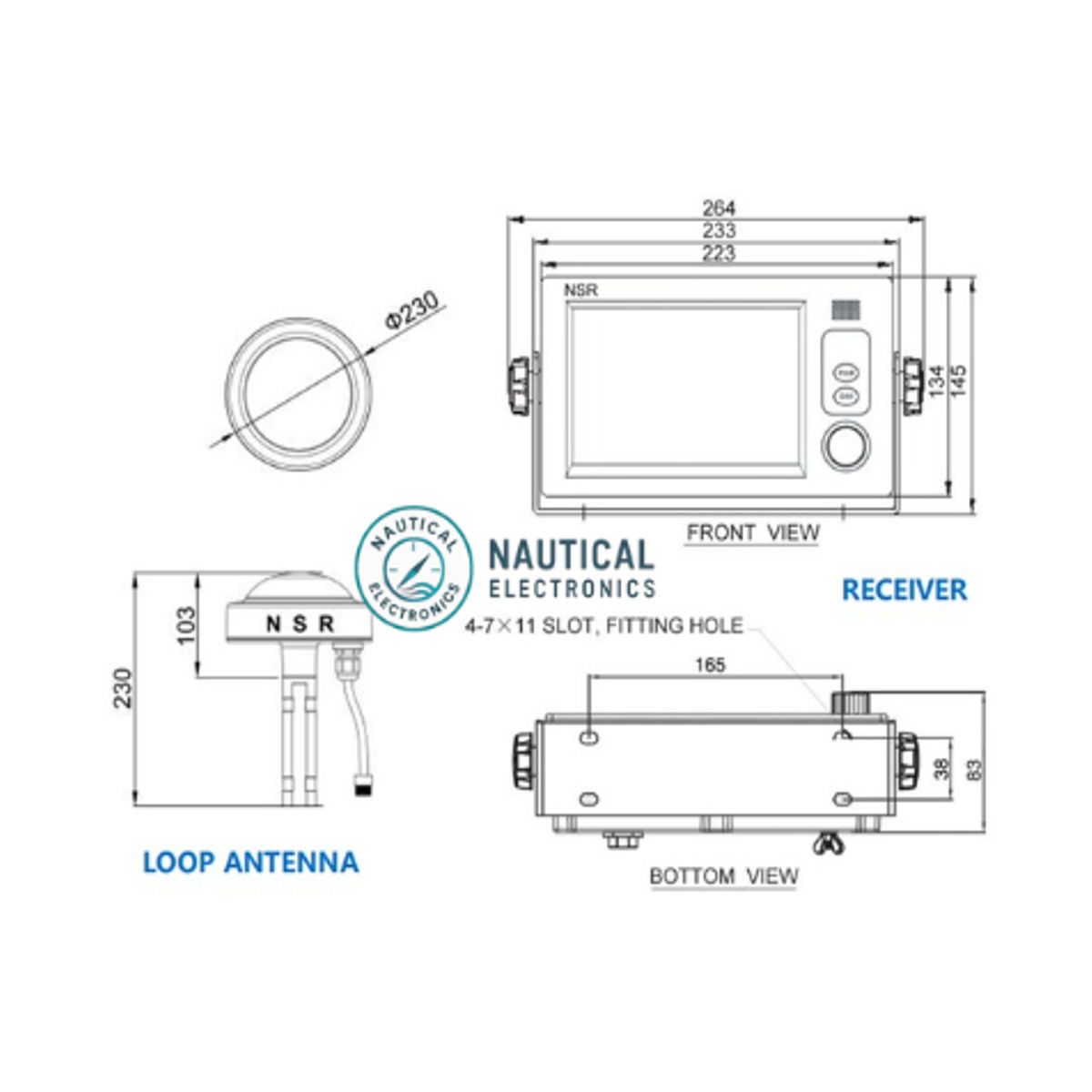

| Mounting Options | Desktop or flush-mounted |
| Certifications | IMO, IEC, DNV, CCS approvals |
Applications
The NSR NVX-1000 is ideal for all vessel types—from commercial ships and fishing vessels to leisure crafts and offshore platforms—providing robust and comprehensive NAVTEX coverage for navigational alerts, weather bulletins, and safety messages. Its touchscreen interface and storage capability streamline bridge operations and enhance maritime safety.
