DEVICE: NAVTEX
BRAND: NSR
TYPE: NVX-3000

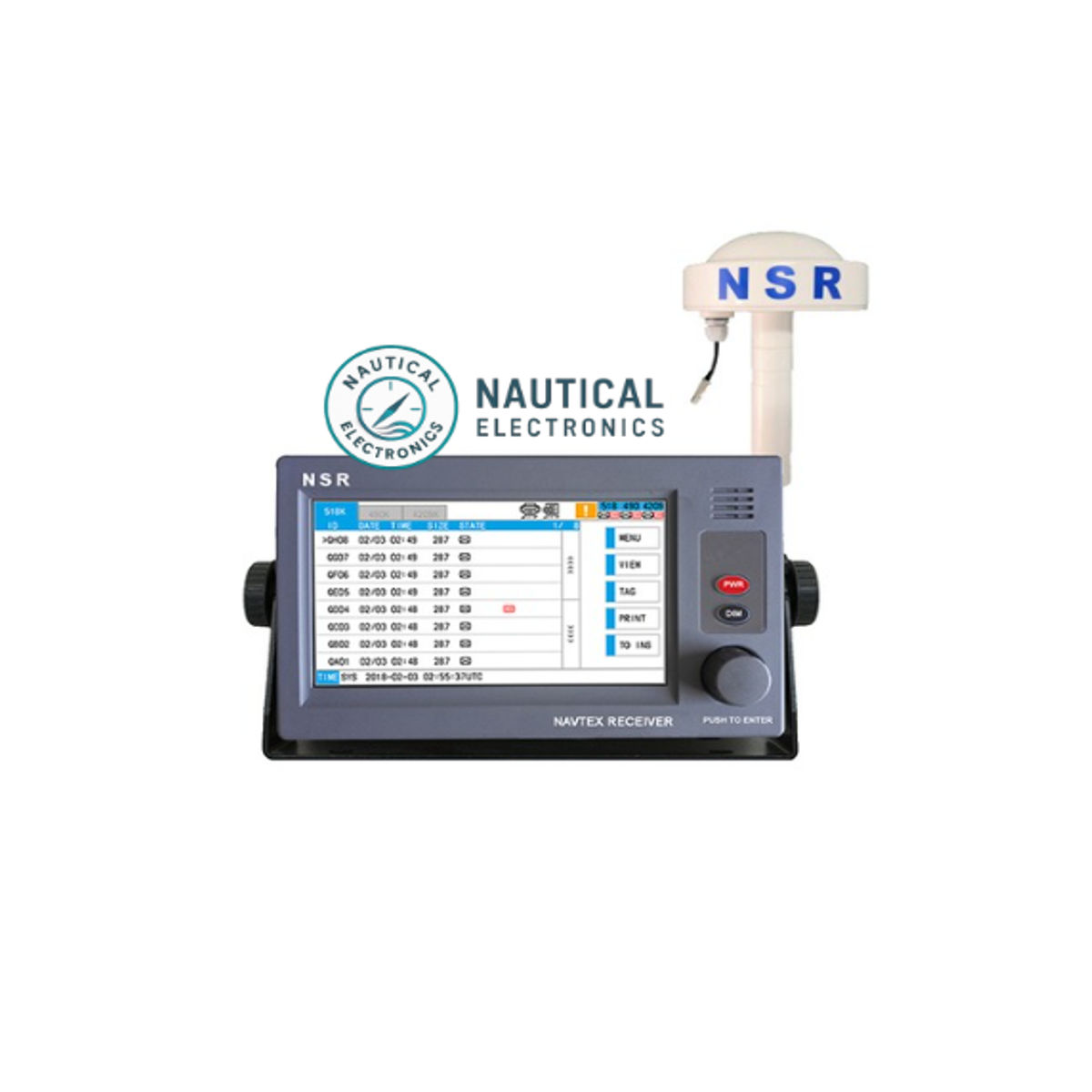

NSR NVX-3000 NAVTEX Receiver – Product Description
Overview:
The NSR NVX-3000 is a new generation, dual-channel NAVTEX receiver developed in full compliance with IMO performance standards. It provides reliable maritime safety information reception and is approved for use on all SOLAS vessels.
Key Features
-
Triple-Frequency Reception: Simultaneous reception on 518 kHz (international) and either 490 kHz or 4209.5 kHz (local/domestic).
-
Advanced Receiver Technology: High-sensitivity Software-Defined Radio (SDR) design for strong, clear reception.
-
7-Inch Touch Display: Large color LCD (800×480) with intuitive operation.
-
Message Storage: Automatic non-volatile storage for up to 72 hours, with duplicate message protection and tagging of important messages.
-
Flexible Installation: Supports desktop or flush mounting; compact design with low power consumption.
-
Integration & Interfaces: NMEA input/output, external alarm connection, printer interface, and system self-diagnosis for easy maintenance.
Technical Specifications
-
Frequencies: 518 kHz, 490 kHz, 4209.5 kHz
-
Sensitivity: Better than –107 dBm
-
Display: 7″ color touch LCD, 800×480
-
Memory: Up to 72 hours of messages stored
-
Power Supply: 24 V DC (10–38 V), approx. 10 W
-
Operating Temperature: –20 °C to +55 °C (storage –30 °C to +70 °C)
-
Protection: Receiver IP22, antenna/amplifier IP66
-

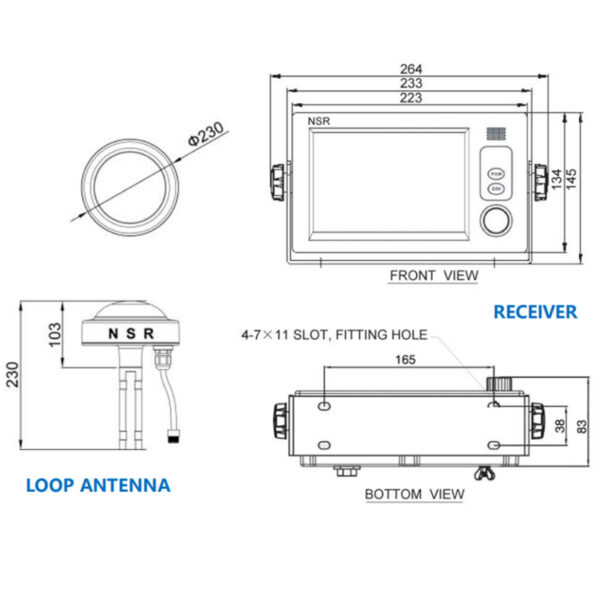

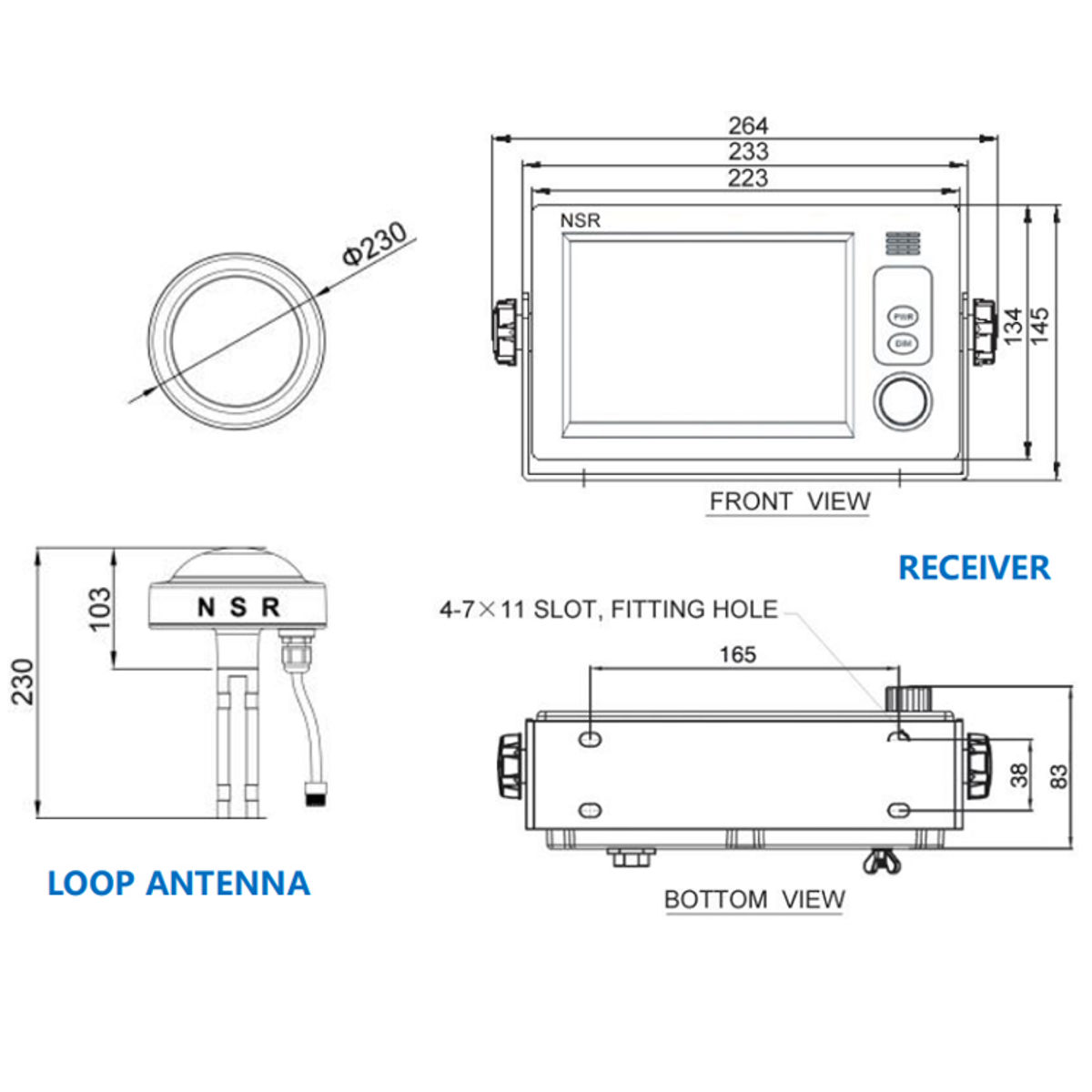

Dimensions / Weight: Receiver approx. 264 × 145 × 80 mm / 2.3 kg
-
Interfaces: NMEA, BAM/INS, printer, external alarm
Package & Options
-

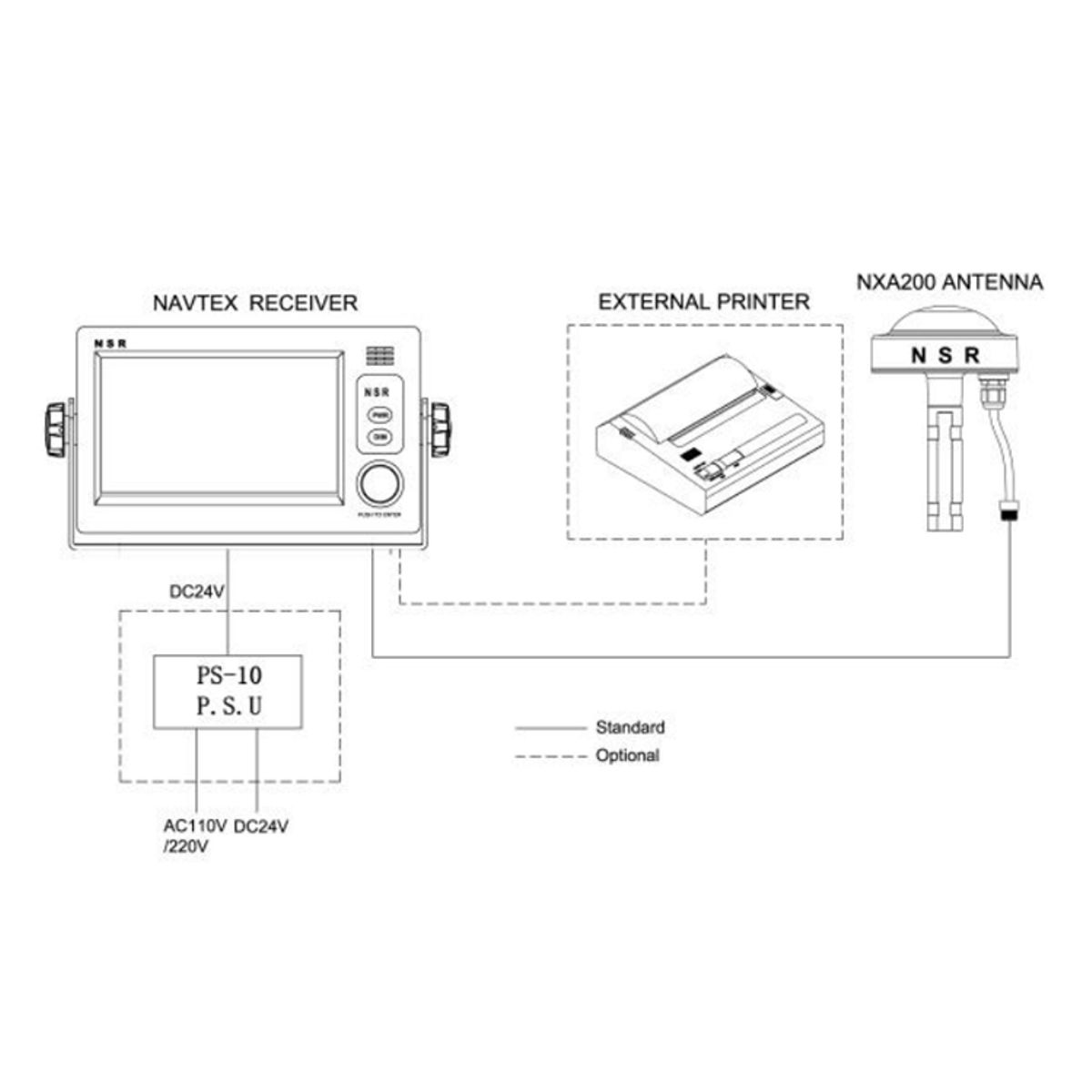

Standard Supply: Receiver unit, antenna, amplifier, installation accessories
-
Optional Accessories: Thermal printer, AC/DC power supply, flush-mount kit
Certifications
-
IMO MSC.148(77), MSC.430(98), MSC.302(87)
-
IEC 61097-6, IEC 60945, IEC 61162 series, IEC 62923
-
MED Wheel-mark approved, DNV-GL type approval
