DEVICE: NAVTEX
BRAND: SAMYUNG
TYPE: SNX-200

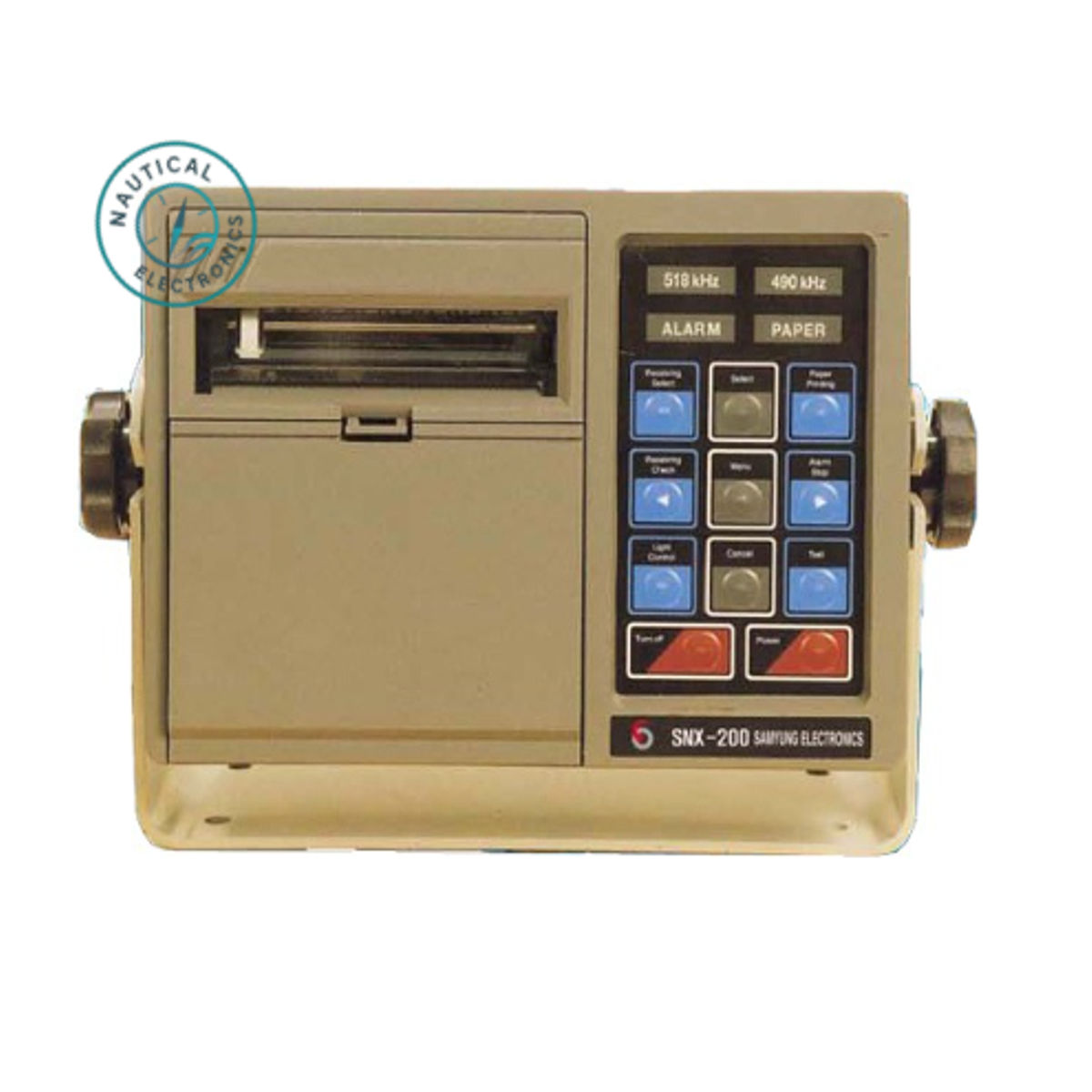

SAMYUNG SNX-200 NAVTEX Receiver
The SAMYUNG SNX-200 is a reliable and efficient NAVTEX receiver designed for maritime safety broadcasts. Built to perform in demanding sea conditions, it ensures accurate reception of navigational and meteorological warnings.
We can supply worldwide and provide service in all Turkish ports. Keep in touch with us.

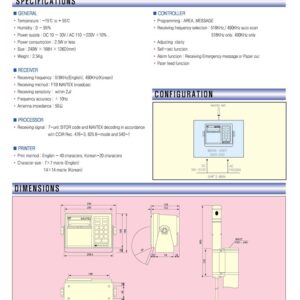

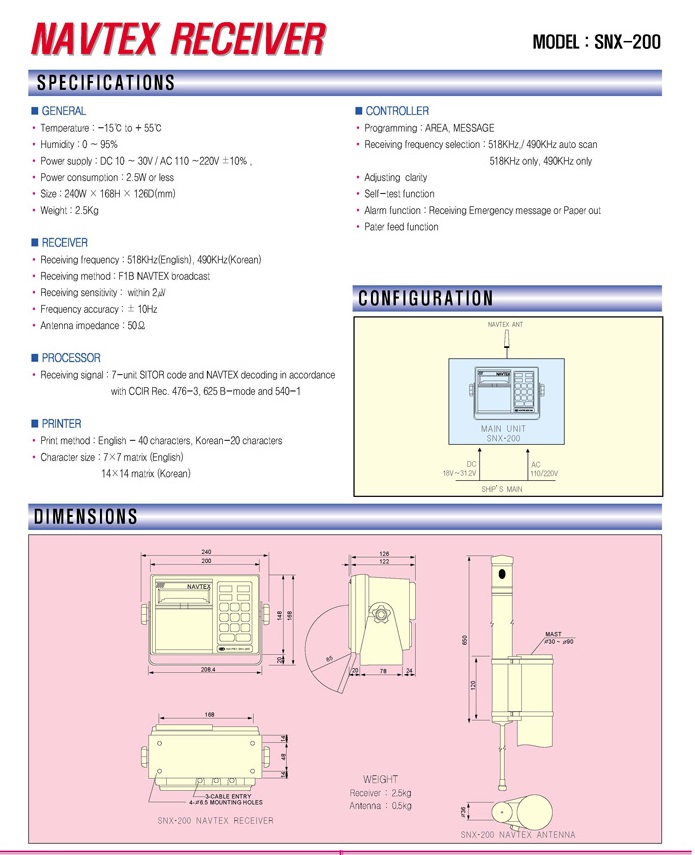

Specifications
General
-
Temperature: -15℃ to +55℃
-
Humidity: 0–95%
-
Power Supply: DC 10–30V / AC 110–220V ±10%
-
Power Consumption: ≤ 2.5W
-
Dimensions: 240(W) × 168(H) × 126(D) mm
-
Weight: 2.5 kg
Receiver
-
Frequencies: 518 kHz (English), 490 kHz (Korean)
-
Method: F1B NAVTEX broadcast
-
Sensitivity: ≤ 2 μV
-
Frequency Accuracy: ± 10 Hz
-
Antenna Impedance: 50 Ω
Processor
-
Signal: 7-unit SITOR code and NAVTEX decoding per CCIR Rec. 476-3, 625 B-mode, and 540-1
Printer
-
English: 40 characters, 7×7 matrix
-
Korean: 20 characters, 14×14 matrix
Controller
-
Programmable Area & Message selection
-
Frequency Modes: Auto Scan (518/490 kHz), 518 kHz only, 490 kHz only
-
Clarity Adjustment
-
Self-Test Function
-
Alarm on emergency messages or paper out
-
Paper Feed Function
