DEVICE: NAVTEX
BRAND: SAMYUNG
TYPE: SNX-300

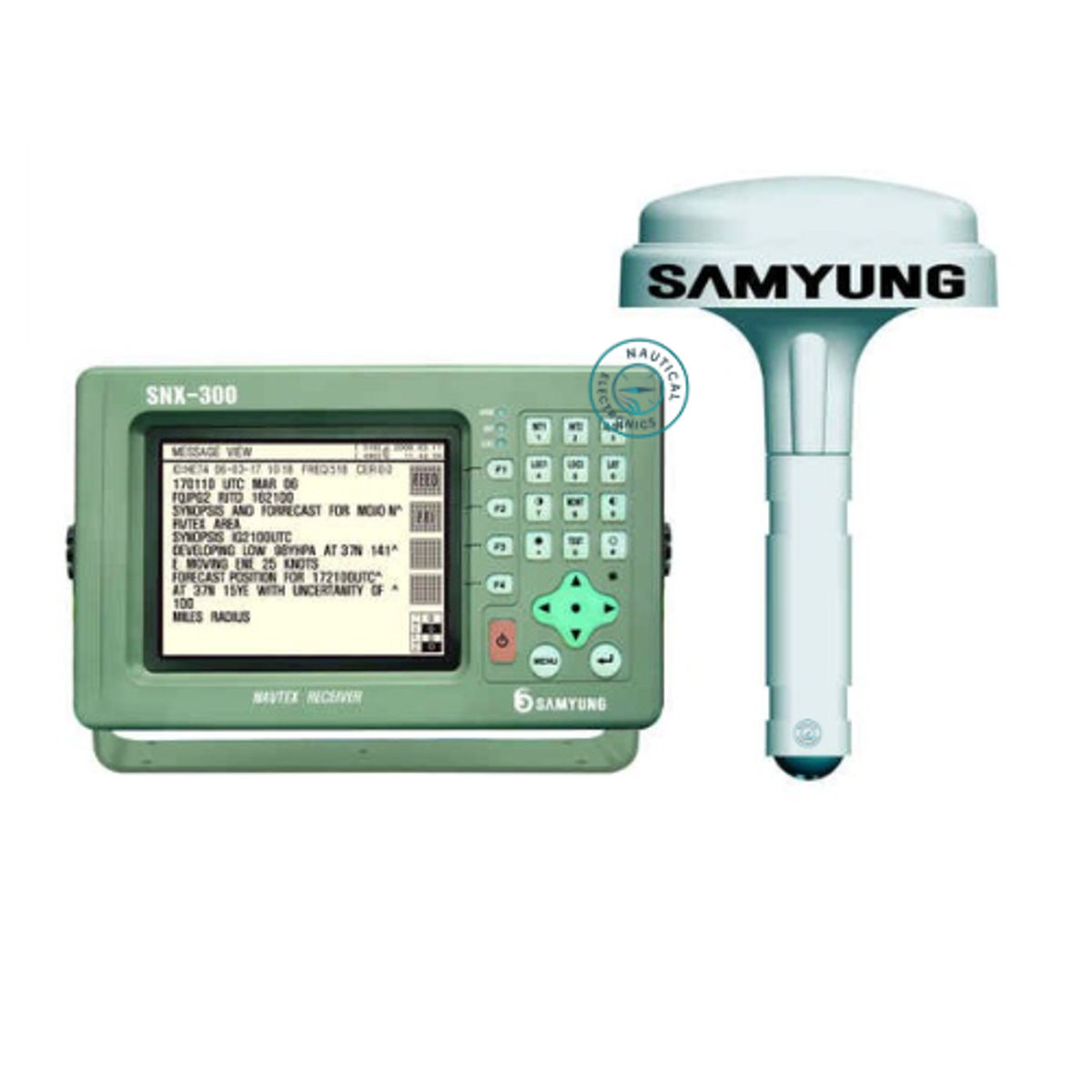

SAMYUNG SNX-300 NAVTEX Receiver
The SAMYUNG SNX-300 is a high-performance NAVTEX receiver designed for maritime safety broadcasts. It provides reliable reception across multiple frequencies with advanced display and control features, ensuring accurate navigational and meteorological information.
We can supply worldwide and provide service in all Turkish ports. Keep in touch with us.
Specifications
Receiver
-
Receiving Frequencies: 518 kHz, 490 kHz, or 4209.5 kHz
-
Modulation: F1B (Narrow Band Direct Printing)
-
Sensitivity: 2 μV e.m.f. (50 Ω), ≤ 4% error rate
-
Antenna Input: 50 Ω for NAVTEX active antenna
Display Section
-
Type: 5.7-inch LCD, 320×240 dots
-
Backlight: For LCD and keyboard
-
Dimmer Control: 10-step adjustable via keyboard
-
Contrast Control: 10-step adjustable via keyboard
Power Supply
-
Rated Voltage: DC 12/24V (10–36V)
-
Power Consumption: 10 W (at 24 V DC input)
Active Antenna (SAN-300)
-
Receiving Frequencies: 518 kHz, 490 kHz, 4209.5 kHz
-
Current Consumption: 8 V DC, 10 mA (typical)
-
Impedance: 50 Ω
Environmental Conditions
-
Operating Temperature: -15°C to +55°C
-
Storage Temperature: -25°C to +75°C
-
Relative Humidity: 95% at 40°C (without condensation)
-
Vibration: IEC 60945 compliant
