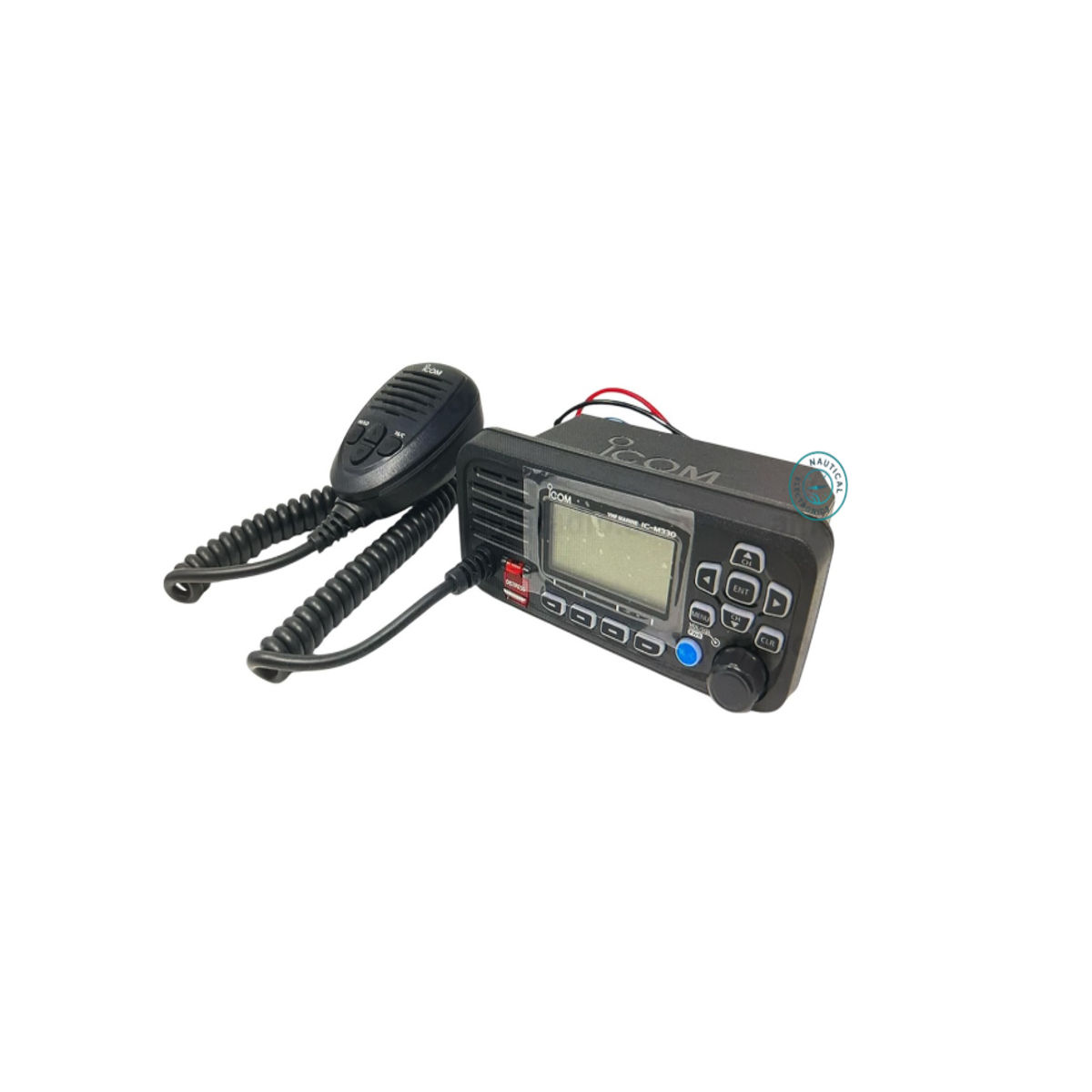

ICOM M330 GE VHF RADIO

ICOM M330 GE VHF Marine Radio Kit
Includes:

• ICOM M330 GE VHF Radio

• External GPS Module

• 1.2 m VHF Antenna

• 10 m RG58 or RG213 Coaxial Cable

• HM-235B/W Hand Microphone

• DC Power Cable

• Mounting Bracket Kit

• GPS Antenna (5 m cable)

Availability:
In stock – Worldwide delivery within 3 days.

Specifications

Frequency Range:

• TX: 156.000–162.000 MHz

• RX: 156.000–163.425 MHz

• CH70: 156.525 MHz

• Channels: INT, USA* (*varies by version)

Emission Types: 16K0G3E (FM), 16K0G2B (DSC)

Power Supply:

• 13.8 V DC nominal (10.8–15.6 V DC)

Current Drain:

• TX (25 W output): 5 A

• RX (Max. audio): 1 A

Operating Temperature: -20°C to +60°C

Antenna Impedance: 50 Ω (SO-239)

Dimensions (W×H×D): 156.5 × 66.5 × 88.2 mm (excluding projections)
Weight: Approx. 730 g

NMEA Formats:

• Input: RMC, GGA, GNS, GLL, VTG

• Output: DSC, DSE, RMC, GSA, GSV

Transmitter:

• Output Power: 25 W / 1 W

• Max Frequency Deviation: ±5.0 kHz

• Frequency Stability: < ±0.75 kHz

• Spurious Emissions: < 0.25 μW

Receiver:

• Sensitivity: Main: -5 dBμ emf (20 dB SINAD), DSC: -5 dBμ emf (1% BER)

• Squelch Sensitivity: < -2 dBμ emf

• Adjacent Channel Selectivity: Main > 70 dB, DSC > 73 dBμ emf (1% BER)

• Spurious Response: Main > 70 dB, DSC > 73 dBμ emf (1% BER)

• Intermodulation: Main > 70 dB, DSC > 68 dBμ emf (1% BER)

• Hum & Noise: > 40 dB

• Audio Output: > 2 W (Internal SP), > 4.5 W (External SP)

Waterproof Rating: IPX7 (1 meter depth for 30 minutes)

Contact us today for orders, inquiries, or technical support.
We provide full marine communication solutions and service at all Turkish ports.
