NSR NPT-100 THERMAL PRINTER

DEVICE: THERMAL PRINTER

BRAND: NSR

TYPE: NPT-100

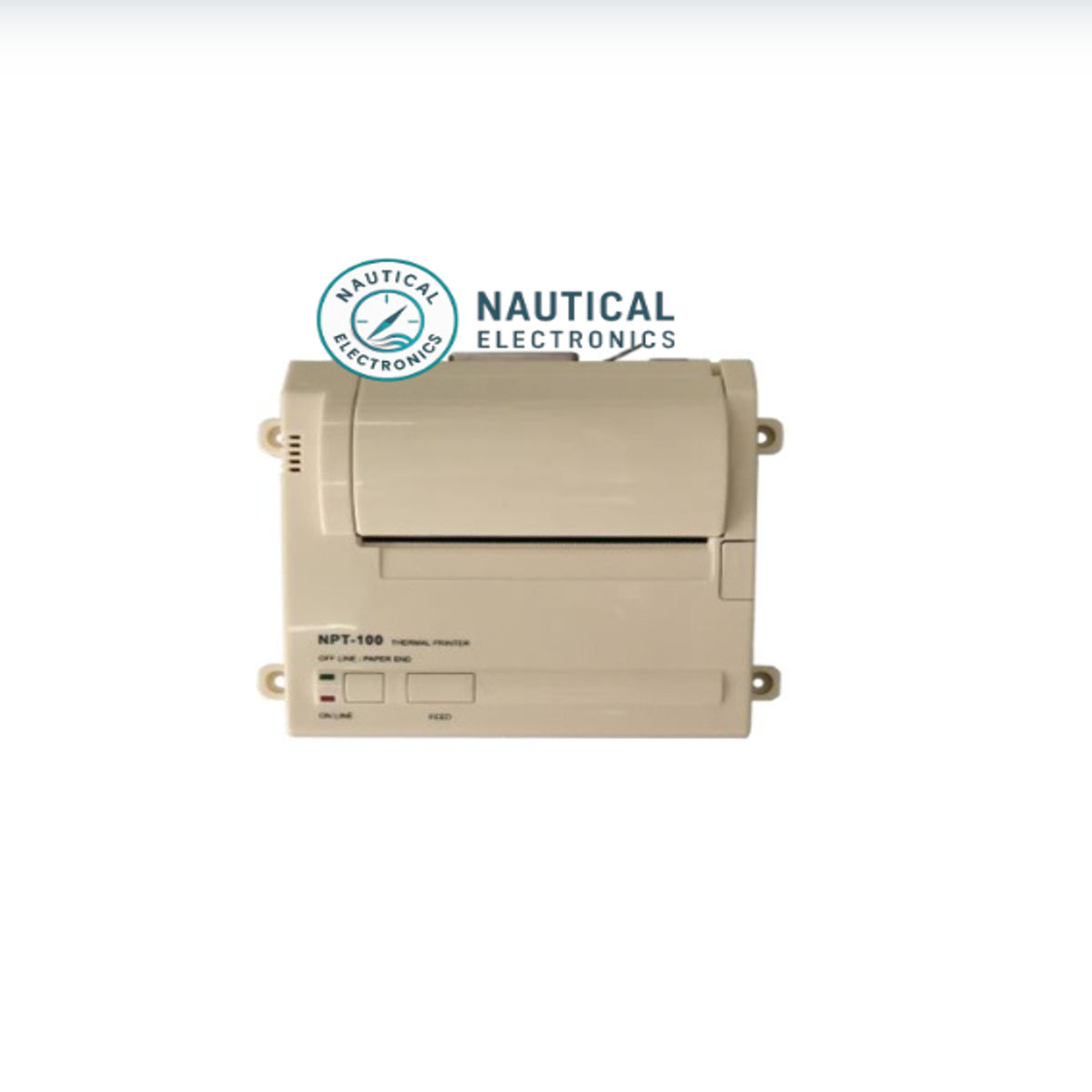

NSR NPT-100 Thermal Printer

Overview

The NSR NPT-100 is a compact and reliable thermal dot-line printer designed specifically for maritime applications. It is ideal for printing NAVTEX messages, DSC reports, and other maritime communication data. With its high-speed printing capabilities, clear output, and durable construction, the NPT-100 ensures efficient and reliable operation in demanding marine environments.

Key Features

• High-Speed Printing: Delivers fast and efficient printing for time-sensitive maritime data.

• Clear Output: Produces high-quality, easy-to-read printouts, ensuring accurate documentation.

• Long-Life Printhead: Equipped with a Seiko thermal printhead rated for over 100 million pulses, reducing maintenance costs.

• Compact Design: Space-saving dimensions (66 × 180 × 210 mm) make it suitable for installations with limited space.

• Versatile Connectivity: Offers both RS232 serial and parallel interfaces for flexible integration with various marine electronic devices.

• Wide Compatibility: Compatible with NAVTEX receivers, Inmarsat-C systems, and other marine communication equipment.

• Environmental Durability: Operates effectively in temperatures ranging from 0°C to 40°C and can be stored between -20°C and 60°C.

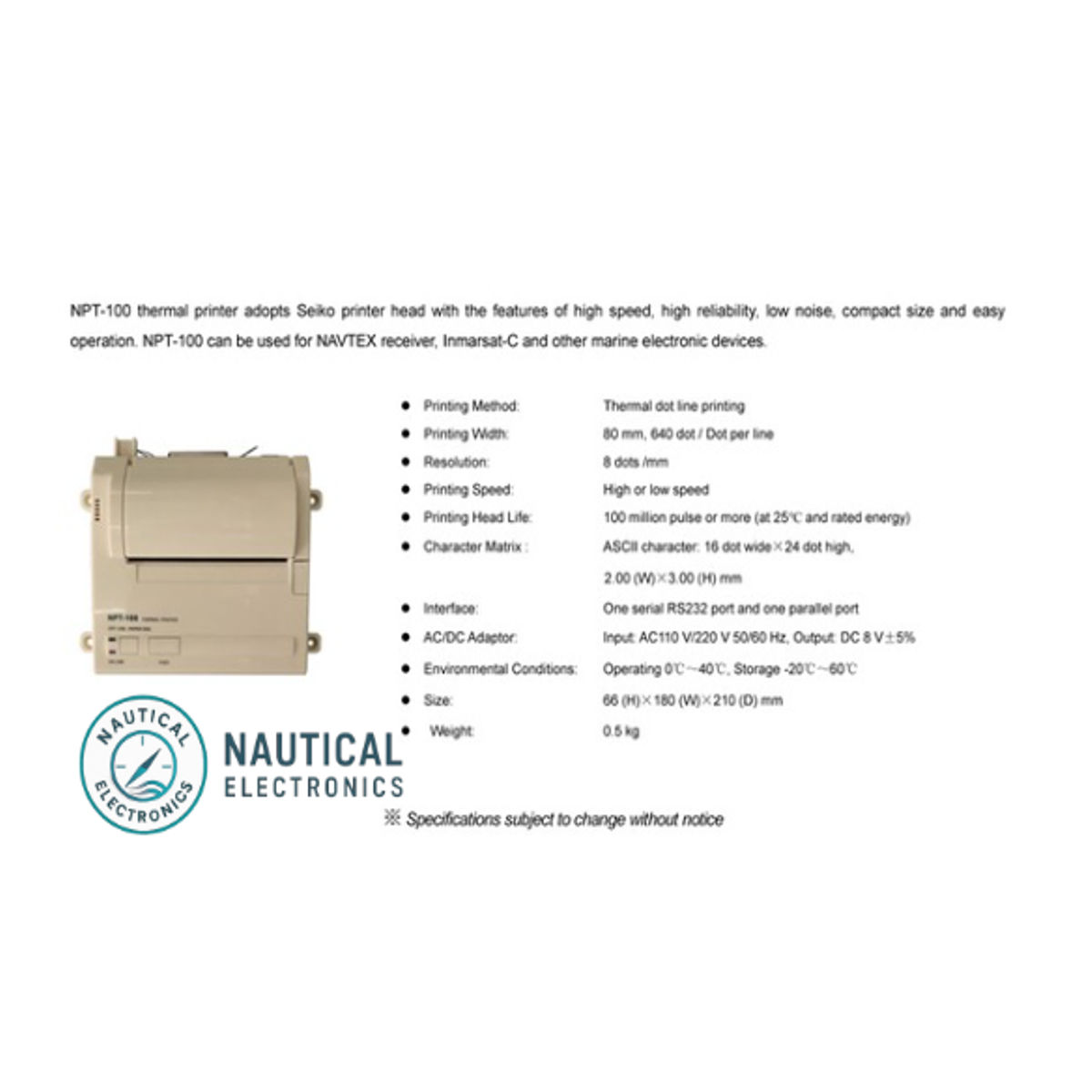

Technical Specifications

• Printing Method: Thermal dot-line printing

• Printing Width: 80 mm (640 dots per line)

• Resolution: 8 dots/mm

• Printing Speed: High or low-speed settings available

• Character Matrix: 16 × 24 dots (2.00 mm × 3.00 mm)

• Interfaces: One RS232 serial port and one parallel port

• Power Supply: AC110V/220V 50-60Hz input; DC8V±5% output

• Dimensions: 66 (H) × 180 (W) × 210 (D) mm

• Weight: Approximately 0.5 kg

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -20°C to 60°C

Applications

• NAVTEX Receivers: Printing of maritime safety information and weather broadcasts.

• DSC Systems: Documentation of Digital Selective Calling messages.

• Inmarsat-C Systems: Printing of satellite communication data.

• Other Marine Electronics: Compatible with various marine communication devices requiring print output.
