Marine Device : VHF
Manufacturer : SAILOR
Type / Model : RT-5022

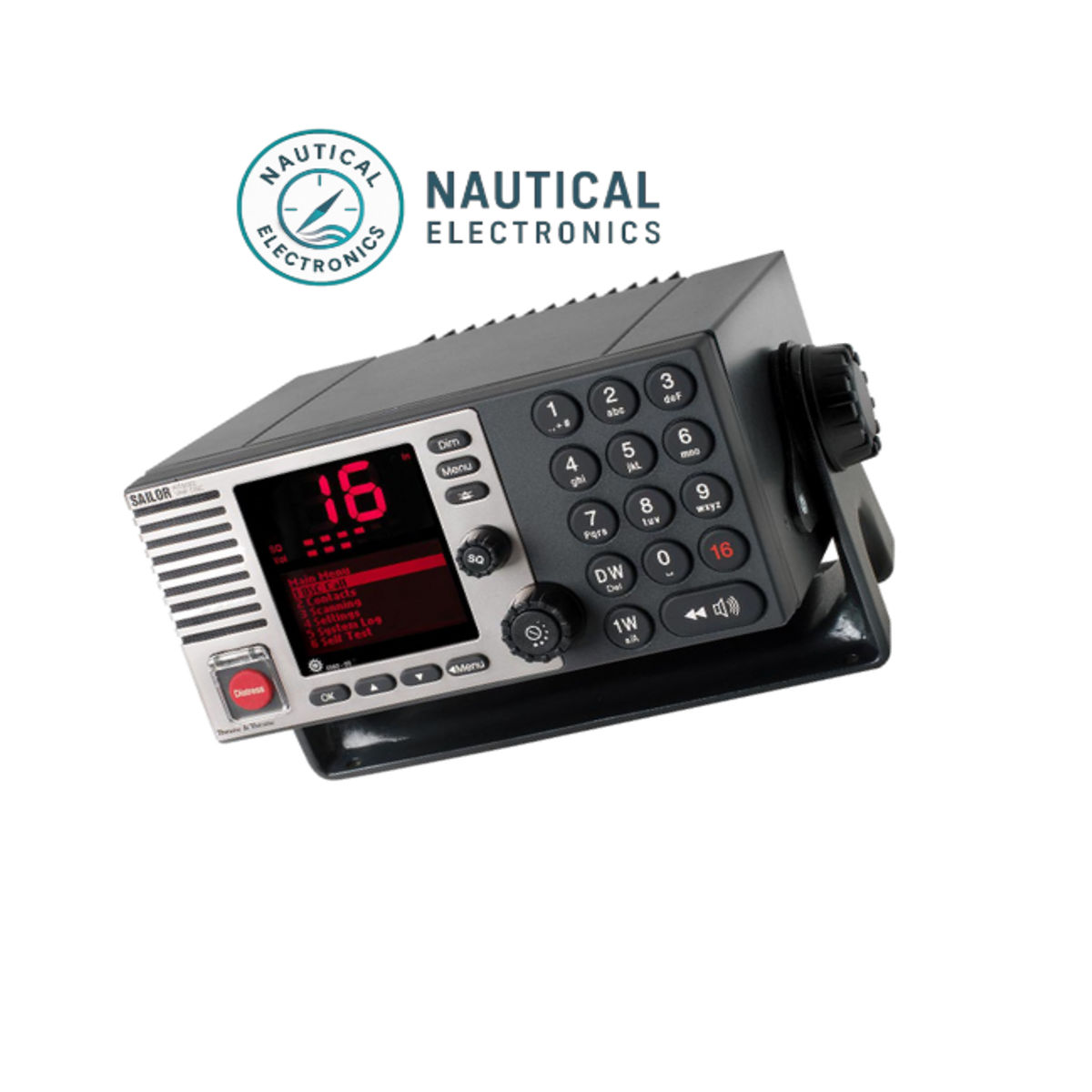

SAILOR RT‑5022 VHF DSC
Overview
The SAILOR RT‑5022 is a professional, Class‑A marine VHF radiotelephone with built‑in DSC (Digital Selective Calling), designed to deliver robust communications for vessels operating under GMDSS requirements. It combines high‑performance transmitter/receiver hardware with intuitive user interface features and is suitable for mounting on the bridge, flush or bracket‑mounted.
Key Features
-
Built‑in DSC Class‑A functionality, meeting ITU and IMO standards for maritime safety communications.
-
Unique Replay Function: allows the last 90 seconds of incoming transmissions to be replayed — ensuring no missed messages.
-

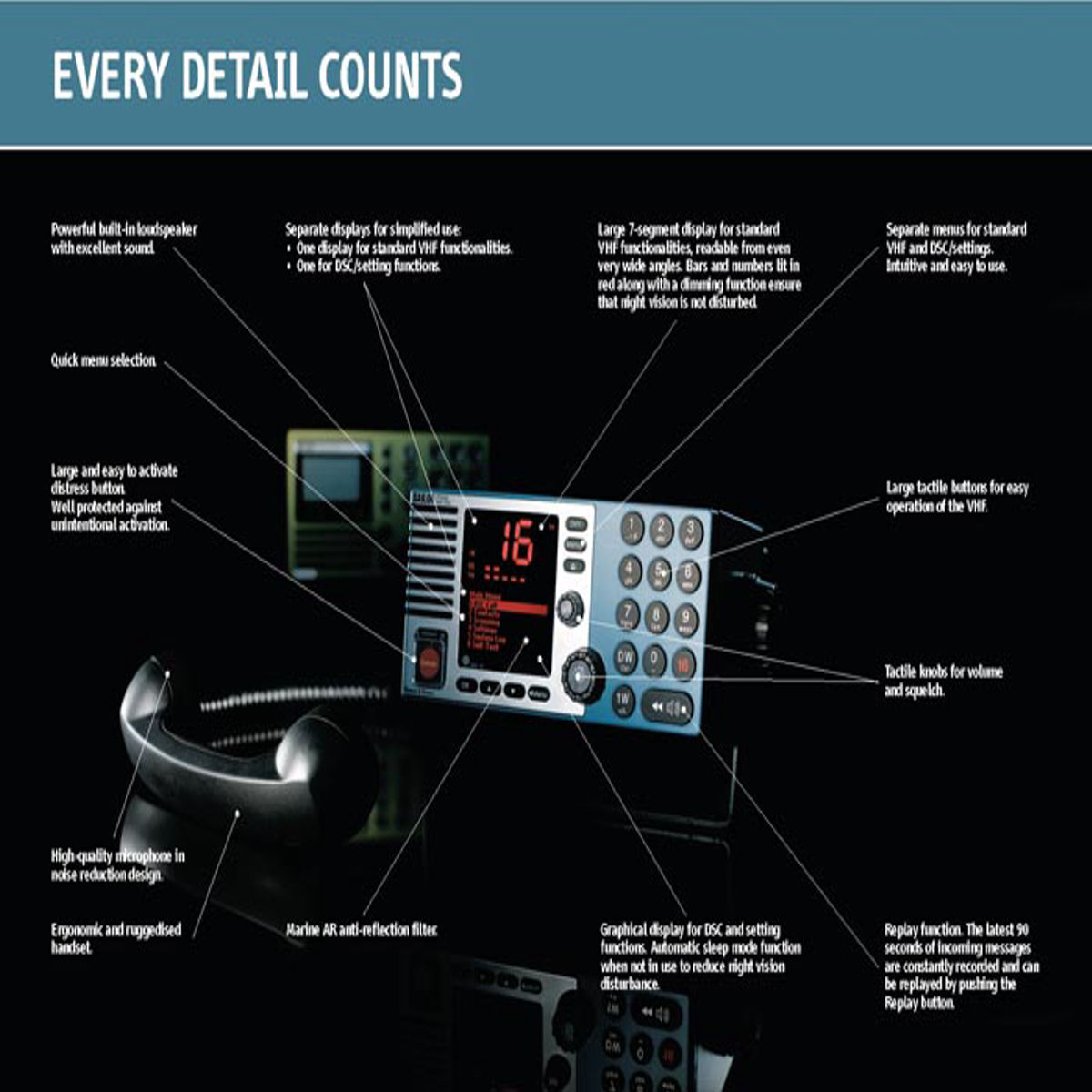

Dual displays: one 7‑segment display for essential VHF functions and a separate graphic LCD for DSC/settings, including a sleep‑mode for low light/bridge night vision friendliness.
-
Powerful built‑in 5 W loudspeaker and a rugged ergonomic handset (HS5001, for example) for clear audio in marine environments.
-
Flexible installation: supports flush or bracket mounting, 12‑24 V DC supply range (10.8–31.2 V), channel spacing options (25 kHz / 12.5 kHz), and full channel bank memory.
-
Extensive DSC capabilities: Address book for vessels/coast stations, dual‑watch and scanning functions, and compatibility with remote control units.

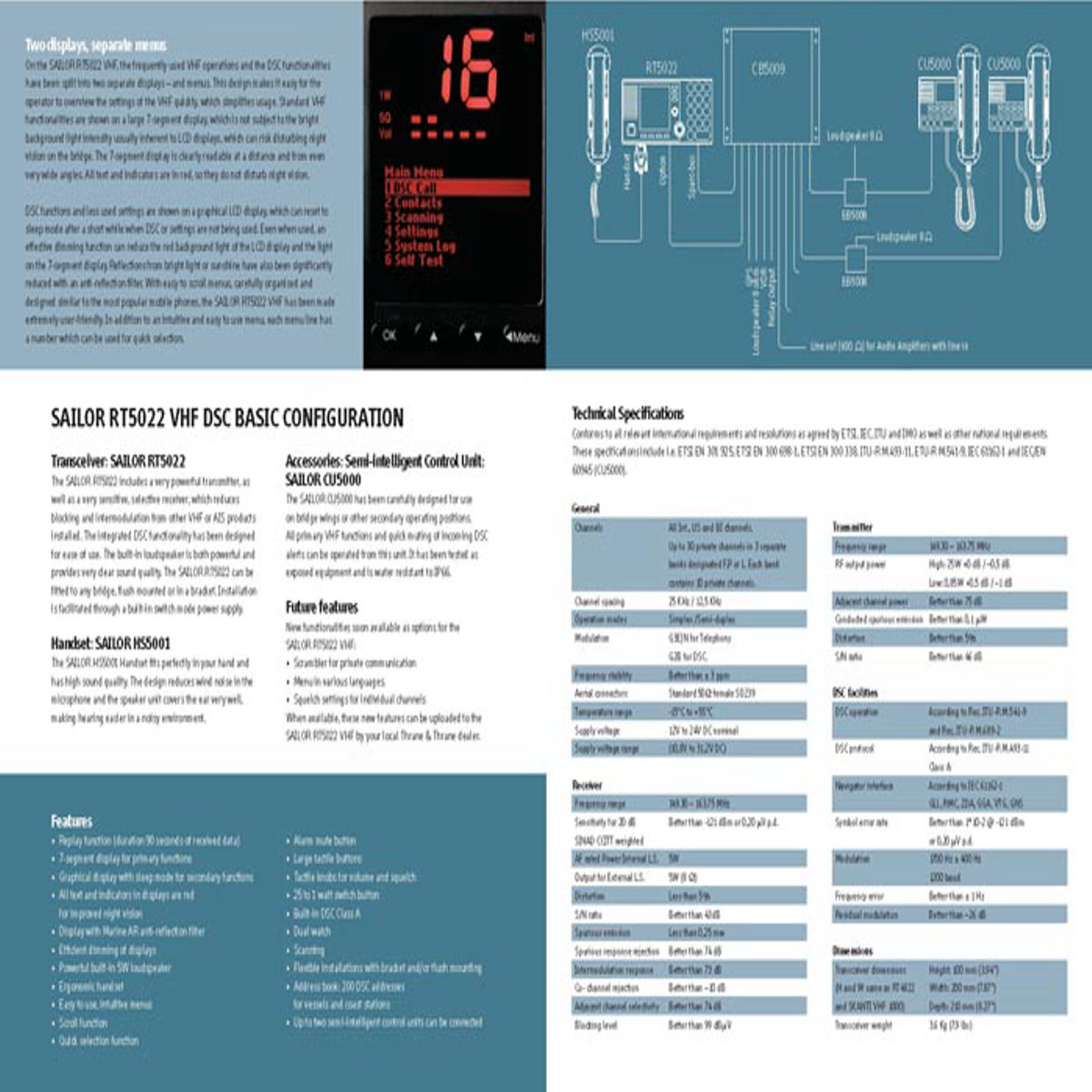

Typical Technical Specifications
-
Transmit frequency range: ~149.30 – 163.75 MHz (VHF marine band)
-
RF output power: 25 W (High) / 0.85 W (Low)
-
Receiver sensitivity: Better than –121 dBm or 0.20 µV p.d. (20 dB SINAD)
-
Supply voltage: 12–24 V DC nominal; range 10.8–31.2 V DC
-
Operating temperature: –15 °C to +55 °C
-
Dimensions: Transceiver approx. 100 mm height × 200 mm width × 210 mm depth; weight ~3.6 kg
-
Additional: Standard 50 Ω female SO‑239 antenna connector; channel banks: up to 30 private channels in 3 banks F, P or L (10 per bank)
Why Choose It
-
Provides reliable, GMDSS‑compliant VHF communications for professional maritime operations.
-
User‑friendly interface with clear dual displays, replay function and intuitive controls—minimizing operator errors even in high stress situations.
-
Designed for durability in the maritime environment, with high performance in audio, reception, and ease of installation.
-
Good upgrade or replacement option for vessels needing robust VHF/DSC capability with modern features like replay and dual‑watch.
