DEVICE: WEATHERFAX
BRAND: FURUNO
TYPE: FAX 207 DFAX ( Dual Function Facsmile Receiver / WeatherFax )

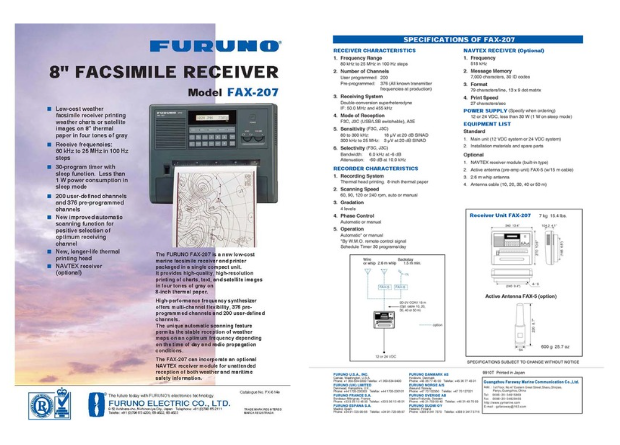

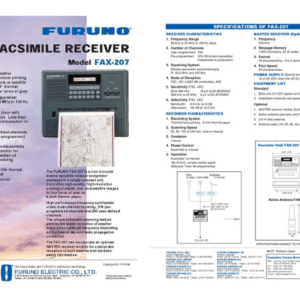

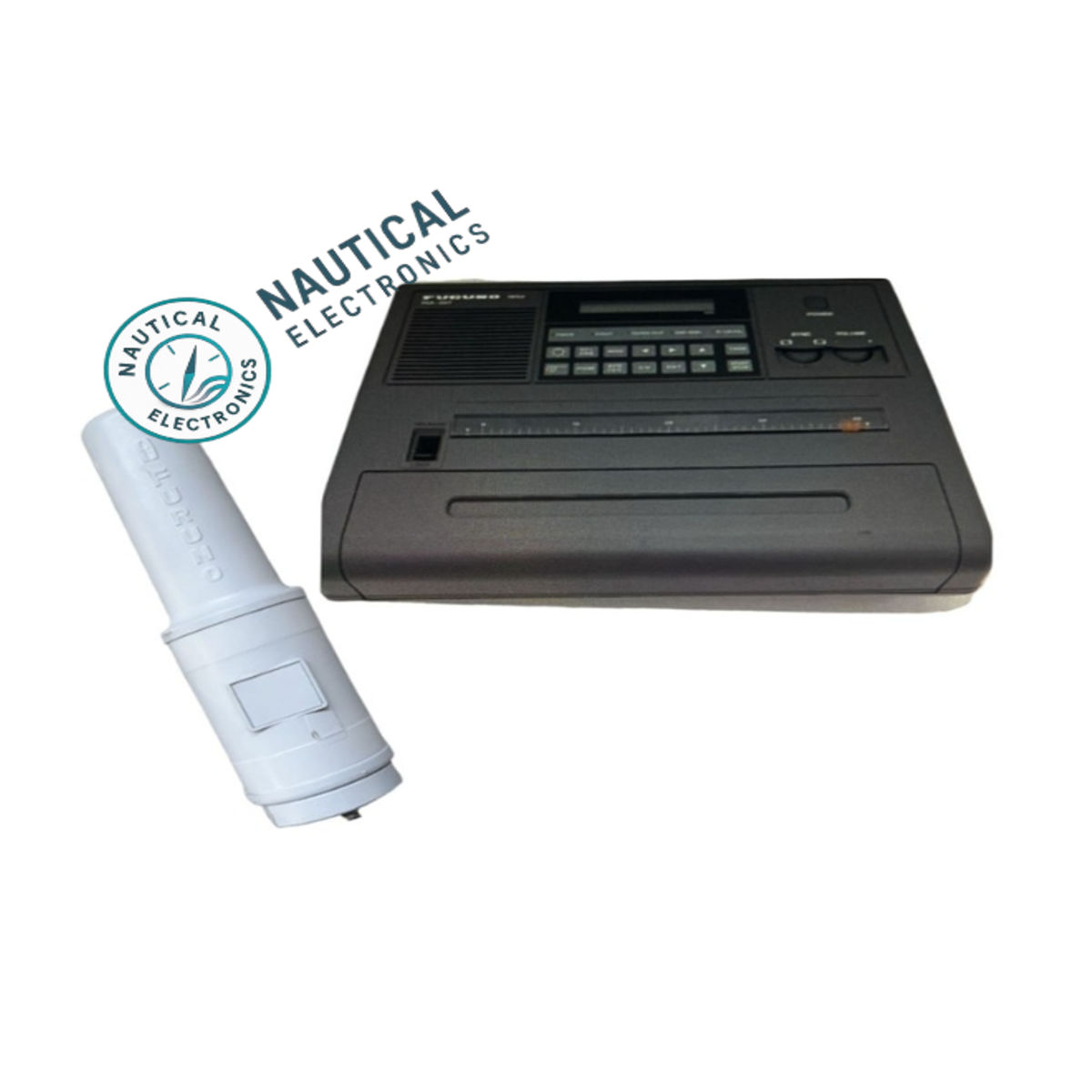

Furuno FAX-207 Weatherfax Receiver (DFAX)
Overview
The Furuno FAX-207 is a compact, single-unit marine weather facsimile receiver that combines chart printing and optional NAVTEX reception. Engineered for reliability and clarity, it delivers high-resolution weather charts, satellite images, and safety messages using thermal printing on 8-inch paper.
Key Features
-
High-Resolution Printing
Prints charts, text, and satellite images with four shades of gray on 8-inch thermal paper for excellent readability. -
Multi-Band Reception
Covers 80 kHz to 25 MHz with fine 100 Hz tuning steps. Includes 376 pre-programmed channels plus space for 200 user-defined frequencies -
Smart Auto-Scanning
Automatically selects the optimal frequency based on signal and propagation conditions—ensuring consistent reception quality -
Flexible Recording Options
Features selectable scan speeds (60, 90, 120, 240 rpm), automatic/manual phase control, and scheduling for unattended operation -
Optional NAVTEX Capability
Can include a built-in NAVTEX receiver module for uninterrupted reception of Both weather and maritime safety alerts -
Low Power with Sleep Mode
Operates on 12 or 24 VDC with less than 30 W consumption during active use and drops to under 1 W when in sleep mode -
Durable Thermal Printer
Utilizes a long-life thermal print head that delivers clean, carbon-dust-free output with minimal maintenance needs
Applications
-
Weather Monitoring: Perfect for receiving weather charts and satellite imagery at sea.
-
Safety Updates: With optional NAVTEX, allows automatic receipt of alerts, forecasts, and navigational warnings.
-
Bridge Integration: Compact design fits easily on navigation desks while offering timer-based auto-recording.
