DEVICE: VHF RADIO
BRAND: NSR
TYPE: NVR-3000

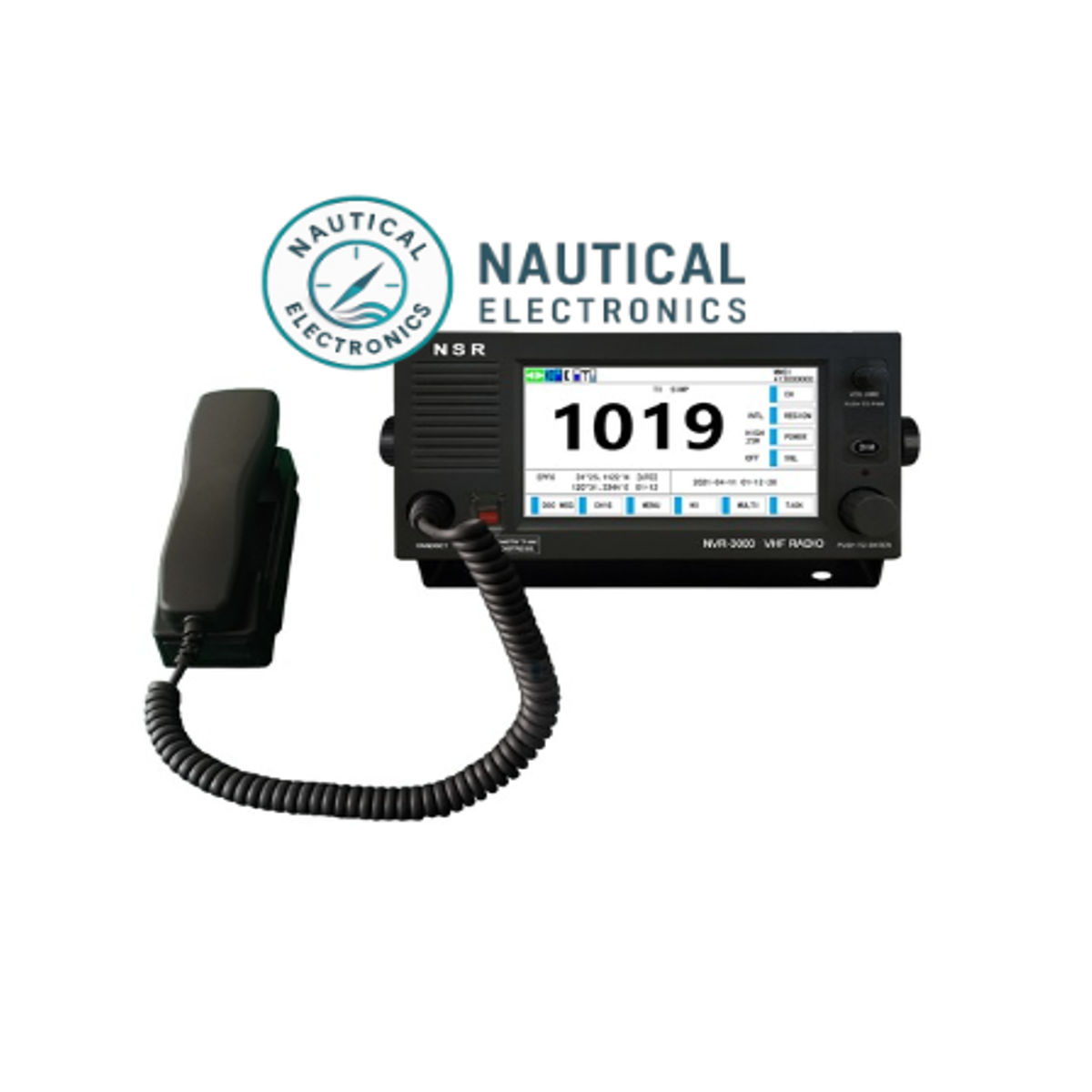

NSR NVR-3000 VHF Radio (GMDSS Class A DSC)
Overview
The NSR NVR-3000 is an advanced GMDSS-compliant Class A VHF radiotelephone designed for robust marine communication. It seamlessly integrates voice and Digital Selective Calling (DSC) functions, ensuring full coverage for SOLAS-required GMDSS areas A1, A2, and A3
SPECIFICATIONS
| TX Frequency: | 156.025～157.425MHz |
| RX Frequency: | 156.050～163.275MHz |
| Working Channel: | ITU |
| DSC Watch CH: | CH70 |
| TX Power: | 25W(high)/1W(low) |
| RX Sensitivity: | ≤2μV(SINAD=20dB) |
| Display: | 7 inch，color LCD，touch screen |
| Interface: | |
| GNNS Input: | RS422，4800bps |
| VDR Output: | 600 Ω balanced |
| BAM/INS I/O: | RS422,4800bps |
| Printer I/O: | RS232,4800bps |
| Power Supply: | 24 VDC (max 4A) |

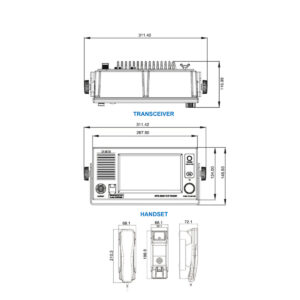

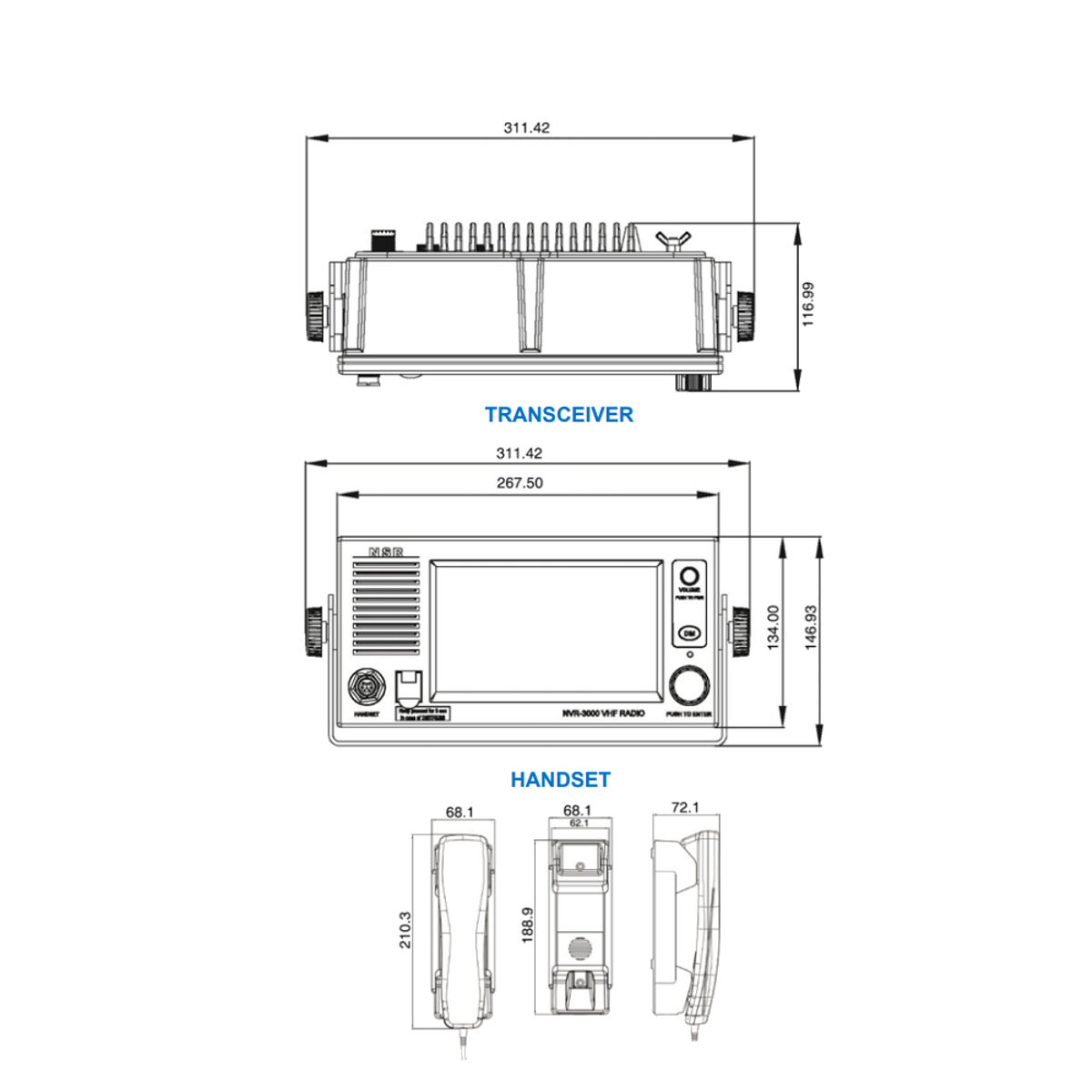

| Size: | 146.9 (H)×311.4 (W)×117 (D) mm (Transceiver) |
| Weight: | 3kg |
| IP Grade: | IP22: Transceiver, Handset；IP66: Antenna |
FEATURES
- NVR-3000 VHF RADIO (GMDSS) is a high-performance VHF device, capable of voice communication and DSC (digital selective calling) facilities as well.
- Conforming to Class A standard set for VHF DSC by ITU and IMO regulation, NVR-3000 can be part of onboard GMDSS package for vessels of A1, A2 or A3.
- Interfaces to VDR and BAM system/INS are available on NVR-3000.

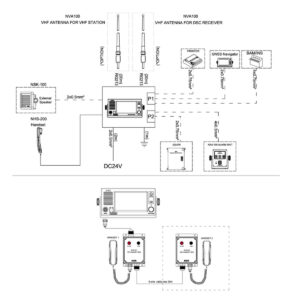

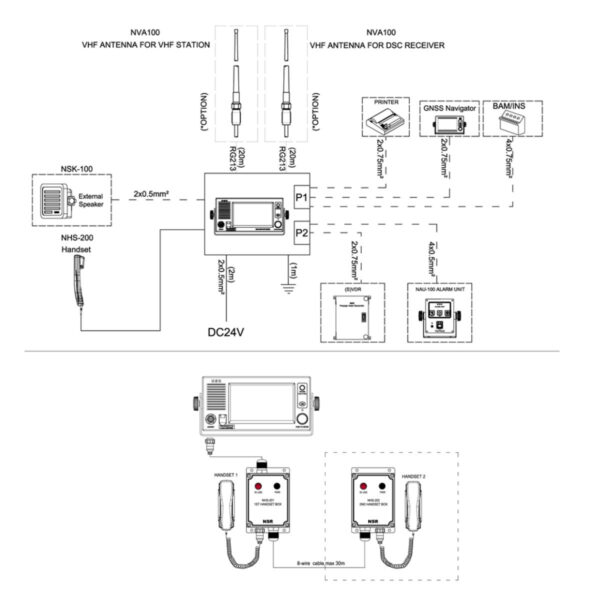

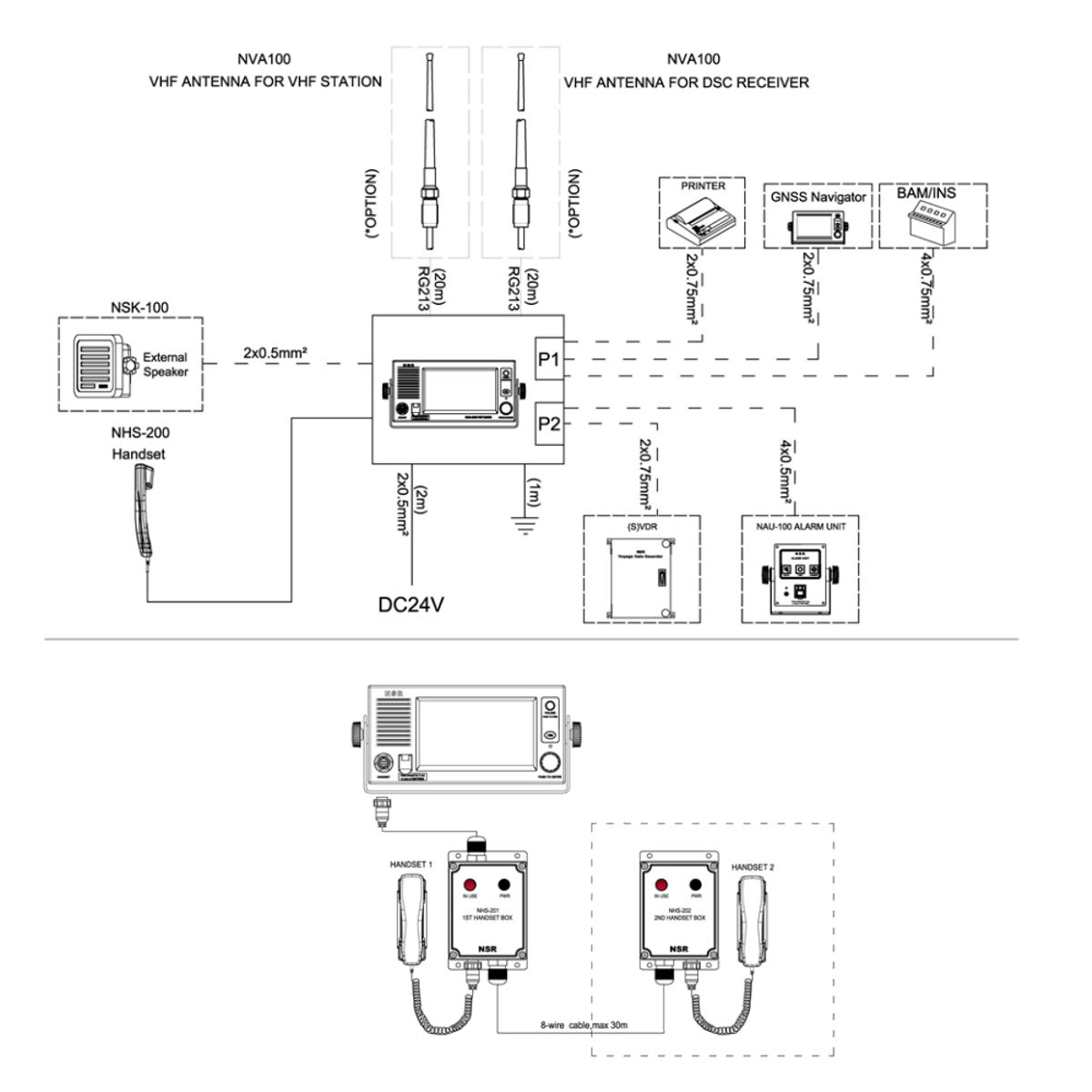

EQUIPMENT LIST
- STANDARD
– Transceiver 1 pc
– Handset 1 pc
– Accessories 1 set - OPTIONS
– AC/DC PSU 1 pc
– Alarm Unit 1 pc
– External speaker 1 pc
– 2nd Handset（with junction boxes） 1 set
– VHF Antenna 2 pcs
– Flush Mount Bracket 1 pc
APPROVALS AND RULES
- NVR-3000 conforms to the regulations of ITU-R M.493-15, IMO MSC.302 (87), IMO MSC.1/Circ.1460/Rev.3, IEC 61097-3, IEC 61097-7, IEC 62923-1, IEC 62923-2 and IEC 61162-1.
